EFB Elektronik jakolevy 24 SC-simplex mini-seinäjakajalle 53605.1V2

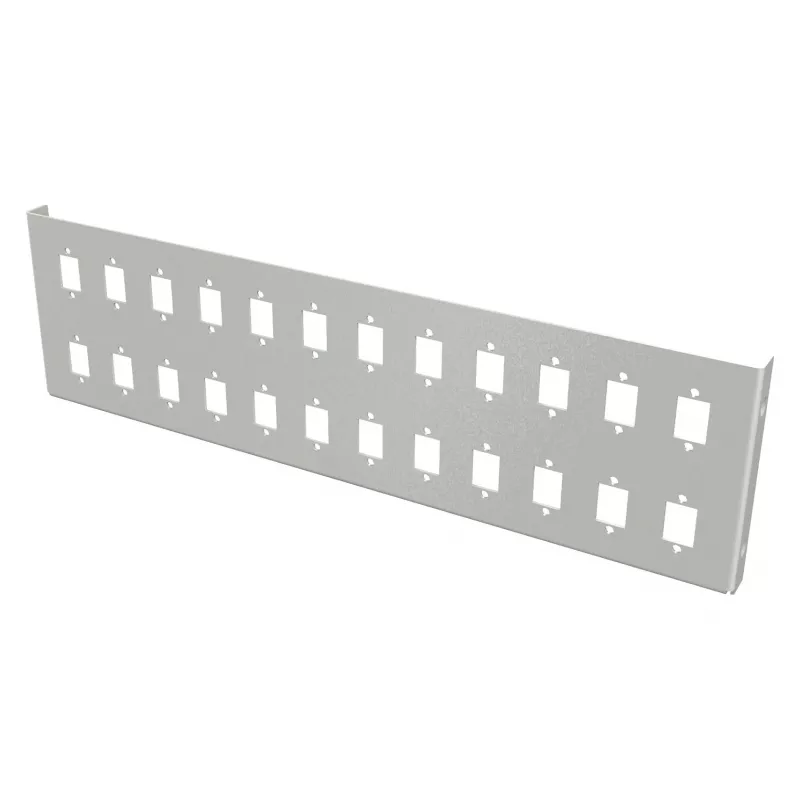

The EFB Elektronik Distribution Plate 24 SC-Simplex is a high-quality fiber optic patch panel designed for use with the EFB Mini Wall Distributor 53605.1V2. This modular insert plate provides 24 SC simplex ports with ceramic adapter sleeves, ensuring reliable and low-loss connections for both singlemode and multimode fibers. The plate is pre-assembled with adapters and features a powder-coated steel construction in light grey (RAL 7035), offering durability and easy integration into your network infrastructure.

Advantages

This distribution plate simplifies fiber optic patching and distribution within a compact enclosure. The pre-assembled SC simplex adapters save installation time and ensure consistent performance. With ceramic sleeves, the adapters provide excellent durability and low insertion loss, supporting high-speed data transmission. The plate is compatible with EFB's mini wall distributor, making it an ideal solution for FTTH, LAN, and telecom applications.

Suitable for

• Fiber optic patching and distribution in mini wall distributors
• FTTH (Fiber to the Home) installations
• Local area networks (LAN) and data centers
• Telecommunication and CATV networks

Key specifications

• Product Type: Fiber Optic Distribution Plate
• Connector Type: SC Simplex
• Number of Ports: 24
• Adapter Sleeve Material: Ceramic
• Fiber Compatibility: Singlemode (OS2), Multimode (OM2, OM3, OM4)
• Material: Steel
• Surface Finish: Powder-coated
• Color: Light Grey (RAL 7035)
• Compatibility: EFB Elektronik Mini Wall Distributor 53605.1V2
• Mounting Type: Internal
• Pre-assembled: Yes, with adapters
• Standard: IEC 61754-4
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Typical Insertion Loss: < 0.3 dB
• Typical Return Loss: > 50 dB
• Durability: 500 mating cycles
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with EFB Mini Wall Distributor 53605.1V2 and high-quality SC simplex patch cables. Ensure proper fiber cleaning before insertion to maintain low insertion loss.
