EFB Elektronik jatkoskotelo SC OM4 24 pigtailia / 12 liitintä

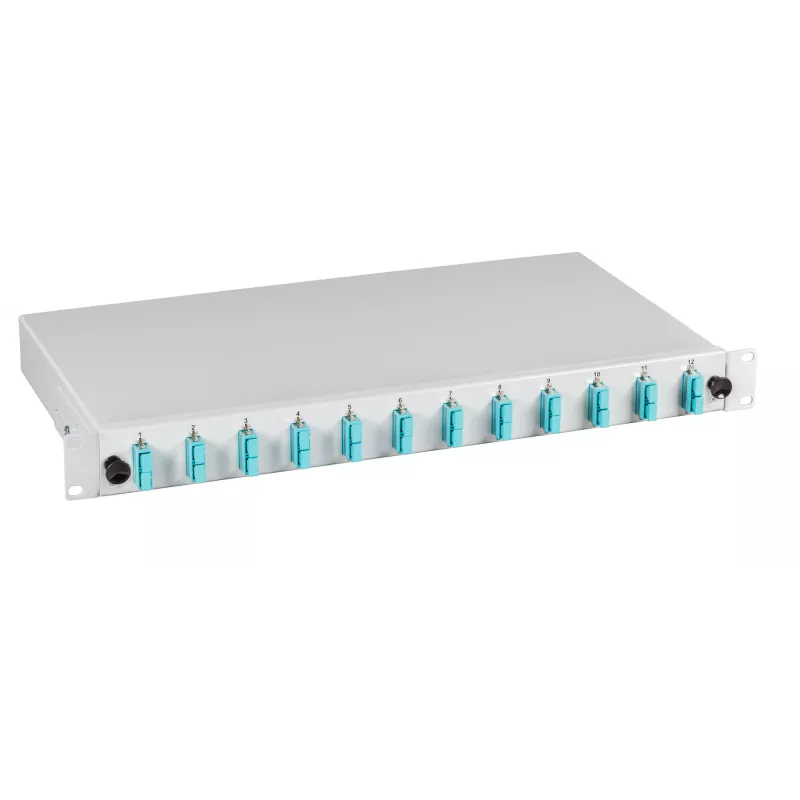

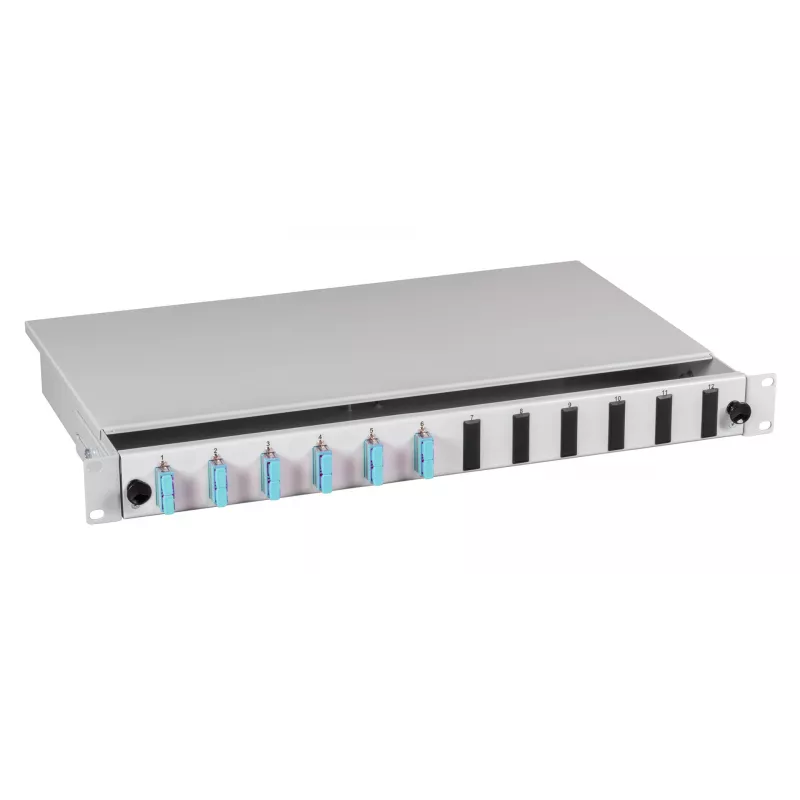

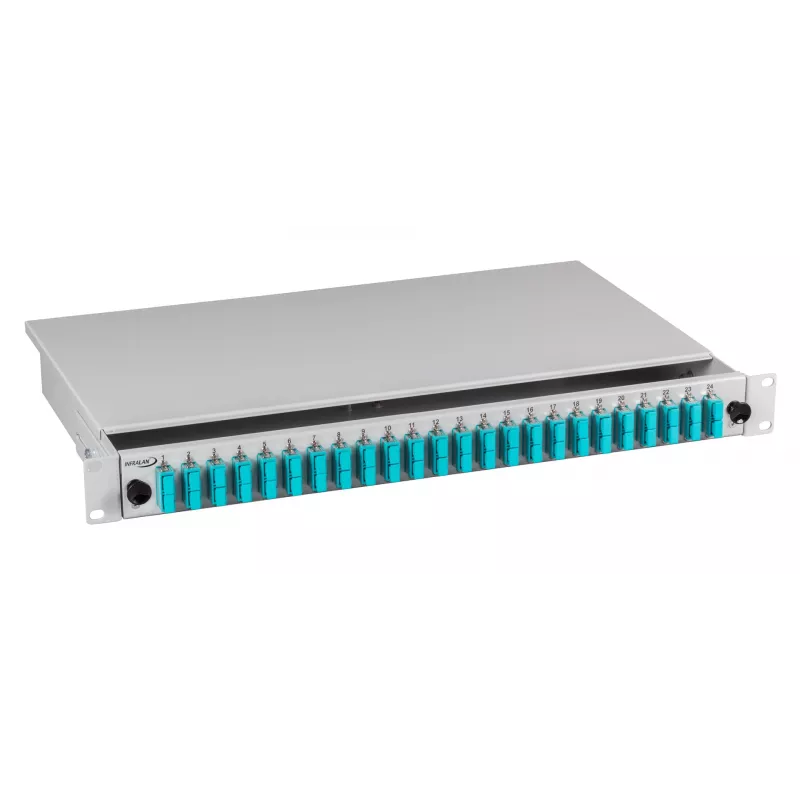

The EFB Elektronik BA71203.24OM4 Splice Box is a high-quality fiber optic distribution unit designed for professional network infrastructure. It features a sliding/extractable housing for easy access and is pre-equipped with 24 SC pigtails (OM4 multimode) and 12 SC duplex couplings, providing a ready-to-use solution for splicing and patching in data centers, LAN, and telecommunications applications.

Advantages

This splice box offers quick installation and maintenance thanks to its pre-terminated pigtails and extractable design. The 19-inch metal housing ensures durability and compatibility with standard racks. With OM4 grade fiber, it supports high-bandwidth applications over longer distances.

Suitable for

• Data centers requiring high-density fiber management
• Local area networks (LAN) with multimode fiber infrastructure
• Telecommunications distribution points
• FTTH and enterprise cabling systems

Key specifications

• Product Type: Fiber Optic Splice Box / Distribution Unit
• Fiber Type: Multimode OM4 (50/125 µm)
• Connector Type: SC (pigtails and adapters)
• Number of Pigtails: 24 (pre-assembled)
• Number of Adapters: 12 (SC duplex)
• Housing: 19-inch, metal, sliding/extractable
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Application: Rack mount splice box

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper fiber cleaning before connection. This splice box is ideal for structured cabling systems requiring reliable and organized fiber termination.
