EFB Elektronik kaapeliläpivienti M20, PA, harmaa RAL7035 sis. vastamutteri

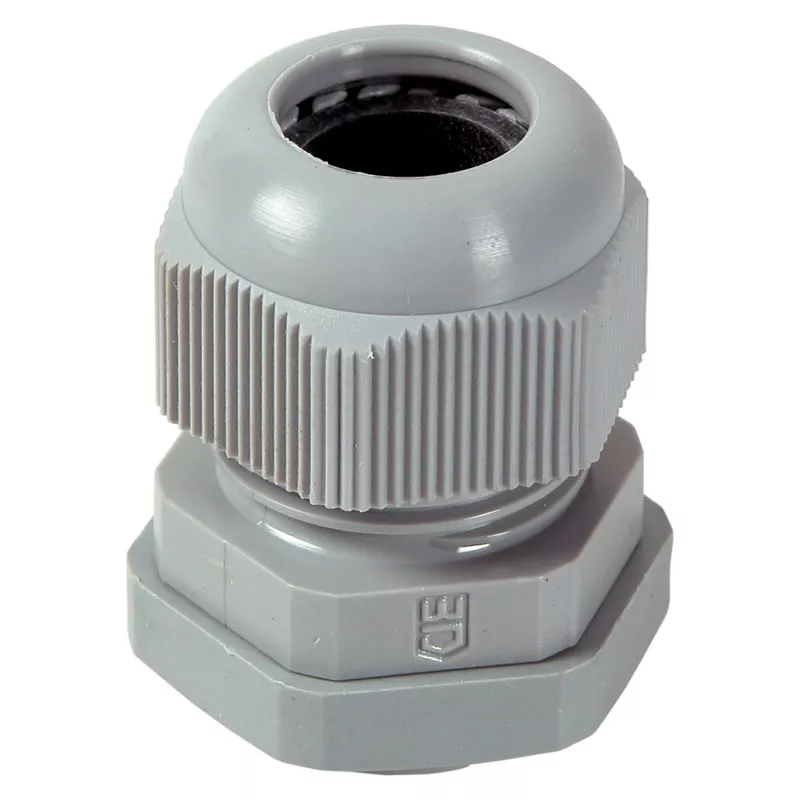

The EFB Elektronik Cable Gland M20 is a high-quality industrial cable entry solution designed for reliable sealing and strain relief. Made from durable polyamide (PA6) with an EPDM seal, this gland provides IP68 protection up to 5 bar, making it suitable for demanding environments. The grey RAL7035 color ensures a neutral appearance for control cabinets and electrical installations.

Advantages

Robust polyamide construction offers excellent chemical resistance and mechanical strength. The integrated EPDM seal ensures a tight fit around cables, preventing dust and moisture ingress. Halogen-free and UV-resistant, this gland is safe for use in sensitive areas and outdoor applications. Easy installation with standard wrench sizes.

Suitable for

• Industrial electrical installations
• Control cabinets and junction boxes
• Automation and machinery
• Outdoor and harsh environment applications

Key specifications

• Thread: Metric M20 x 1.5
• Cable diameter range: 6 - 12 mm
• Material: Polyamide (PA6), EPDM seal
• Color: Grey RAL7035
• Protection class: IP68 (up to 5 bar)
• Operating temperature (static): -40°C to +100°C
• Operating temperature (dynamic): -20°C to +80°C
• Flammability rating: UL94-V2
• Halogen-free: Yes
• UV resistant: Yes
• Wrench size (body and locknut): SW24
• Thread length: approx. 9 mm
• Included accessories: Locknut (Gegenmutter)
• Standard compliance: EN 60529

Recommendations

For optimal sealing, ensure the cable diameter is within the specified range and tighten the gland to the recommended torque. Use with appropriate locknut for secure mounting.
