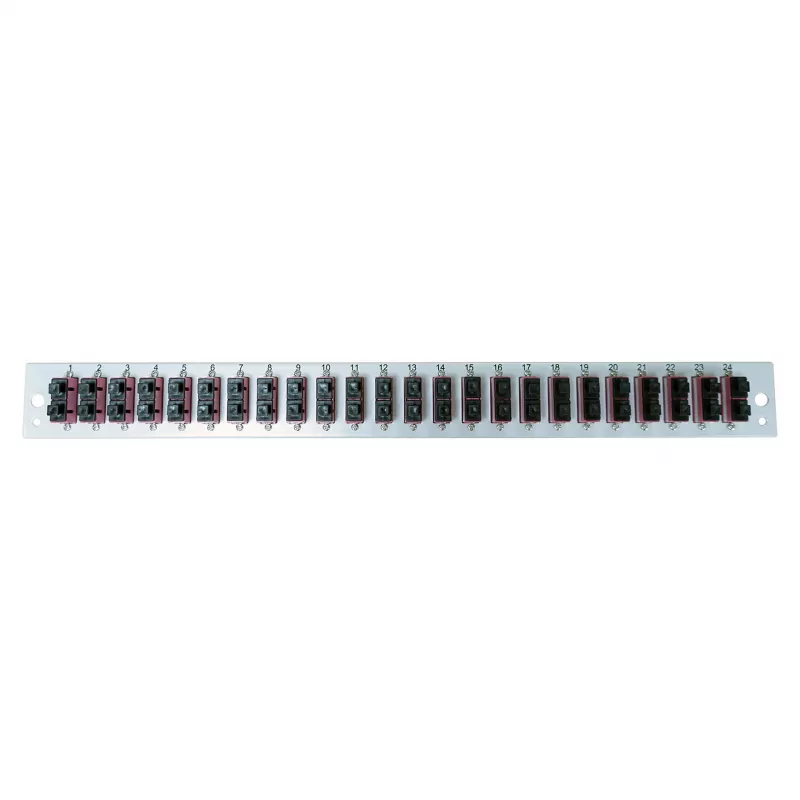

EFB Elektronik koottu etupaneeli 24 x SC duplex -liittimellä OM4 pystysuora, musta

The EFB Elektronik SB-FP-S-24SC-D-V-OM4 is a high-quality populated front panel designed for fiber optic patch panel integration. It features 24 SC Duplex couplers in OM4 multimode grade, arranged vertically, and finished in a durable black powder-coated sheet steel. This panel is ideal for structured cabling environments requiring reliable, high-density fiber connections.

Advantages

Pre-assembled with 24 SC Duplex OM4 couplers for quick installation. Vertical orientation saves rack space. Zirconia ceramic ferrules ensure low insertion loss (<0.3 dB) and high return loss (>35 dB). Integrated dust caps protect connectors when not in use. RoHS compliant for environmental safety.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) and storage area networks (SAN)

Key specifications

• Product Type: Populated Front Panel
• Connector Type: SC Duplex
• Number of Ports: 24
• Fiber Optic Mode: Multimode
• Fiber Optic Grade: OM4
• Coupling Orientation: Vertical
• Colour: Black
• Connector Ferrule Material: Zirconia Ceramic
• Panel Material: Sheet Steel (Powder-coated)
• Mounting Type: Modular
• Typical Insertion Loss: <0.3 dB
• Typical Return Loss: >35 dB
• Dust Protection: Integrated Dust Caps
• Environmental Compliance: RoHS Compliant
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C

Recommendations

For optimal performance, pair this panel with compatible EFB Elektronik patch panel enclosures and OM4 patch cables. Ensure proper cable management to maintain bend radius and minimize signal loss.
