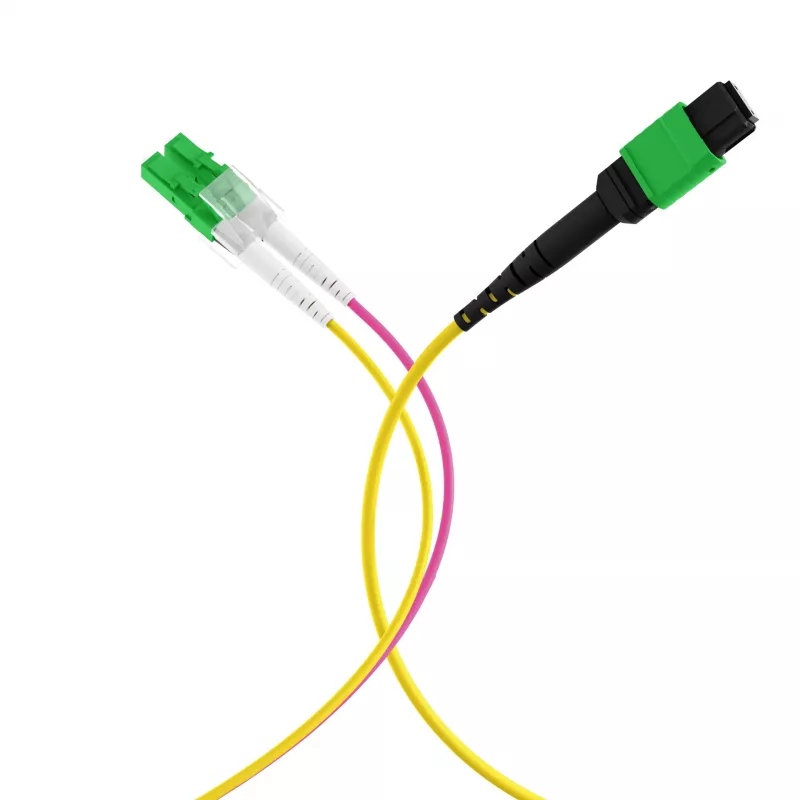

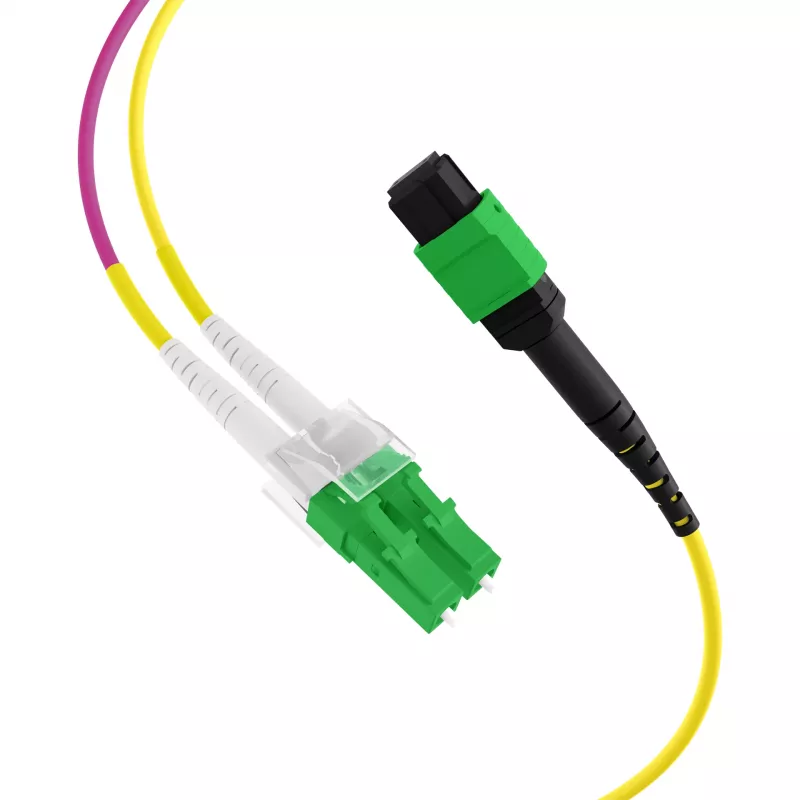

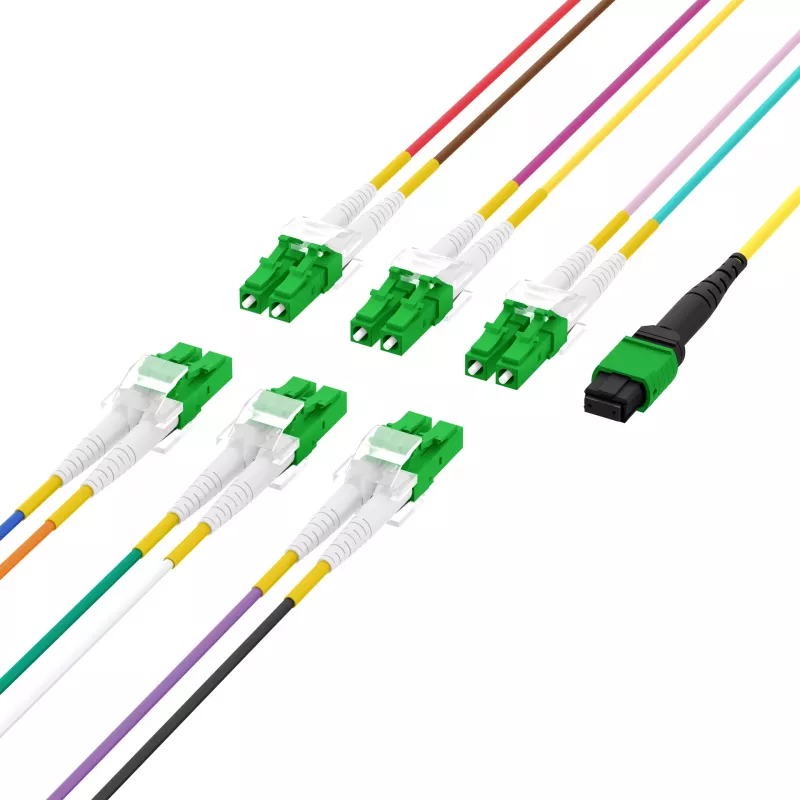

EFB Elektronik MTPF12LCAPC-10 - 10 m - OS2 - MTP - 12x LC

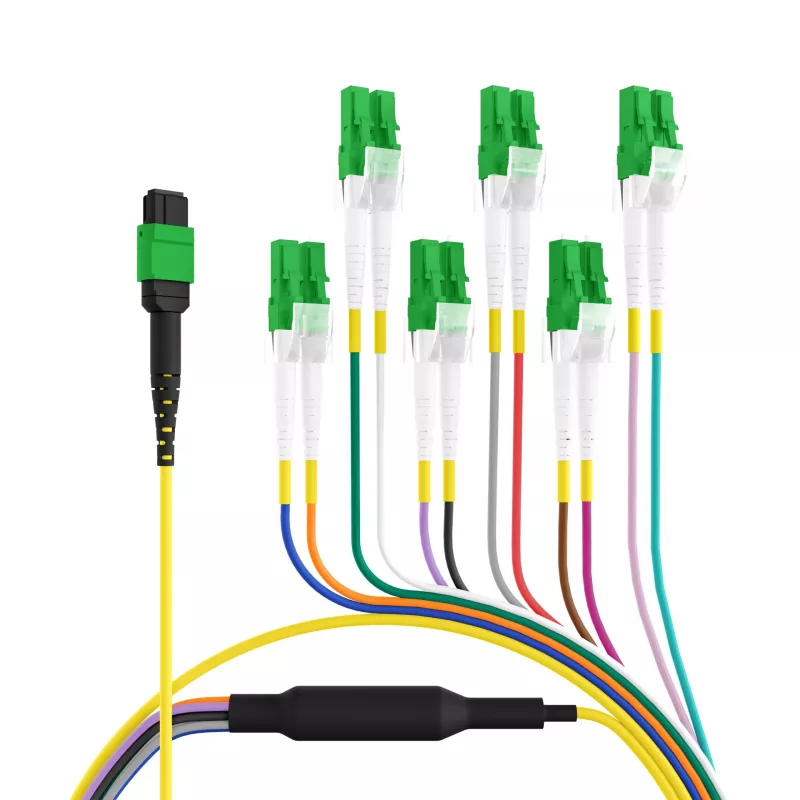

The EFB Elektronik MTPF12LCAPC-10 is a high-performance fiber optic breakout cable designed for reliable single-mode data transmission. This 10-meter OS2 cable features an MTP (MPO) connector on one end and 12 LC/APC simplex connectors on the other, making it ideal for high-density network environments.

Advantages

This breakout cable offers low insertion loss (≤0.35 dB for MTP, ≤0.25 dB for LC/APC) and high return loss (≥60 dB for LC/APC), ensuring excellent signal integrity. The LSZH jacket provides safety in confined spaces, and the yellow color allows easy identification.

Suitable for

• Data center cabling
• Telecommunications networks
• Fiber-to-the-x (FTTx) applications
• High-speed backbone connections

Key specifications

• Cable Type: Fiber Optic Breakout Cable
• Fiber Type: Single-mode OS2
• Length: 10 m
• Connector A: MTP (MPO) male with pins, Polarity Type B
• Connector B: 12x LC/APC simplex
• Number of Fibers: 12
• Jacket: LSZH, Yellow, 3.0 mm diameter
• Insertion Loss MTP: ≤0.35 dB
• Insertion Loss LC/APC: ≤0.25 dB
• Return Loss LC/APC: ≥60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper polarity alignment and use with compatible MPO and LC/APC interfaces. This cable is ideal for upgrading to 40G/100G networks.
