EFB Elektronik O0360.30 duplex-jumpperi LC-SC 9/125µm OS2 LSZH keltainen 2,0mm 30m

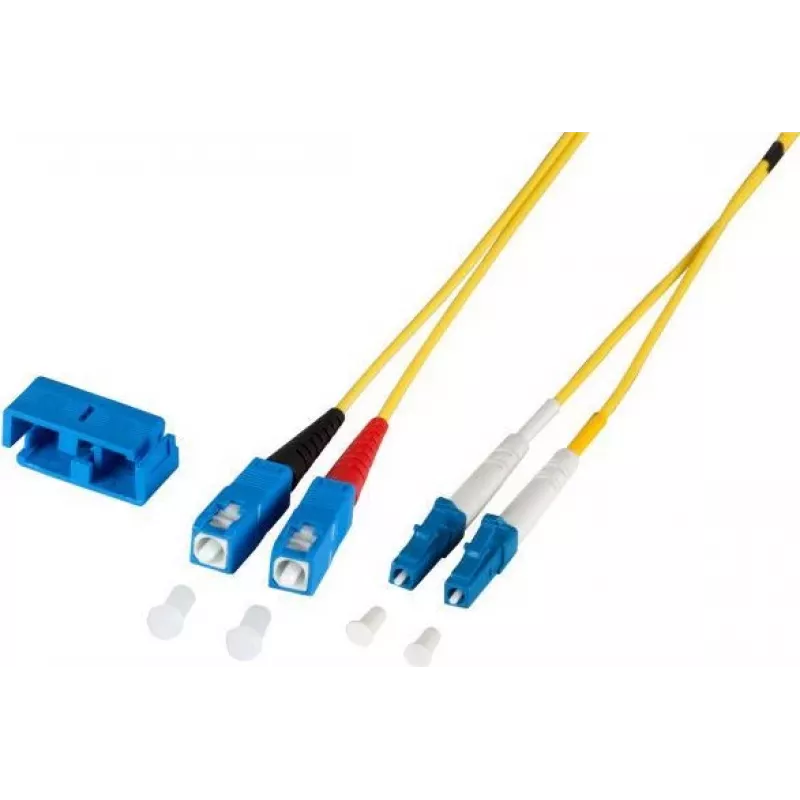

The EFB Elektronik O0360.30 is a high-quality duplex fiber optic jumper cable designed for single-mode applications. It features LC to SC connectors, OS2 fiber class, and a 9/125µm core/cladding diameter. The cable is constructed with a LSZH (Low Smoke Zero Halogen) jacket, ensuring safety in enclosed spaces. With a length of 30 meters and a diameter of 2.0 mm, this yellow cable is ideal for structured cabling and data center environments.

Advantages

This duplex jumper offers low insertion loss (≤0.3 dB per connector) and high return loss (≥50 dB), ensuring reliable signal transmission. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for public and commercial buildings. The 2.0 mm diameter provides flexibility while maintaining durability.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) and wide area networks (WAN)

Key specifications

• Connector Type A: LC
• Connector Type B: SC
• Fiber Mode: Single-mode
• Fiber Class: OS2 (ITU-T G.652.D)
• Core/Cladding Diameter: 9/125 µm
• Cable Construction: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Cable Length: 30 m
• Jacket Color: Yellow
• Connector Polish: UPC
• Insertion Loss (Max.): ≤ 0.3 dB per connector
• Return Loss (Min.): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 20 mm
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.25 dB/km
• Standards Compliance: RoHS, REACH, TIA/EIA-568-C.3, IEC 60794-2

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC and SC interfaces. Use with OS2 rated equipment for best results.
