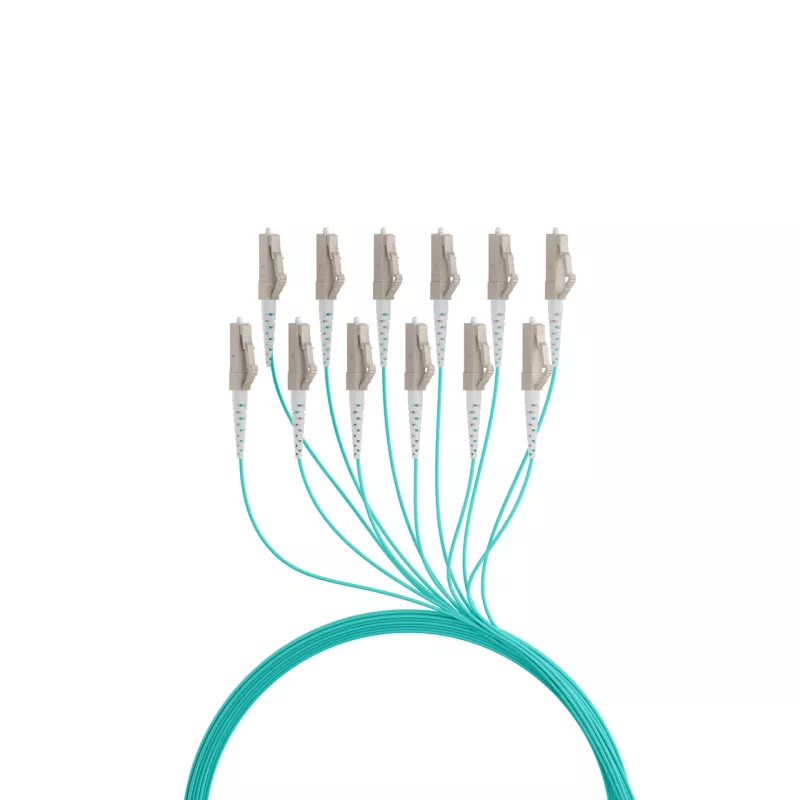

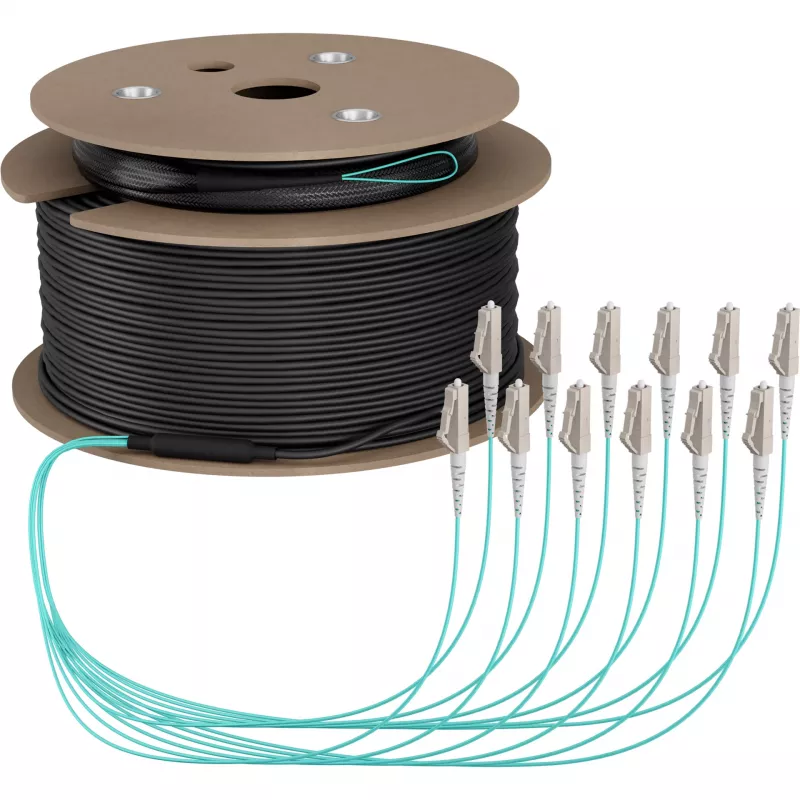

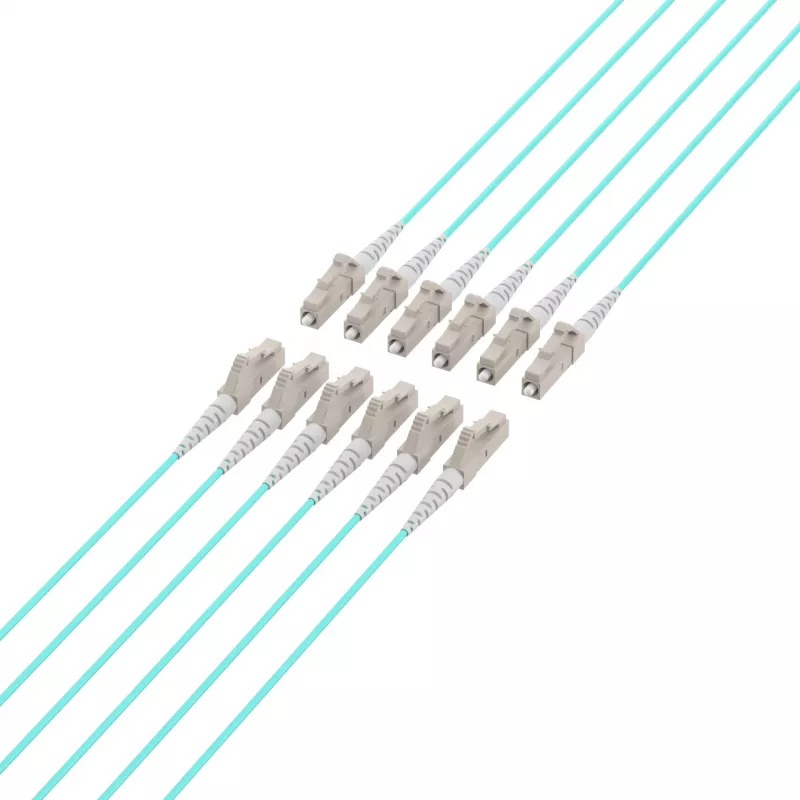

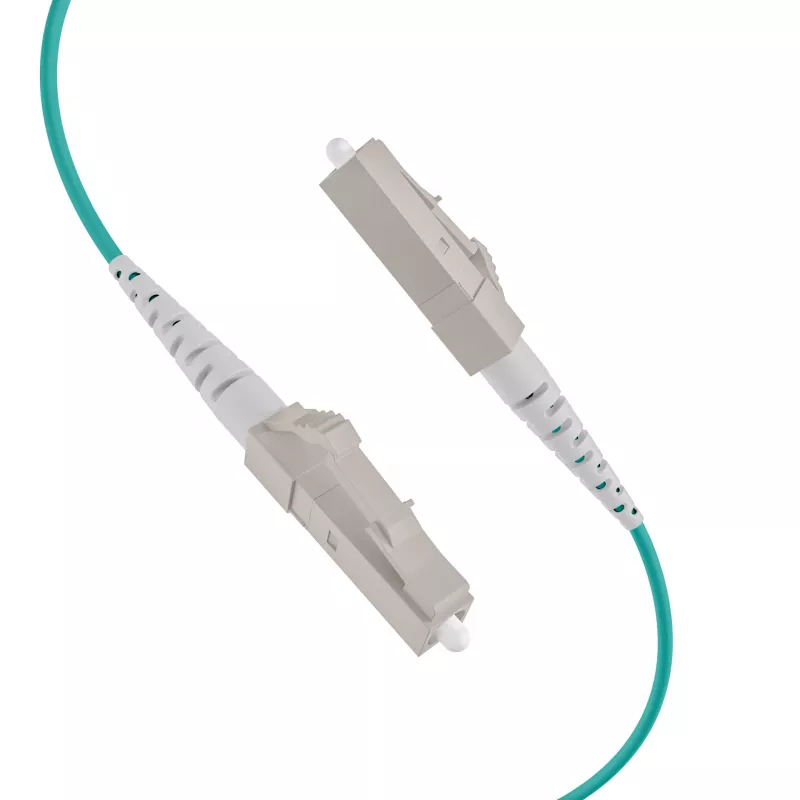

EFB Elektronik runkokaapeli U-DQ ZN BH OM3 12G 1x12 LC-LC 150 m Dca LSZH - 150 m O8342S150OM3

In high-density data centers, backbone cabling demands low attenuation and reliable performance. This 150-meter EFB trunk cable with 12 multimode OM3 fibers and LC connectors on both ends delivers exactly that. The LSZH jacket ensures low smoke and zero halogen emission in case of fire, while the Dca CPR rating confirms controlled flame spread. Ideal for connecting distribution areas or linking switches over longer distances.

Key specifications

• Cable length: 150 m
• Fiber type: Multimode OM3 (50/125 µm)
• Number of fibers: 12
• Connectors: LC to LC
• Jacket material: LSZH
• CPR fire rating: Dca
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Operating temperature: -10°C to 60°C

Why choose it

This trunk cable is factory-terminated and tested, ensuring consistent performance. The 12-fiber design supports parallel optics or multiple links in a single pull, reducing installation time. LSZH jacket improves safety in enclosed spaces.

Ideal use cases

• Data center backbone cabling
• Enterprise network distribution
• Storage area network (SAN) connections

Good to know

The cable is aqua-colored for easy identification as OM3. The U-DQ ZN BH construction provides durability and bend resistance suitable for trunking applications.
