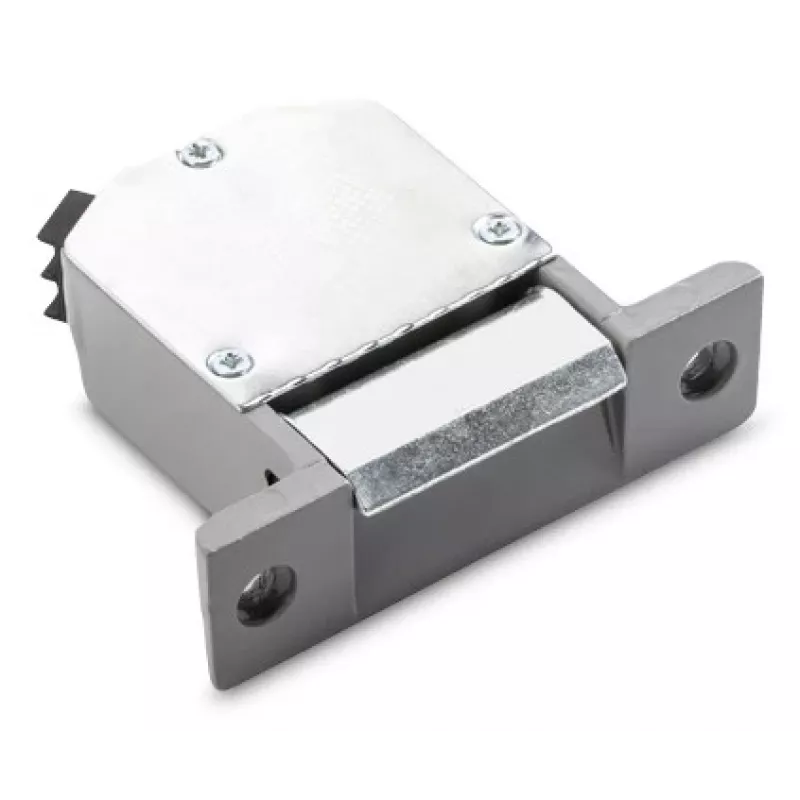

ELEKTRA-PLUS R1 Sähkölukko 24V

The ELEKTRA-PLUS R1 Electric Strike 24V is a 24V electric strike with a housing measuring 27 x 55 x 77 mm and a weight of 0.24 kg. It allows a maximum pressure on the door during latch release of 30N (3 kG) and can withstand a door load of 3500 N (350 kG).

Key features

• Model: R1-24.10
• Nominal voltage: 24 ± 2V
• Permissible continuous operation time: 30 min

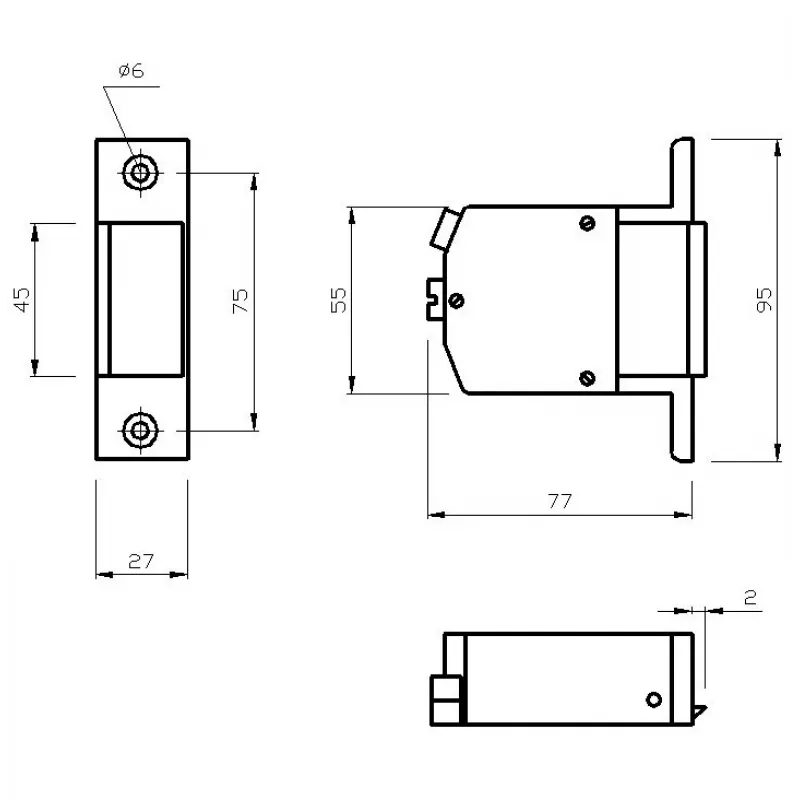

• External housing dimensions: 27 x 55 x 77 mm
• Weight: 0.24 kg
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load on strike: 3500 N (350 kG)

Specifications

• Brand: Elektra-Plus
• MPN: R1-24.10
• Nominal voltage: 24 ± 2V
• Permissible continuous operation time: 30 min
• External housing dimensions: 27 x 55 x 77 mm
• Weight: 0.24 kg
• Permissible pressure on door during latch release: 30N (3 kG)
• Permissible door load on strike: 3500 N (350 kG)
