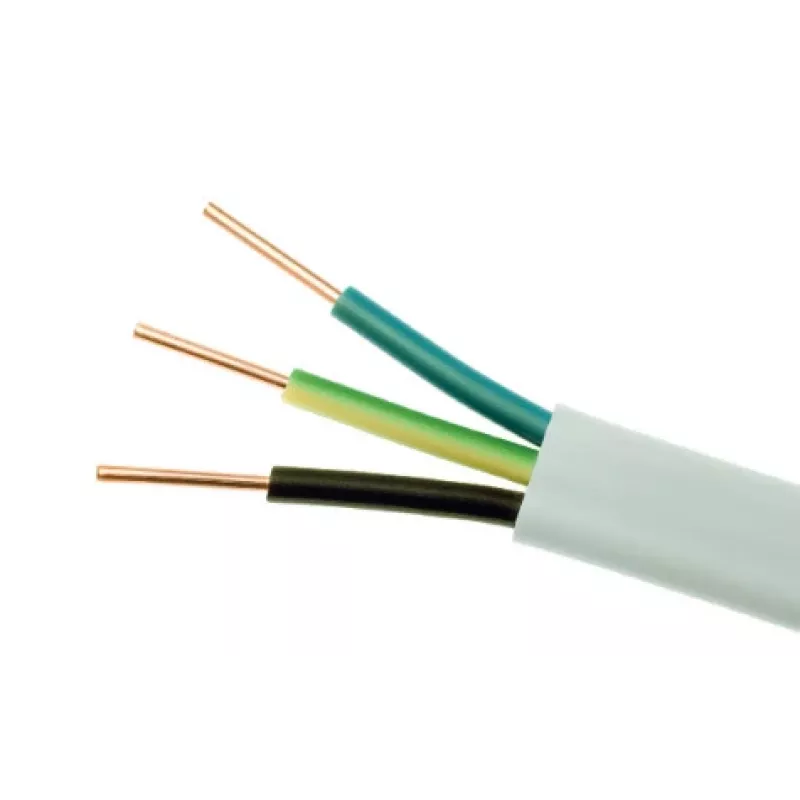

ELEKTROKABEL YDYp 3x1,5mm2 lattakaapeli 450/750V 100m valkoinen

The ELEKTROKABEL YDYp 3x1.5mm2 flat power cable is a high-quality, PVC-insulated and sheathed cable designed for fixed installation in dry and damp indoor locations. With a rated voltage of 450/750V and a solid copper conductor, it ensures reliable power distribution for lighting, socket circuits, and small appliances. The flat profile allows for space-saving installation under plaster or in conduits.

Advantages

This cable offers excellent flame retardancy (self-extinguishing) for enhanced safety. The flat design reduces installation depth and simplifies routing in tight spaces. The PVC outer sheath provides good mechanical protection and resistance to moisture. With a 100-meter length, it is ideal for larger projects or multiple runs.

Suitable for

• Fixed wiring in residential and commercial buildings
• Indoor dry and damp environments
• Lighting circuits, socket outlets, and small power distribution
• Installation in conduits, under plaster, or on cable trays

Key specifications

• Brand: ELEKTROKABEL
• Model: YDYp 3x1.5mm2
• Conductor: Solid copper, 3 cores, 1.5 mm² each
• Insulation/Sheath: PVC
• Rated Voltage: 450/750V
• Length: 100 m
• Colour: White
• Outer Dimensions: 9.5 x 4.5 mm (W x H)
• Max. Operating Temperature: +70°C (conductor)
• Min. Operating Temperature (fixed): -30°C
• Bending Radius: 4 x cable height
• Standard: PN-EN 50525-2-31

Recommendations

Ensure compliance with local electrical regulations. Suitable for fixed installation only; not intended for flexible use or outdoor exposure. Always consult a qualified electrician for installation.
