Eltako RS485-väylä DALI-2 -yhdyskäytävä FD2G14 (30014045)

Integrate DALI-2 lighting into Eltako RS485 building automation with this gateway, supporting up to 64 DALI control gears and 16 DALI-2 input devices on a single line, with an integrated 100 mA DALI power supply and galvanic isolation.

Overview

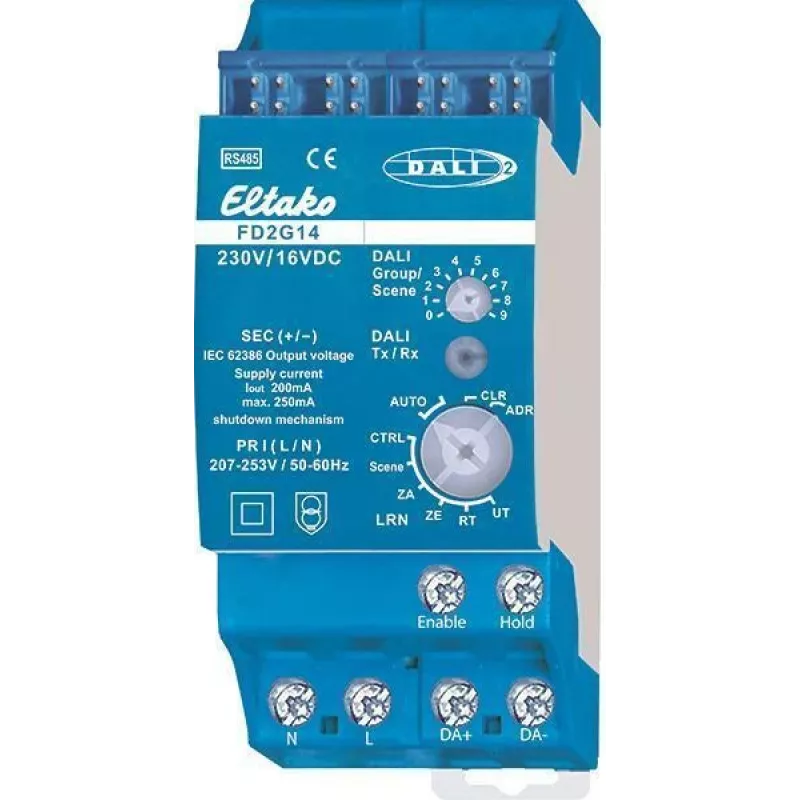

The Eltako FD2G14 is a compact gateway that bridges the Eltako RS485 bus and a DALI-2 lighting bus. It enables seamless control and monitoring of DALI-2 luminaires, sensors, and switches from an Eltako building automation system. The device is designed for flush-mounted installation in standard switch boxes and is configured using the Eltako PCT14 PC tool.

What stands out

• Supports up to 64 DALI-2 control gears and 16 DALI-2 input devices
• Integrated DALI power supply delivers up to 100 mA on the DALI line
• Galvanic isolation between RS485 and DALI buses for safe operation
• Flush-mounted design fits in standard switch boxes (IP20)
• Firmware update capability via PCT14 tool

Technical details

• Gateway type: RS485-Bus to DALI-2
• DALI standard: DALI-2 (IEC 62386)
• Number of DALI lines: 1
• Max. DALI control gears: 64
• Max. DALI-2 input devices: 16
• Integrated DALI power supply: Yes, max. 100 mA
• Operating voltage: 12V DC via Eltako RS485 bus
• Current consumption: max. 20 mA (without DALI load)
• Mounting: Flush-mounted / switch box installation
• Configuration: Eltako PCT14 PC tool via USB485 interface
• Galvanic isolation: Yes
• Protection class: IP20
• Ambient temperature range: -20°C to +50°C
• Housing material: Plastic
• Connections: Screw terminals
• Firmware update: Yes

Our verdict

A reliable and compact solution for integrating DALI-2 lighting into Eltako RS485 systems, offering robust performance and easy configuration for professional installations.
