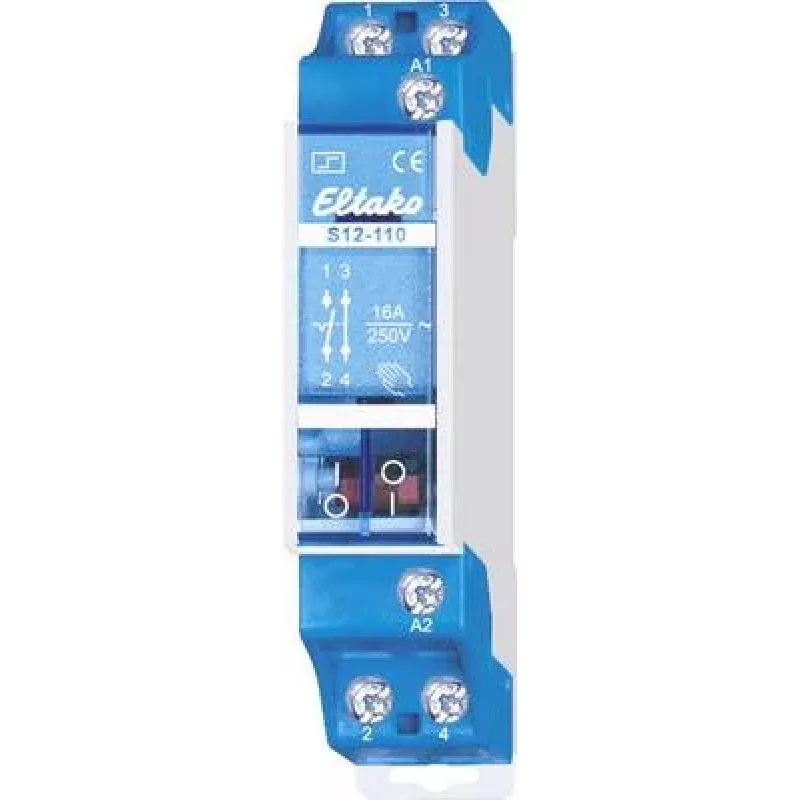

Eltako S12-110-24VDC impulssikytkin 1NO+1NC 16A DIN-kisko 21110055

The Eltako S12-110-24VDC stands out as a compact impulse switch that combines one normally open and one normally closed contact in a single module, enabling both switching and disconnect functions from one device. Its 24V DC control voltage makes it suitable for low-voltage control circuits, while the 16A contact rating handles substantial loads.

Highlights

• 1 NO + 1 NC contact configuration for versatile switching
• 16 A rated switching current at 250V AC
• DIN rail mounting with only 1 module width (18 mm)
• Low standby power consumption of 0.03 W
• High mechanical life of over 10 million operations

In daily use

This impulse switch is ideal for lighting control, staircase timers, and general automation where a maintained contact state is required without continuous coil power. The AgSnO2 contacts ensure reliable switching of incandescent, halogen, fluorescent, and LED loads within specified limits. Its compact size saves space in distribution boards.

Full specifications

• Control voltage: 24V DC
• Contact configuration: 1 NO + 1 NC
• Rated switching current: 16 A
• Rated switching voltage: 250V AC
• Mounting: DIN rail (REG), 1 TE width
• Contact material: AgSnO2
• Max. incandescent lamp load: 2000 W
• Max. halogen lamp load: 1000 W
• Max. fluorescent lamp load (uncompensated): 1000 VA
• Max. LED lamp load: 400 W
• Standby power consumption: 0.03 W
• Operating power consumption: 2.8 W
• Ambient temperature range: -20°C to +50°C
• Switching frequency: max. 600 operations/hour
• Mechanical life: >10 million operations
• Electrical life: >1 million operations at 16A resistive

Final note

A reliable and space-saving impulse switch for professional electrical installations, offering both NO and NC contacts in a single DIN rail module.
