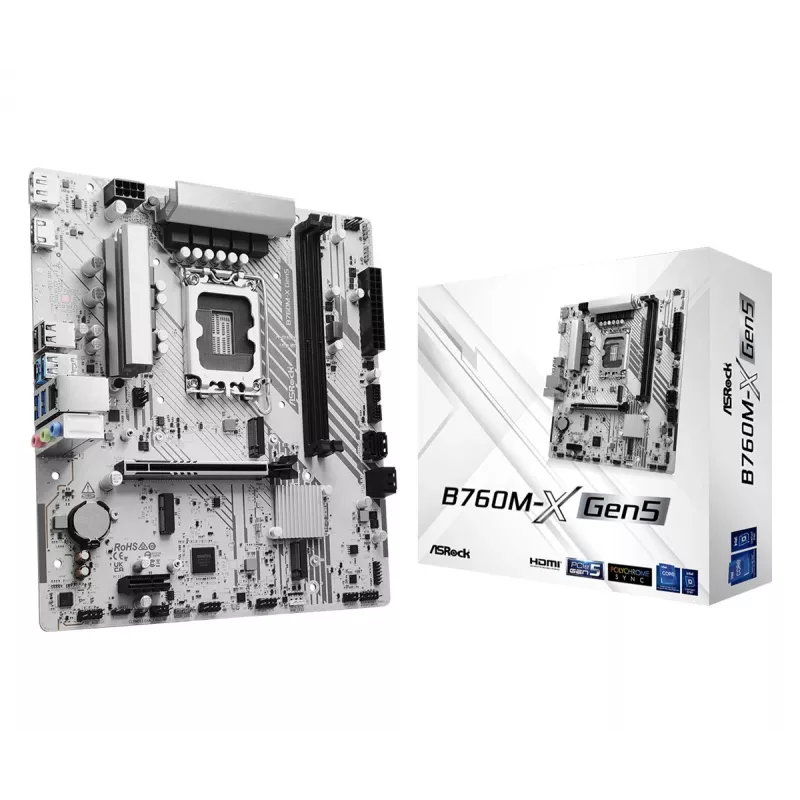

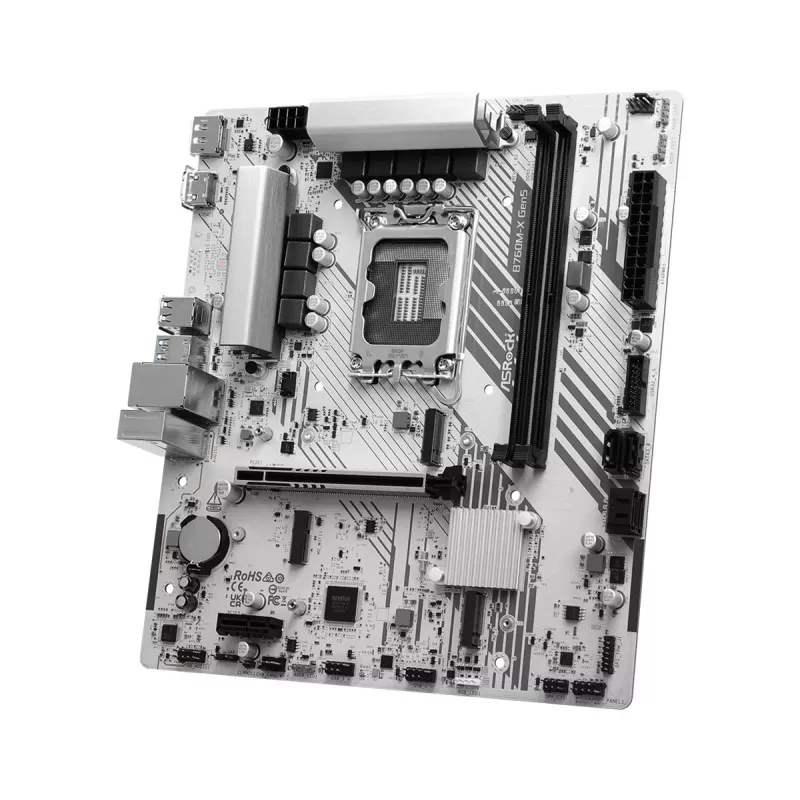

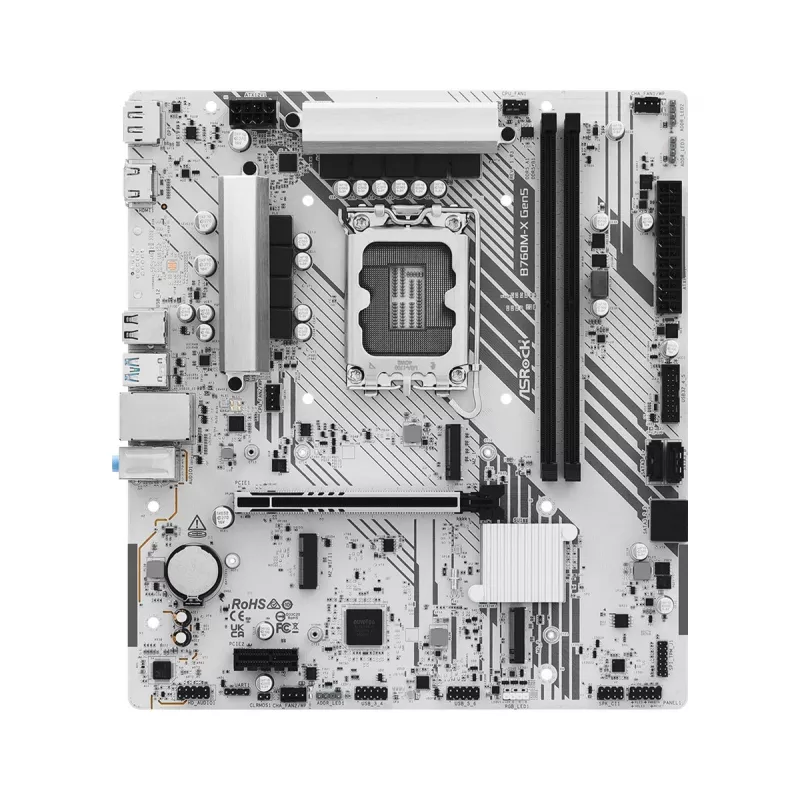

Emolevy ASROCK B760M-X GEN5 mATX LGA1700, 2× DDR5, DisplayPort & HDMI

ASROCK B760M-X GEN5 is a micro-ATX motherboard designed for LGA1700 processors and dual-channel DDR5 memory. The board provides a compact platform with modern display outputs — DisplayPort and HDMI — and basic connectivity for small form-factor desktops, office PCs and entry-level gaming systems. It balances essential expansion options and power delivery suited to mainstream 13th/14th generation Intel CPUs while keeping a space-efficient mATX footprint.

Advantages

The motherboard supports DDR5 memory in two slots, enabling higher memory frequencies and improved responsiveness compared with previous-generation DDR4 platforms. Native LGA1700 CPU compatibility ensures straightforward installation of supported Intel processors. Integrated DisplayPort and HDMI outputs allow direct connection to monitors without a discrete graphics card in systems using CPU iGPU. The micro-ATX layout offers a compact size with sufficient PCIe and storage headers for common upgrade paths.

Suitable for

• Compact home or office desktops where desk space is limited
• Home workstations for productivity tasks and light content creation
• Entry-level gaming systems using integrated graphics or a single-slot GPU
• System upgrades from older LGA platforms to DDR5-capable hardware
• Small form-factor builds that require modern display outputs

Key specifications

• Form factor: micro-ATX
• CPU socket: LGA1700 (Intel 12th/13th/14th gen compatible where supported)
• Memory: 2× DDR5 DIMM slots supporting dual-channel configurations
• Video outputs: DisplayPort and HDMI for integrated graphics
• Expansion: PCIe slot(s) for discrete graphics or expansion cards
• Storage interfaces: SATA ports and M.2 slot(s) for NVMe/PCIe SSDs
• Onboard audio and LAN connectivity suitable for typical desktop use

How to use

Install the motherboard into a compatible micro-ATX case following the case manufacturer’s instructions and using the supplied standoffs. Fit a supported LGA1700 CPU and apply appropriate cooling, then insert DDR5 memory modules into the two DIMM slots, observing proper slot orientation and pairing for dual-channel operation. Connect storage devices to SATA ports or insert an M.2 SSD into the appropriate M.2 slot. Attach power from the PSU to the 24-pin ATX and CPU power connectors. Use the rear DisplayPort or HDMI outputs to connect a monitor when using a CPU with integrated graphics, or install a discrete GPU in the PCIe slot and connect displays to the GPU outputs. Install the operating system and motherboard drivers for full functionality.

Recommendations

For stable operation, use DDR5 modules listed in the motherboard memory compatibility list and ensure the BIOS is updated to the latest available version before installing a new-generation CPU. Choose a quality power supply with the correct power connectors and sufficient wattage for your planned configuration. In compact cases, verify cooling clearance for the CPU cooler and any discrete GPU to maintain adequate airflow.
