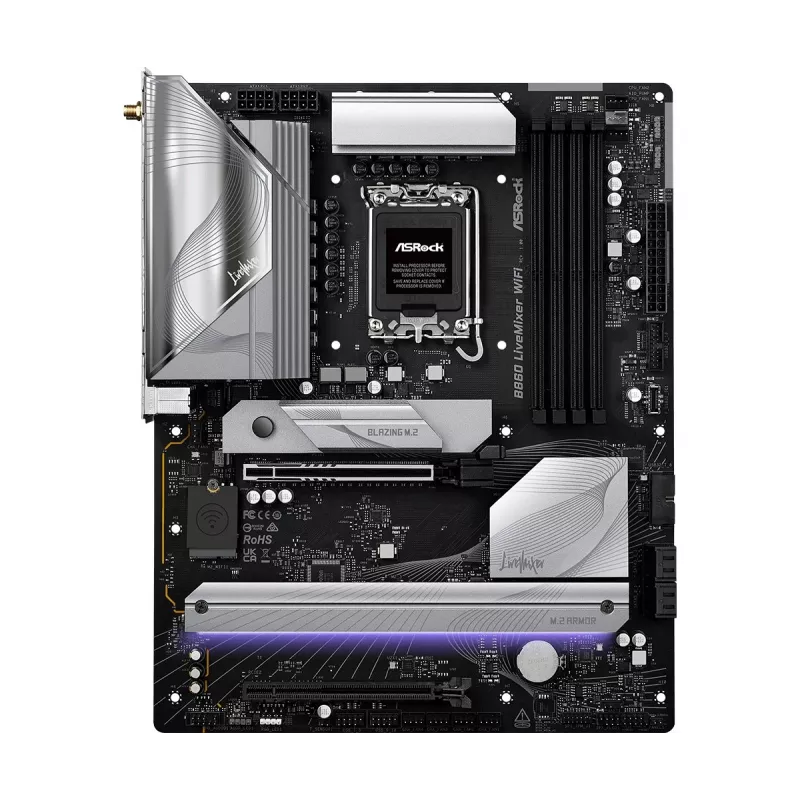

Emolevy ASRock B860 LiveMixer WiFi — Intel B860, LGA 1851, ATX, DDR5, 4 DIMM, Wi‑Fi 6E, 2.5Gb LAN

The ASRock B860 LiveMixer WiFi motherboard is designed for current-generation content creators and gamers who need extensive connectivity and reliable performance. It supports Intel Core Ultra processors with the LGA 1851 (Socket V1), DDR5 memory up to 256 GB, and multiple high-speed storage options including PCIe Gen5 and Gen4 M.2 slots. The board integrates advanced power delivery, thermal features, and connectivity such as Wi‑Fi 6E, Thunderbolt 4 Type‑C, and a 2.5 Gb/s LAN to support streaming, multitasking and high-bandwidth workflows.

Advantages

The motherboard offers a reinforced 12+1+1 power phase VRM with Dr.MOS and Hi‑Density power connectors for stable CPU power and improved overclocking headroom. Upgraded 20K black capacitors with 1000 µF capacitance provide higher charge storage, lower ripple and more stable output current for consistent system stability. Storage options include PCIe Gen5 Blazing M.2 and Hyper M.2 Gen4 x4 slots for ultra-fast NVMe drives, while enlarged and toolless M.2 heatsinks improve thermal performance. The board also provides up to 22 USB ports, integrated Nahimic audio enhancements, RGB headers with Polychrome and SignalRGB support, and DIY-friendly features such as graphics card lite release, thermistor headers and BIOS Flashback.

Suitable for

• Content creators and streamers using multiple capture devices and peripherals
• Gamers seeking stable power delivery and overclocking capability
• Workstations requiring high-speed NVMe storage and large DDR5 memory capacity
• Systems needing robust networking: Wi‑Fi 6E and 2.5 Gb/s LAN

Key specifications

• Socket: LGA 1851 (Socket V1) supporting Intel Core Ultra processors
• Chipset: Intel B860
• Form factor: ATX
• Memory: 4 × DDR5 slots, up to 256 GB, XMP and EXPO support
• Power design: 12+1+1 VRM with Dr.MOS and Hi‑Density power connector
• Capacitors: 20K black capacitors, 1000 µF
• Storage: PCIe Gen5 M.2 (128 Gb/s) and PCIe Gen4 x4 M.2 slots; RAID 0/1/5/10 support
• USB: Up to 22 USB ports (front + rear), Thunderbolt 4 Type‑C (40 Gbps)
• Network: Wi‑Fi 6E (802.11axE) and Dragon 2.5 Gb/s LAN
• Audio: Nahimic audio technologies with noise suppression and enhancement features

How to use

Install the motherboard into an ATX-compatible chassis and connect the CPU, DDR5 memory modules, NVMe SSDs and graphics card according to the motherboard manual. Use the Hi‑Density CPU power connector and ensure proper seating of the 12+1+1 VRM components. Enable Intel XMP or AMD EXPO profiles in UEFI to run memory at tested overclocked settings if your modules support them. Configure fan curves and thermistor sensors using the Fan‑Tastic Tuning utility or UEFI for optimal cooling. Use BIOS Flashback to update firmware with only power and a USB stick if needed.

Recommendations

For stable streaming and content creation, connect capture devices listed by the manufacturer (for example GC553, GC573, GC311, HD60 S+), use high-quality DDR5 modules certified for XMP/EXPO, and install NVMe SSDs under the provided M.2 heatsinks. When overclocking, ensure adequate cooling and use the Hi‑Density power connector to maintain reliable power delivery.
