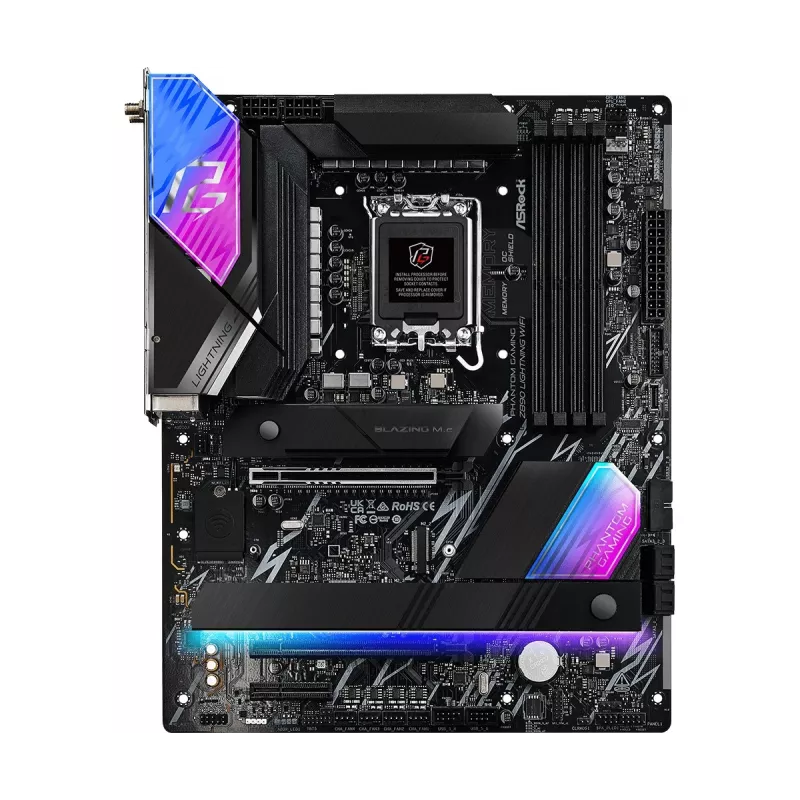

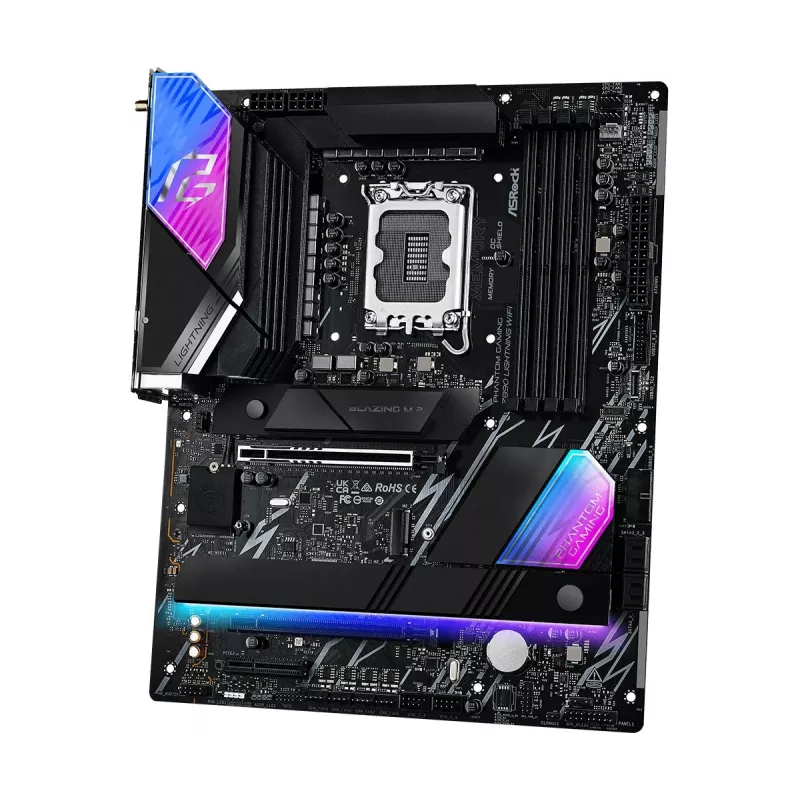

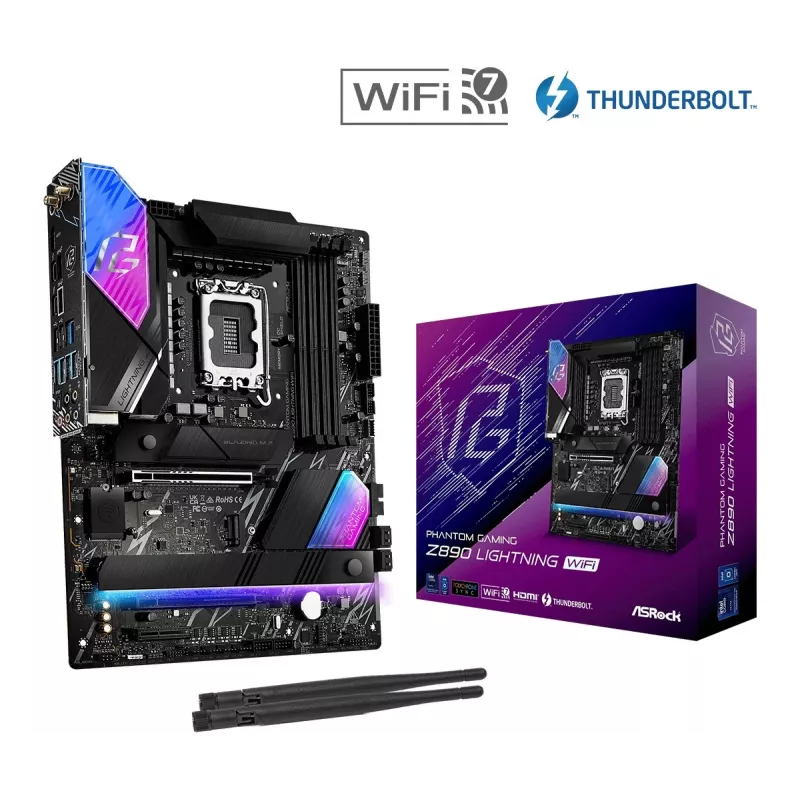

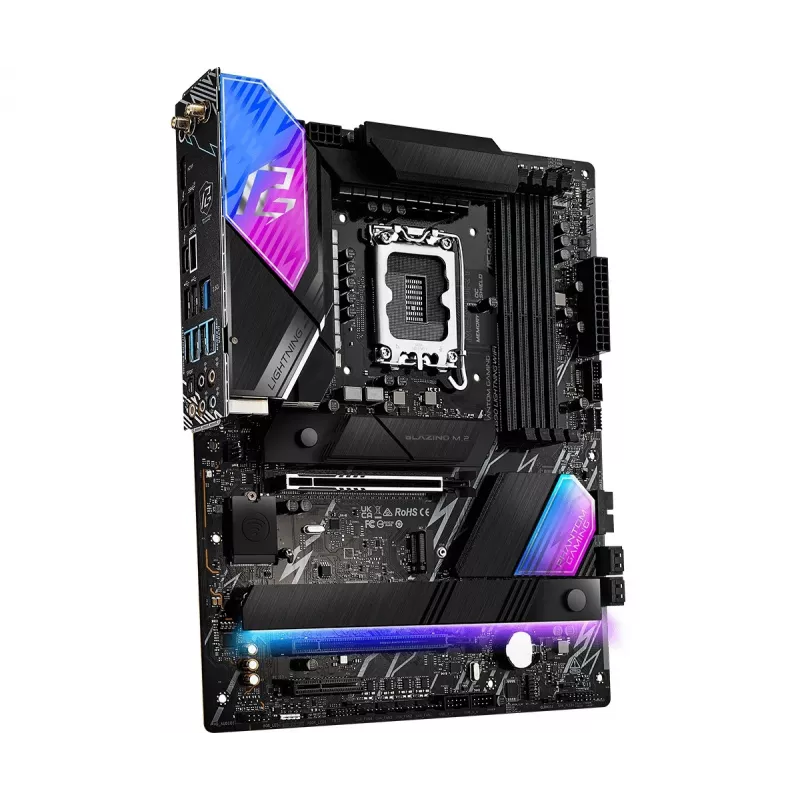

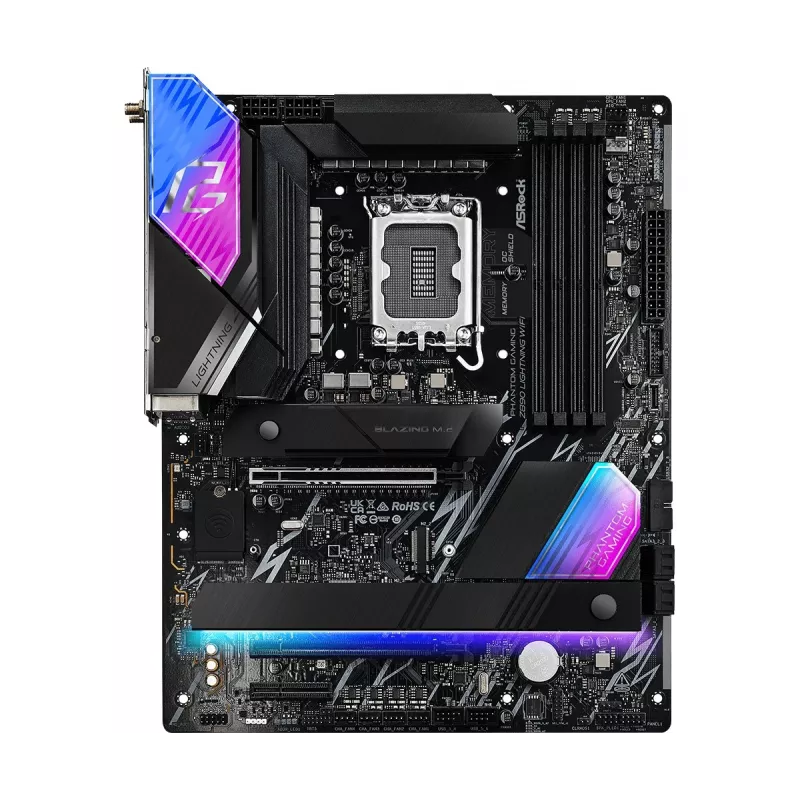

Emolevy ASRock Z890 Lightning WiFi — Intel Z890, LGA1851, ATX, 4× DDR5, Wi‑Fi 7, 2.5Gb LAN, Thunderbolt 4

The ASRock Z890 Lightning WiFi is an ATX motherboard for Intel LGA 1851 (Socket V1) platforms, designed for high-performance gaming and content creation systems. It supports Intel Core Ultra (Series 2) processors and up to 256 GB of DDR5 memory across four DIMM slots. The board integrates advanced power delivery with an 18+1+1+1+1 phase VRM and upgraded 20K 1000µF capacitors, PCIe Gen5 M.2 support, Thunderbolt 4 Type-C, Wi‑Fi 7 (802.11be) and Killer™ 2.5 GbE networking, offering a balanced feature set for overclocking, fast storage, and low-latency networking.

Advantages

The motherboard delivers robust and stable power through an optimized VRM with Dr.MOS Smart Power Stage monitoring and Hi‑Density power connectors, improving overclocking headroom and long-term reliability. Thermal management is supported by extensive aluminum heatsinks, enlarged toolless M.2 heatsinks and a 2 oz copper PCB for lower operating temperatures. High-speed storage is enabled by PCIe Gen5 Blazing M.2 slots and front-panel USB 3.2 Gen2x2 Type‑C provides up to 20 Gbps transfer rates. Networking is enhanced with Killer E3100 2.5 Gbps Ethernet, Wi‑Fi 7 with Multi-Link Operation, and low-latency USB/Lightning Gaming Ports. Audio is handled by Nahimic technologies for clear voice communication and surround features.

Suitable for

• High-performance gaming PCs with Intel LGA 1851 processors
• Workstations and content creation systems requiring fast PCIe Gen5 storage
• Enthusiast overclocking and custom cooling setups
• Systems needing low-latency wired and wireless networking (2.5 GbE, Wi‑Fi 7)

Key specifications

• Form factor: ATX
• Chipset: Intel Z890
• CPU socket: LGA 1851 (Socket V1)
• Memory: DDR5, 4 slots, up to 256 GB
• VRM: 18+1+1+1+1 phase design with SPS (Dr.MOS)
• Capacitors: Exclusive 20K 1000µF capacitors
• Storage: PCIe Gen5 M.2 (Blazing M.2), SATA III, RAID 0/1/5/10
• Networking: Killer™ E3100 2.5 GbE, Wi‑Fi 7 (802.11be) with MLO

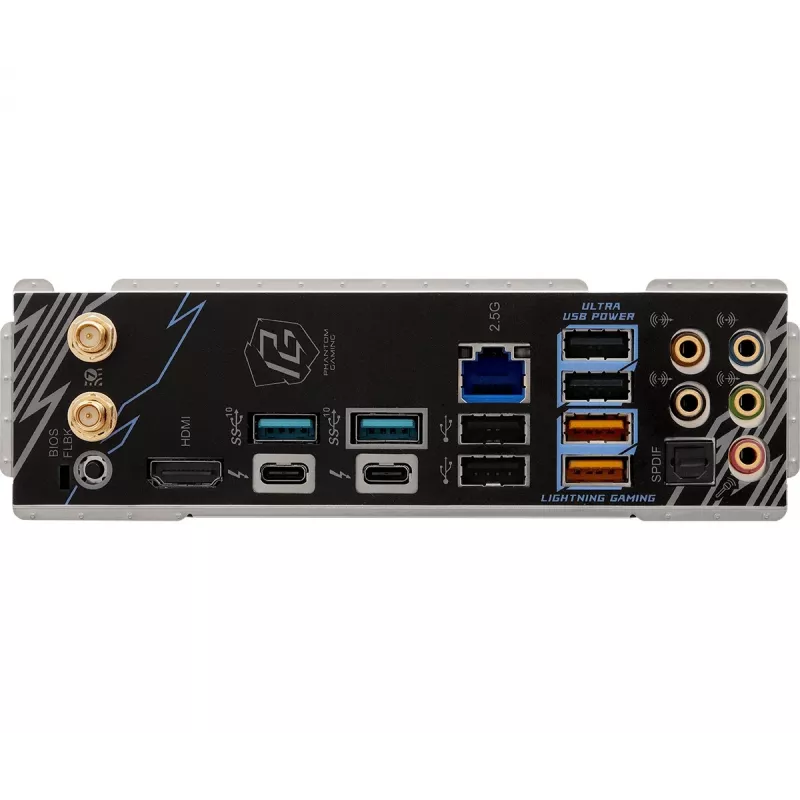

• USB: Front-panel USB 3.2 Gen2x2 Type‑C (20 Gbps), Thunderbolt 4 Type‑C support
• Audio: Nahimic audio suite
• PCB: 2 oz copper inner layers

How to use

Install the motherboard into a compatible ATX chassis and mount an LGA 1851 CPU following the CPU cooler manufacturer's instructions. Populate DDR5 modules into the four DIMM slots, ensuring support for Intel XMP/AMD EXPO profiles if overclocking. Connect storage devices to the M.2 slots or SATA ports; use the toolless XXL M.2 heatsink mechanism for easy M.2 SSD installation and improved cooling. Attach power via the 24‑pin ATX and Hi‑Density CPU power connectors, and connect peripherals to the rear I/O and front-panel headers. Use the BIOS Flashback feature for updating firmware if needed without CPU or memory installed.

Recommendations

For stable overclocking and long-term reliability, use high-quality DDR5 modules certified for XMP/EXPO, ensure adequate case airflow to benefit from the enlarged M.2 and aluminum heatsinks, and connect high-current power supplies to the Hi‑Density power connectors. Enable Killer GameFast and prioritize network traffic for competitive gaming; update the BIOS via USB when installing new CPU generations.
