Emolevy ASUS PRIME B760M-PLUS — Intel B760, LGA 1700, micro-ATX, DDR5, 4 DIMM, 192 GB, 2,5 Gb LAN, 2x M.2

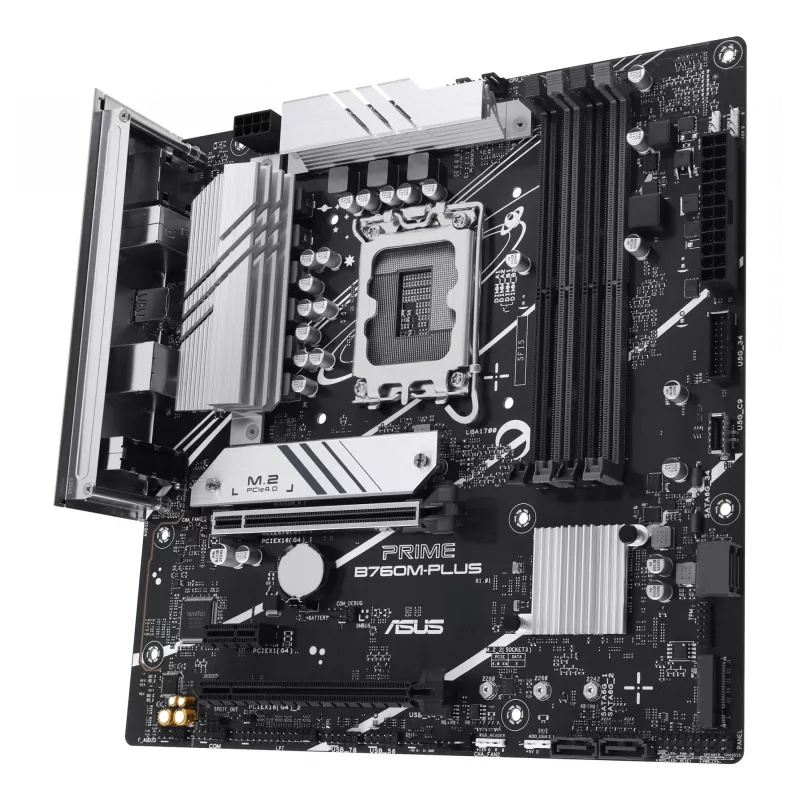

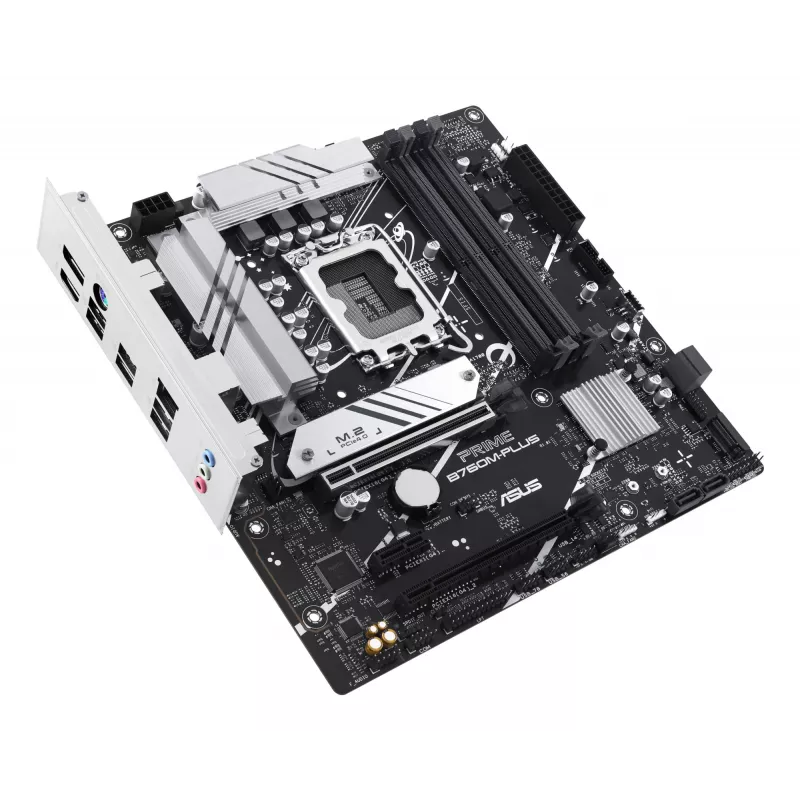

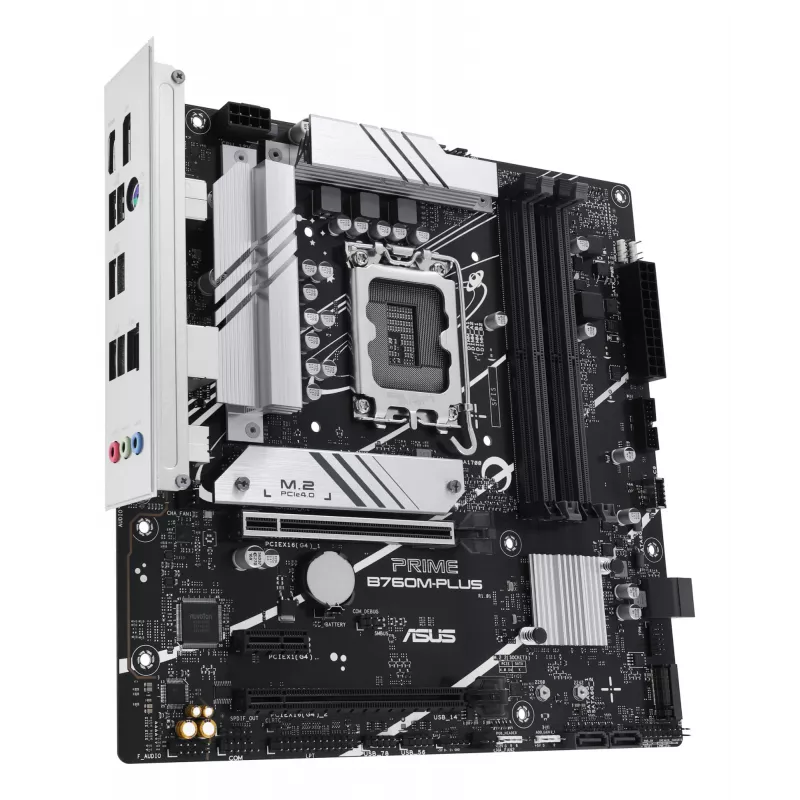

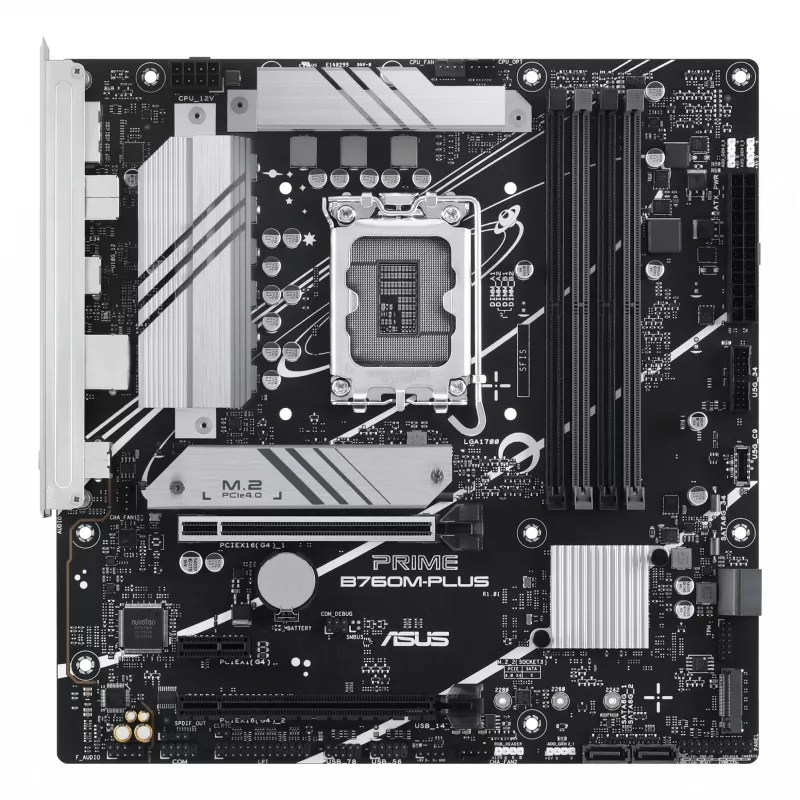

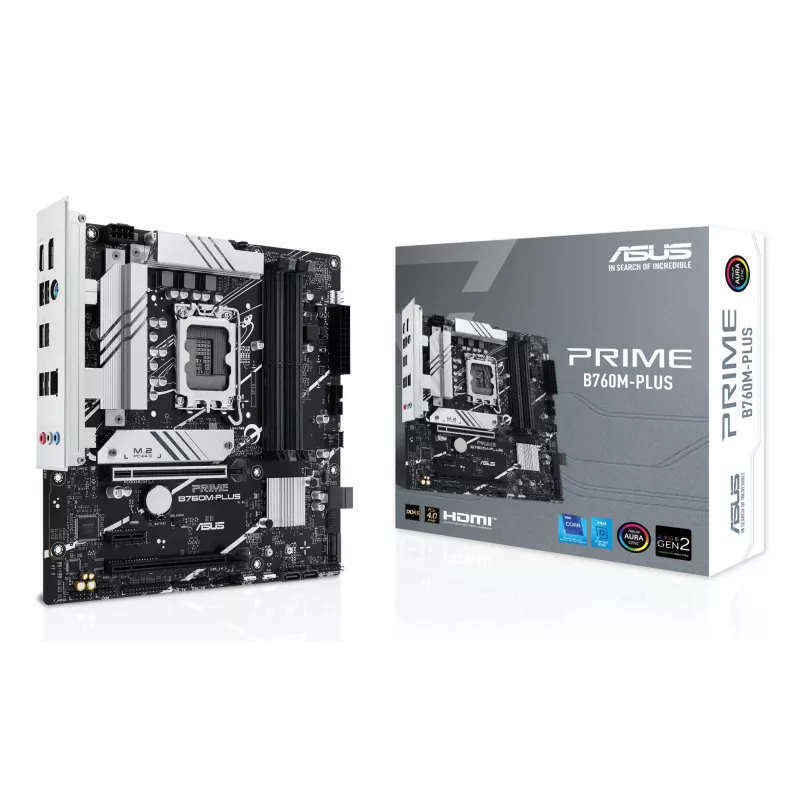

The ASUS PRIME B760M-PLUS is a micro ATX motherboard with an Intel B760 chipset and LGA 1700 socket, designed for 13th and 14th Gen Intel® Core™ processors as well as compatible Intel® Celeron® and Pentium® Gold CPUs. The board supports DDR5-SDRAM across four DIMM slots for up to 192 GB of system memory, and offers multiple storage options including M.2 and SATA III with RAID support (0, 1, 5, 10). Integrated networking includes a 2.5 Gigabit Ethernet interface, making this model suitable for compact PC builds that require stable performance and modern connectivity.

Advantages

The PRIME B760M-PLUS combines a robust power design with a comprehensive set of cooling features and intelligent tuning tools provided through ASUS software and firmware. Flexible control options let users fine-tune power delivery, thermal behavior and system performance. Built-in energy-saving functions simplify power management by offering CPU power limits, fan profiles and lighting adjustments to reduce overall power consumption.

Suitable for

• Compact gaming or productivity PC builds using LGA 1700 processors
• Home or small office systems requiring reliable 2.5 GbE networking
• Users needing DDR5 support and up to 192 GB RAM for demanding applications
• DIY builders who want firmware and software tuning options

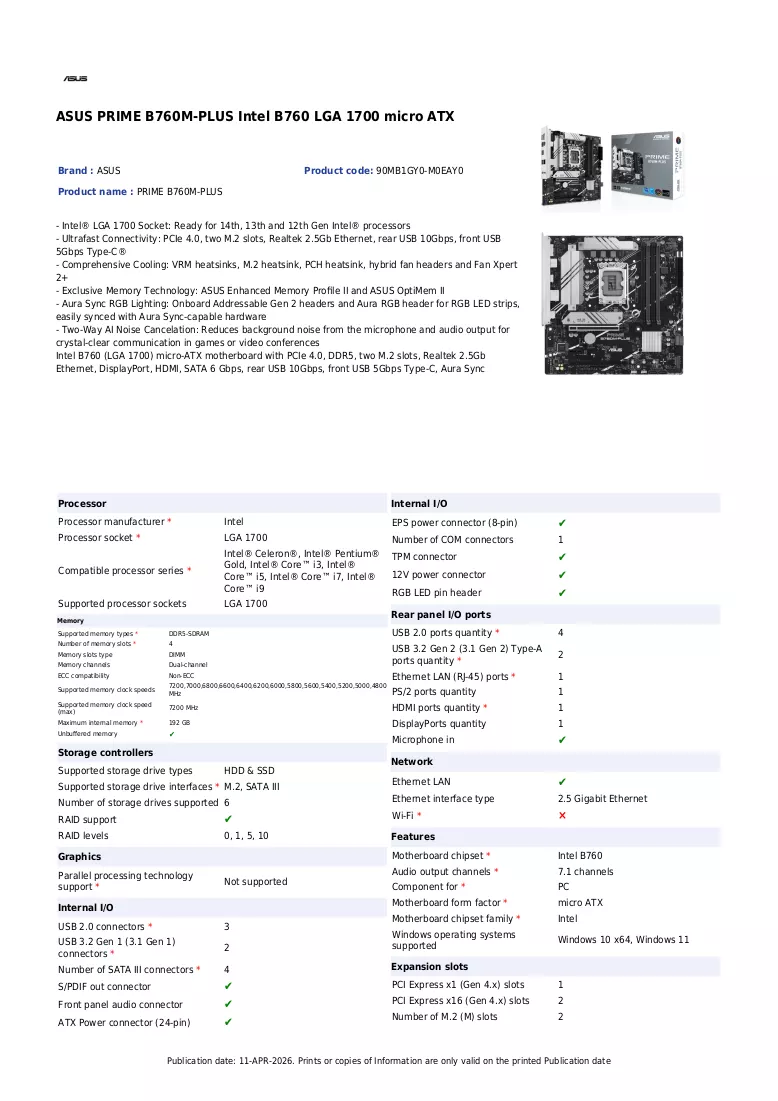

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (supports 13th/14th Gen Intel Core, Intel Celeron, Intel Pentium Gold)
• Memory: DDR5-SDRAM, 4 DIMM slots, up to 192 GB
• Storage: M.2 and SATA III interfaces, RAID 0/1/5/10 support
• Networking: 2.5 Gigabit Ethernet
• Manufacturer part number (MPN): 90MB1GY0-M0EAY0
• EAN: 4711387469910

How to use

Install the ASUS PRIME B760M-PLUS into a compatible micro ATX case, mount an LGA 1700 CPU and install a compatible cooler according to the cooler manufacturer’s instructions. Populate DDR5 DIMM slots with supported memory modules up to 192 GB, then connect storage devices to M.2 slots or SATA III ports. Attach power supply connectors (24-pin ATX and CPU power) and connect front-panel headers. After initial hardware assembly, enter the UEFI BIOS to configure memory profiles, boot order and RAID if required, then install the operating system and ASUS drivers/utilities for full functionality.

Recommendations

For stable operation, use a quality power supply with the recommended CPU power connectors and ensure adequate case airflow. Update the UEFI BIOS and ASUS utilities to the latest versions before finalizing system configuration.
