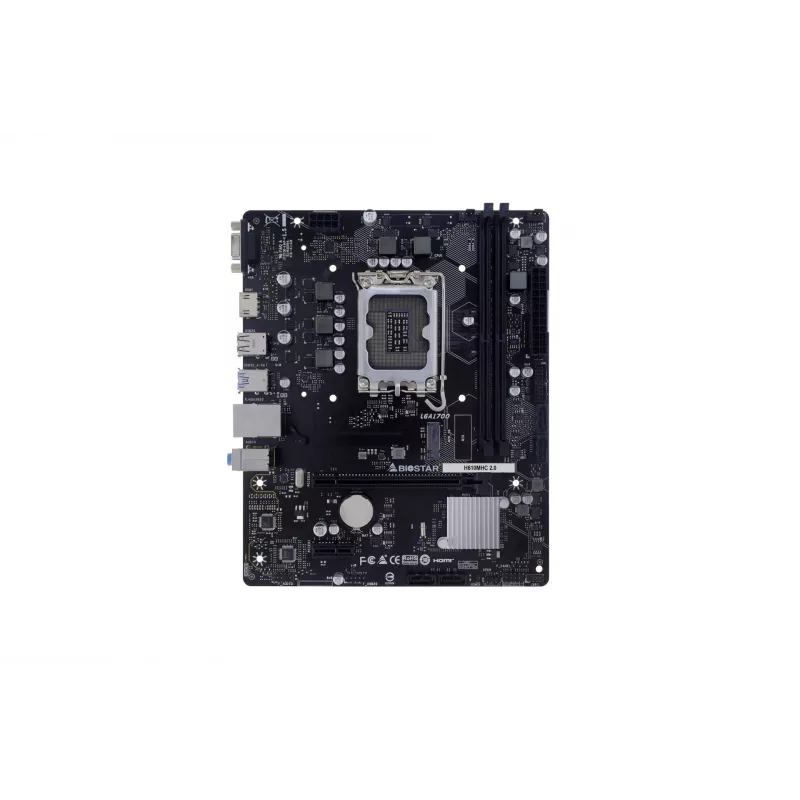

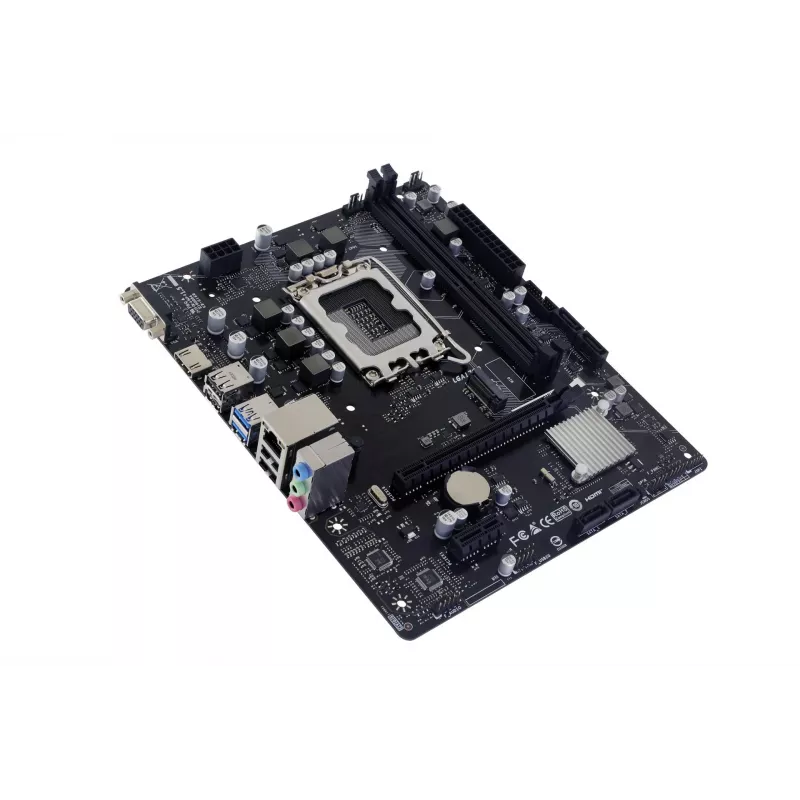

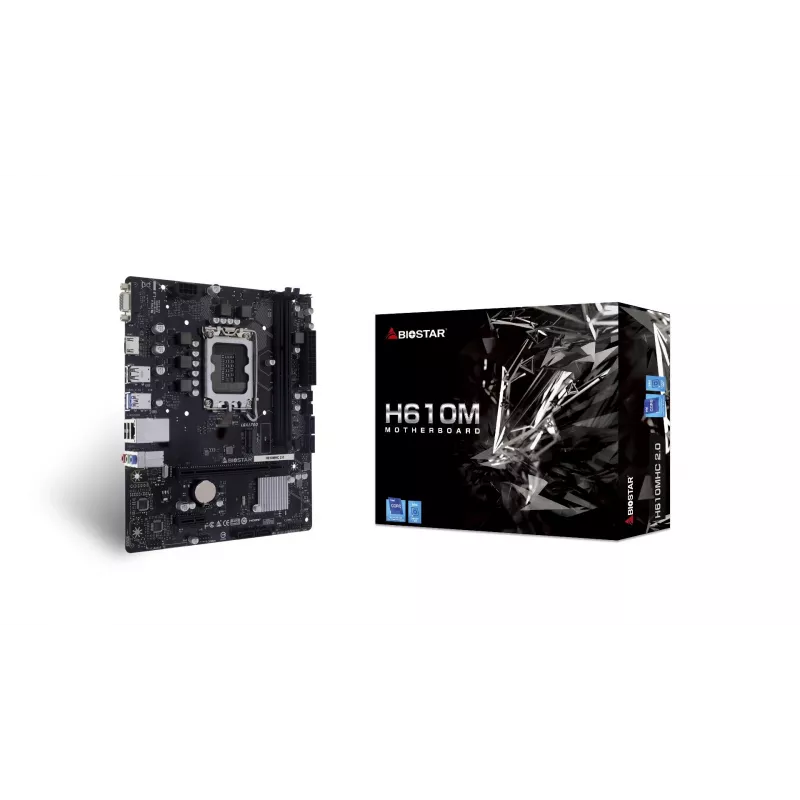

Emolevy Biostar H610MHC 2.0 Intel H610 LGA 1700 micro ATX

Intel H610 chipset motherboard compatible with 12th generation Intel Core i9/i7/i5/i3 and Intel Pentium processors, offering a platform for computing tasks from content creation to gaming. The board includes support for HDMI 4K2K output, HD audio, Smart Ear audio tuning utility, PCIe M.2 storage, SATAIII 6Gbps ports, dual DDR4 memory slots, multiple PCIe versions, USB 3.2 Gen1 Type-A, and UEFI BIOS with BIOS update utilities. Built with Super Durable Solid Caps, Super Durable Inductor and a moistureproof PCB, the motherboard also provides ESD protection and fan and thermal control tools for system stability and longevity.

Advantages

The motherboard provides broad compatibility with 12th gen Intel processors via the Intel H610 chipset and supports modern connectivity and storage standards such as PCIe M.2 (32Gb/s), PCIe 4.0/3.0, SATAIII 6Gbps and USB 3.2 Gen1. Integrated HD Audio and Smart Ear software enable easy audio tuning and high-fidelity sound. Hardware durability is enhanced by solid capacitors, high-current inductors and a moistureproof PCB, while ESD protection reduces risk from electrostatic discharge. UEFI BIOS, BIO-Flasher and Smart Update simplify firmware and driver management. A.I FAN and A.I TP Control offer automated and user-adjustable thermal and fan management for stable operation.

Key specifications

• Chipset: Intel H610
• CPU support: 12th Gen Intel Core i9/i7/i5/i3 and Intel Pentium processors
• Memory: Dual DDR4 slots
• Storage interfaces: PCIe M.2 (32Gb/s), SATAIII 6Gbps
• PCIe lanes: PCIe 4.0 and PCIe 3.0 support
• USB: USB 3.2 Gen1 Type-A (up to 5Gbps)
• Video output: HDMI 4K2K
• Audio: HD Audio, Smart Ear utility
• Protection and durability: Super Durable Solid Caps, Super Durable Inductor, Moistureproof PCB, ESD Protection
• Firmware & utilities: UEFI BIOS, BIO-Flasher, Smart Update
• Thermal control: A.I FAN, A.I TP Control

How to use

Install a compatible 12th generation Intel processor and DDR4 memory modules into their respective CPU socket and DIMM slots, connect storage devices to the M.2 slot or SATAIII ports, and attach graphics or expansion cards to the PCIe slots as required. Connect display devices via the HDMI port for up to 4K2K output and plug peripherals into USB 3.2 Gen1 Type-A ports. Use the UEFI BIOS for initial system configuration, enable or adjust A.I FAN and A.I TP Control settings for cooling and overclocking preferences, and run BIO-Flasher or Smart Update to update BIOS and drivers when needed.

Recommendations

Use quality DDR4 memory modules and an appropriate cooling solution to ensure stability and take advantage of A.I FAN and A.I TP Control. Update the UEFI BIOS and drivers via BIO-Flasher or Smart Update before performing heavy workloads or overclocking. Ensure proper grounding when assembling the system to minimize ESD risk.
