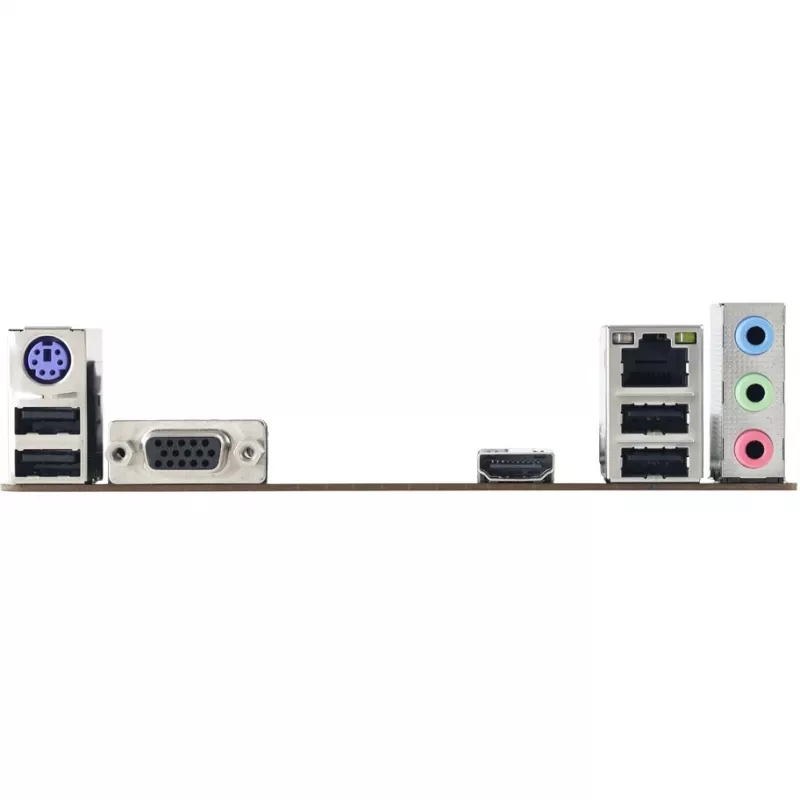

Emolevy BIOSTAR H61MHV3 micro ATX, Intel H61-piirisarja, LGA 1155, DDR3, 2x DIMM, 4x SATA II, HDMI, VGA

The Biostar H61MHV3 is a micro ATX motherboard with the Intel H61 chipset and LGA 1155 socket, compatible with 2nd and 3rd generation Intel Core i7/i5/i3, Pentium and Celeron processors. It supports dual-channel DDR3 memory across two DIMM slots, PCIe x16 graphics expansion, SATA II storage interfaces and a Realtek RTL8111H Gigabit LAN controller. The compact layout and core features make it suitable for small desktop builds requiring standard connectivity and basic multimedia capabilities.

Advantages

The board integrates the Intel H61 single-chipset design for stable point-to-point links and improved bandwidth, supports PCIe Gen 3.0 for higher graphics I/O throughput, and offers HDMI 4K2K output for high-resolution display via a single cable. Onboard HD Audio preserves audio fidelity, while X.D.C eXtreme Durable Capacitors and ESD protection increase power stability and component longevity. Charger Booster technology accelerates charging for Apple devices when connected. The UEFI BIOS with BIO-Flasher simplifies system setup and BIOS updates. Additional protections against overcurrent/overvoltage/overheat help prevent hardware damage.

Suitable for

• Budget or compact desktop PCs using LGA 1155 Intel processors
• Home or office systems requiring Gigabit Ethernet and basic multimedia
• Small form factor builds with DDR3 memory and single-slot discrete graphics

Key specifications

• Chipset: Intel H61
• Socket: LGA 1155 (Socket H2) for 2nd/3rd Gen Intel Core / Pentium / Celeron
• Form factor: Micro ATX
• Memory: 2 × DDR3 DIMM slots, dual-channel, DDR3-1600/1333 supported
• Expansion: 1 × PCIe x16 (PCIe Gen 3.0 compatible)
• Storage: SATA II ports
• LAN: Realtek RTL8111H Gigabit Ethernet
• Video/audio: HDMI (4K2K support), onboard HD Audio
• BIOS: UEFI with BIO-Flasher

How to use

Install the motherboard into a compatible micro ATX case and mount an LGA 1155 processor with the appropriate cooler. Populate up to two DDR3 DIMMs in the memory slots following the dual-channel recommendations in the manual. Connect power supply cables, SATA storage devices and front-panel connectors. Install a PCIe graphics card into the PCIe x16 slot if additional GPU performance is required; otherwise use the integrated video output via HDMI. Use the UEFI BIOS to configure boot order, memory settings and enable any platform-specific features. To update BIOS, run BIO-Flasher from a USB drive as described in the user manual.

Recommendations

For reliable operation, use quality low-ESR solid capacitors and a stable power supply matching the system load. Populate memory modules in matched pairs for optimal dual-channel performance and update the UEFI BIOS before installing a new CPU generation or memory kit. When connecting Apple mobile devices, use the motherboard’s Charger Booster-capable USB ports to reduce charging time.
