Emolevy GIGABYTE A620M DS3H, A620, AM5, ATX

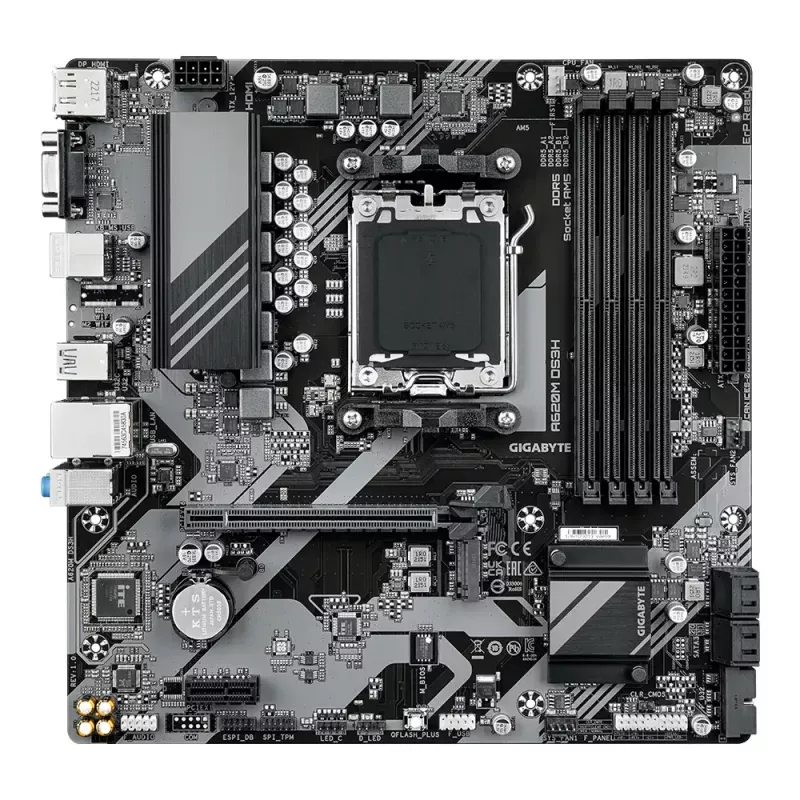

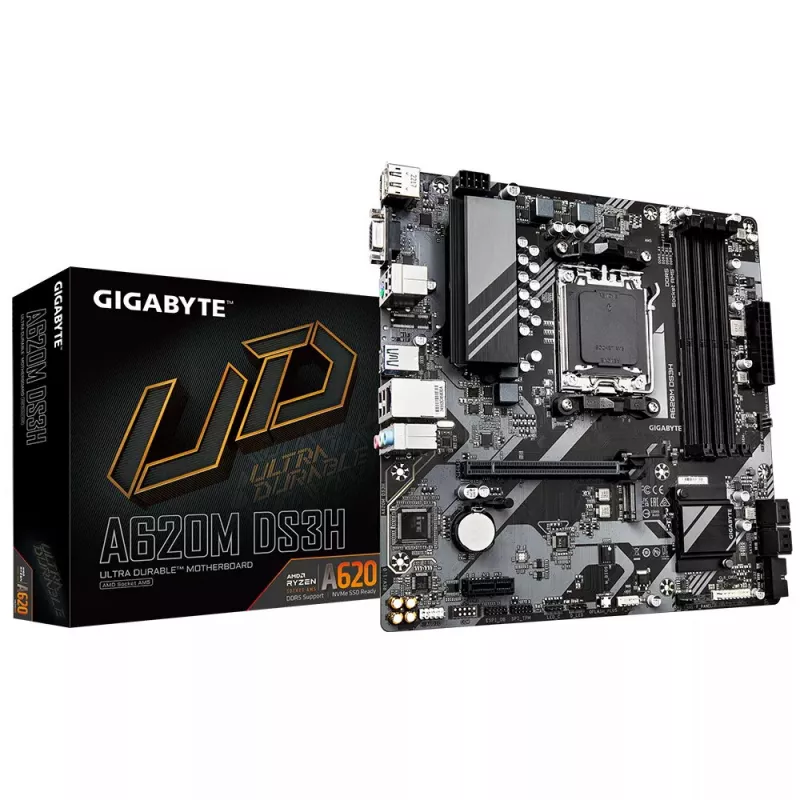

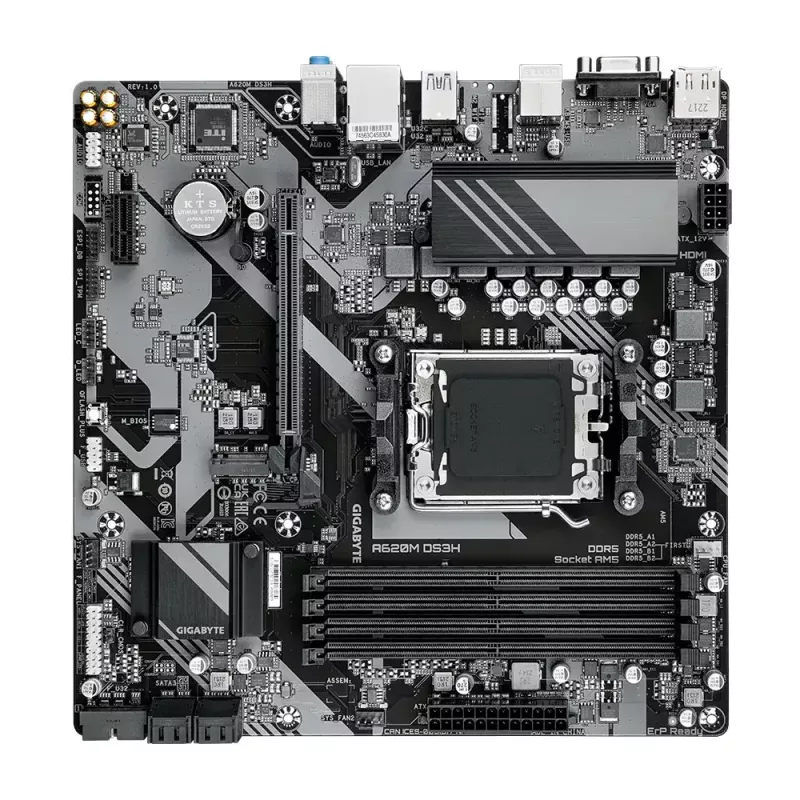

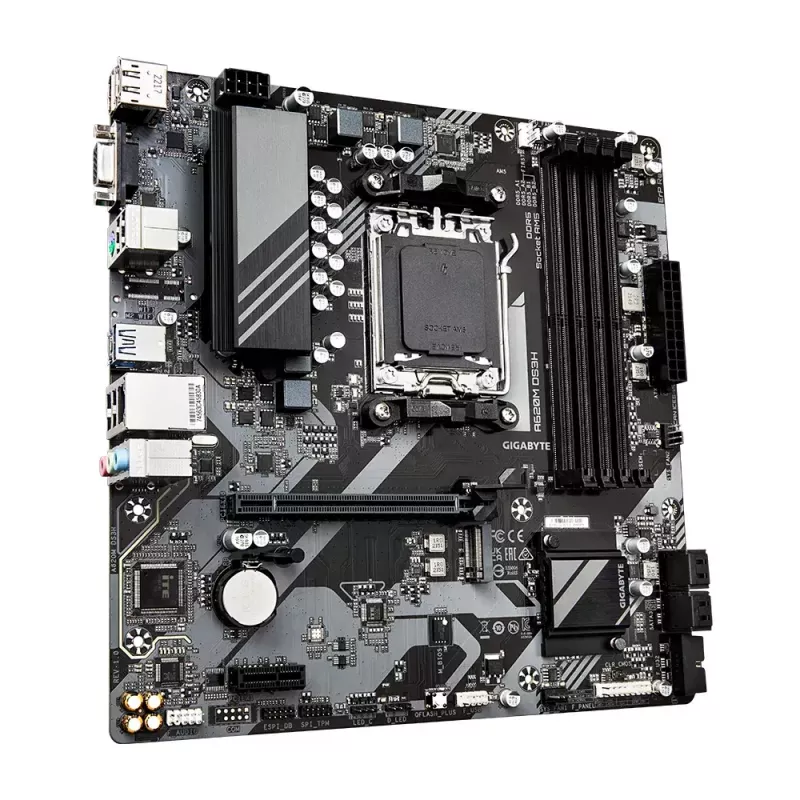

The GIGABYTE A620M DS3H is a Micro ATX motherboard for Socket AM5 supporting AMD Ryzen 7000/8000 series processors. Built on the AMD A620 chipset, it provides a 5+2+2 phase digital VRM, four DDR5 memory slots with up to 192 GB total capacity and overclock support up to DDR5-7600 (OC). Storage and expansion options include a PCIe 4.0 M.2 slot plus SATA III ports, while connectivity covers USB Type-A and Type-C ports and RAID 0/1/10 support for flexible storage configurations.

Advantages

The board combines compact Micro ATX dimensions with a robust power delivery design suitable for high-performance CPUs. Support for DDR5 memory at high overclocked frequencies and a dedicated PCIe 4.0 M.2 slot enable faster system responsiveness and storage throughput. Multiple storage interfaces and RAID support offer versatile options for data redundancy and performance tuning, and USB Type-A/Type-C connectivity ensures compatibility with modern peripherals.

Suitable for

• Compact high-performance desktop builds
• Gaming systems using AMD Ryzen 7000/8000 processors
• Content creation and productivity PCs requiring fast memory and storage
• Systems needing RAID 0/1/10 storage configurations

Key specifications

• Form factor: Micro ATX
• Chipset: AMD A620
• CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000)
• VRM: 5+2+2 phase digital power design
• Memory: 4 × DDR5 slots, up to 192 GB, up to DDR5-7600 (OC)
• Expansion & storage: 1 × PCIe 4.0 M.2 slot, SATA III ports
• Storage features: RAID 0, 1, 10 support

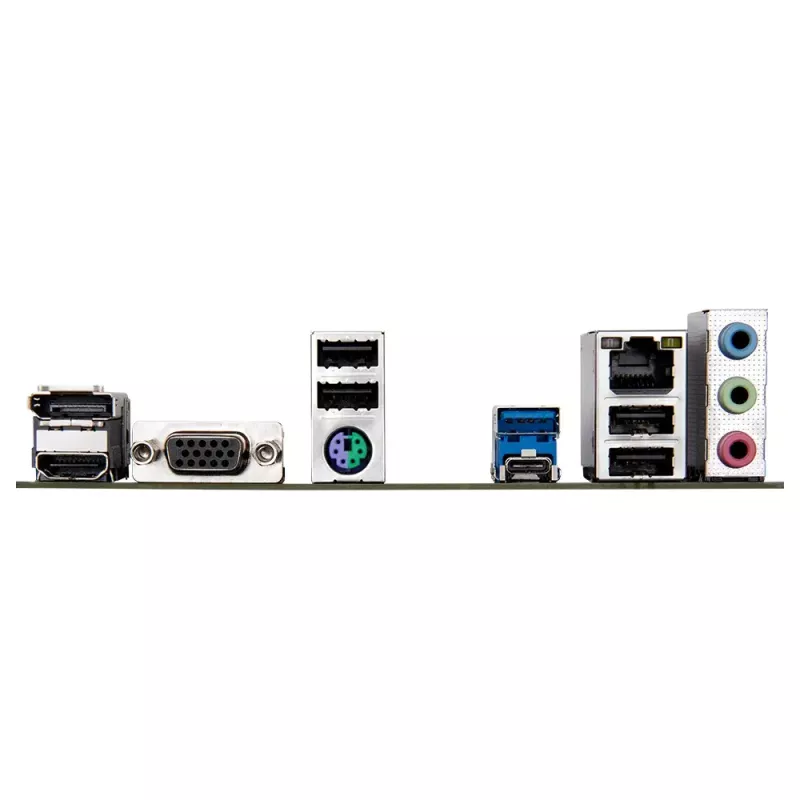

• Connectivity: USB Type-A and USB Type-C ports

How to use

Install the motherboard into a compatible Micro ATX case, fit a compatible AM5 CPU and apply appropriate cooling. Populate DDR5 memory modules across the four DIMM slots following the manual’s recommended slot order for dual/quad channel operation. Connect NVMe or SATA storage to the M.2 slot and SATA ports as required, and configure RAID arrays in the BIOS if RAID 0/1/10 functionality is desired. Attach power connectors, front-panel headers and peripheral devices, then install your operating system and drivers from GIGABYTE for full functionality.

Recommendations

Use high-quality DDR5 memory modules and a capable CPU cooler to maintain stable performance, and update the motherboard BIOS and chipset drivers after first boot to ensure compatibility with the latest AMD Ryzen processors and memory overclocking profiles.
