Emolevy GIGABYTE X870E AORUS MASTER X3D ICE, AMD AM5, ATX

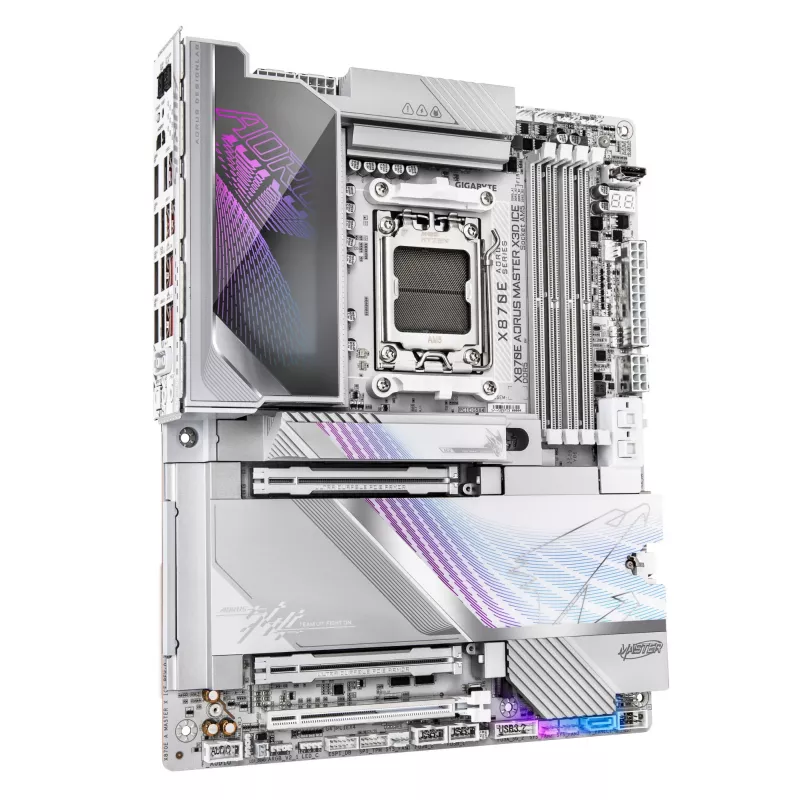

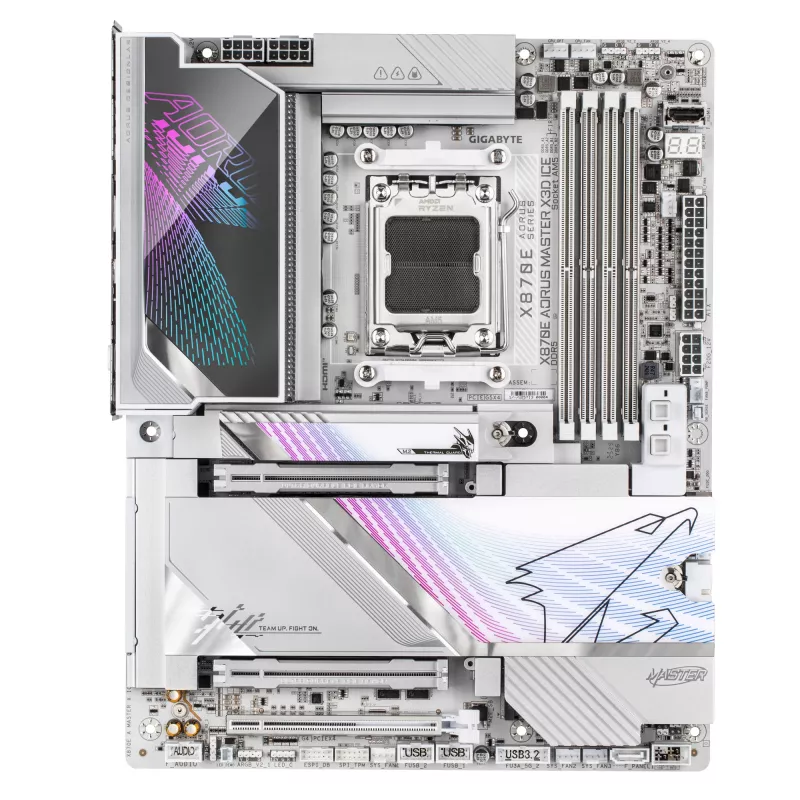

The GIGABYTE X870E AORUS MASTER X3D ICE is an ATX motherboard for Socket AM5 processors, compatible with AMD Ryzen 7000, 8000 and 9000 series. It features a digital twin 18+2+2 phase VRM, support for up to 256 GB DDR5 memory across four DIMM slots, multiple M.2 slots including PCIe 5.0 x4, and advanced connectivity such as Wi‑Fi 7 and 10GbE LAN. Designed for demanding workloads, the board combines high-speed storage, robust power delivery and extensive I/O for gaming, content creation and professional use.

Advantages

The motherboard offers high-performance power delivery with an 18+2+2 phase digital VRM and extensive cooling-ready design, enabling stable operation under heavy CPU loads. Memory support includes DDR5 with OC headroom up to the DDR5 ecosystem limits and four DIMM slots for a 256 GB maximum. Storage flexibility is provided by five M.2 slots (including PCIe 5.0 x4) and support for multiple SATA drives and RAID. Connectivity is broad, with 10GbE and 5GbE LAN, Wi‑Fi 7 with a directional high-gain antenna, Dual USB4 Type-C with DisplayPort Alternate Mode, HDMI and front-panel QC‑USB 65W for modern peripherals and fast data transfer.

Suitable for

• High-end gaming builds requiring X3D performance and robust cooling
• Content creation systems (video editing, 3D rendering, streaming)
• Professional workstations needing fast networking and large memory capacity
• Users who require multiple ultra-fast NVMe drives and PCIe expansion

Key specifications

• Form factor: ATX
• Chipset: AMD X870E
• CPU socket: AMD Socket AM5 (supports Ryzen 7000/8000/9000)
• VRM: Digital twin 18+2+2 phases
• Memory: 4× DDR5 DIMM slots, up to 256 GB
• Storage: 5× M.2 slots (including PCIe 5.0 x4), SATA III, RAID support; up to 7 drives supported
• Networking: 10GbE LAN + 5GbE LAN, Wi‑Fi 7 (802.11be), Bluetooth 5.4
• Audio: Realtek ALC1220-VB / ESS 9118, 7.1 channels

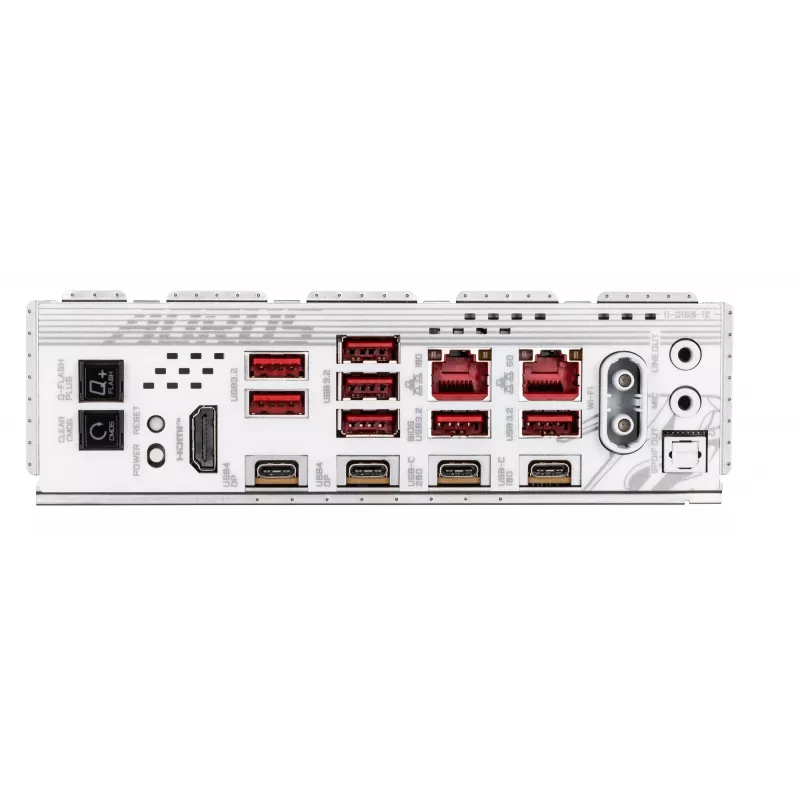

• I/O highlights: Dual USB4 Type-C with DP-Alt, HDMI, Front QC‑USB 65W
• BIOS: UEFI AMI 512 Mbit; Clear CMOS jumper and button
• Weight: 3.82 kg

How to use

Install the GIGABYTE X870E AORUS MASTER X3D ICE into a compatible ATX case and mount a Socket AM5 CPU following the motherboard manual. Populate up to four DDR5 DIMMs according to the recommended slot configuration for dual-channel operation. Connect NVMe M.2 drives to the designated slots and secure storage devices using the M.2 EZ‑Latch mechanisms. Attach power connectors from a suitable PSU to the 24‑pin ATX and CPU power headers, and connect cooling solutions to the appropriate fan/VRM headers. Configure BIOS/UEFI settings for memory profiles (AMD EXPO) and storage mode, and install the operating system and drivers from GIGABYTE for full functionality.

Recommendations

For optimal stability with high-core-count Ryzen CPUs and X3D modules, use a high-quality power supply, ensure adequate case airflow, and apply the manufacturer’s recommended BIOS updates. When populating multiple M.2 drives, verify thermal solutions for each slot and consider active cooling for sustained heavy workloads.
