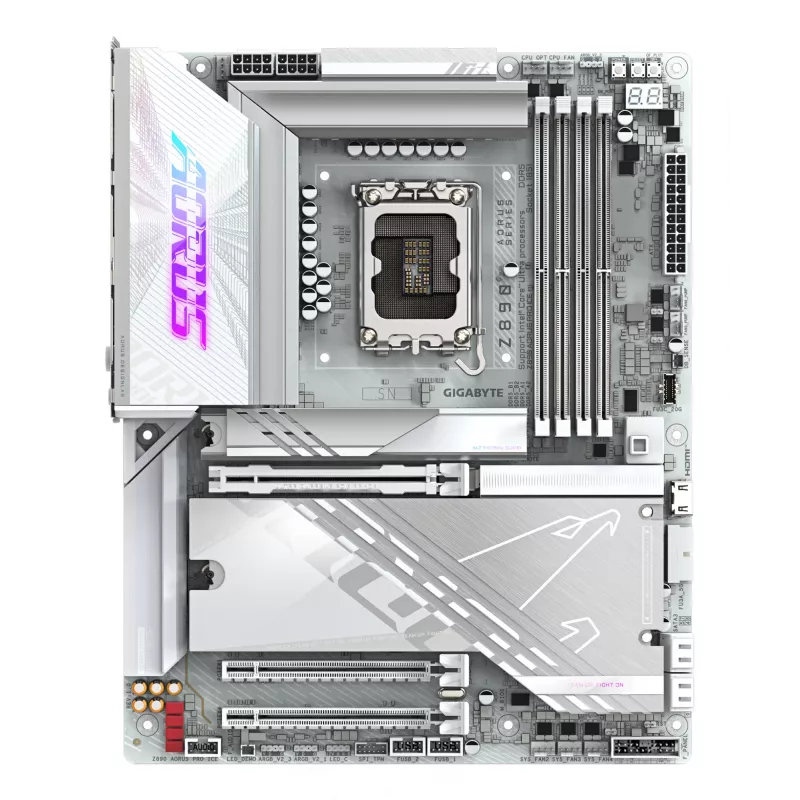

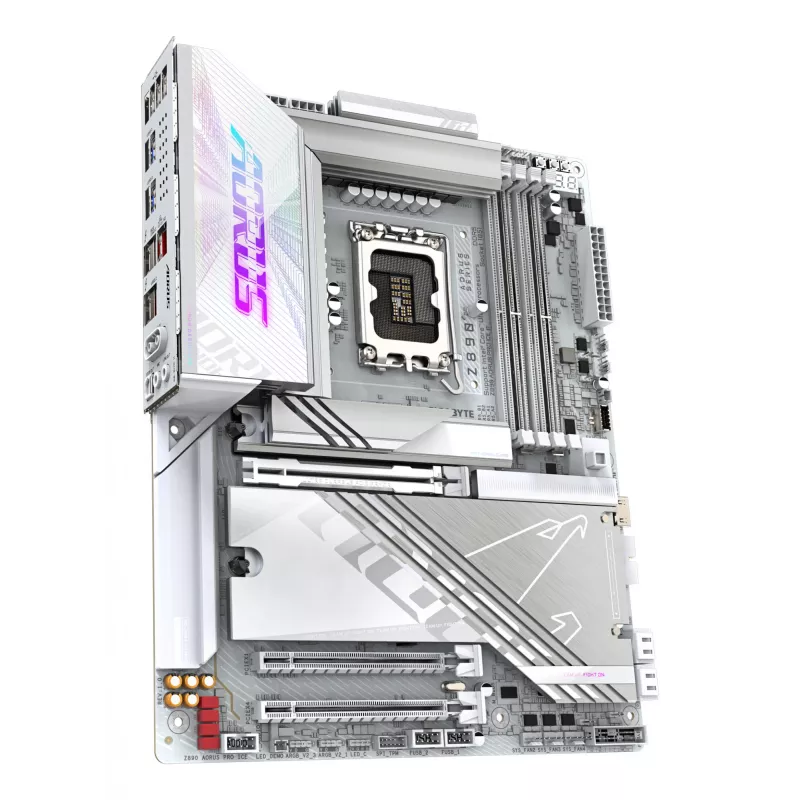

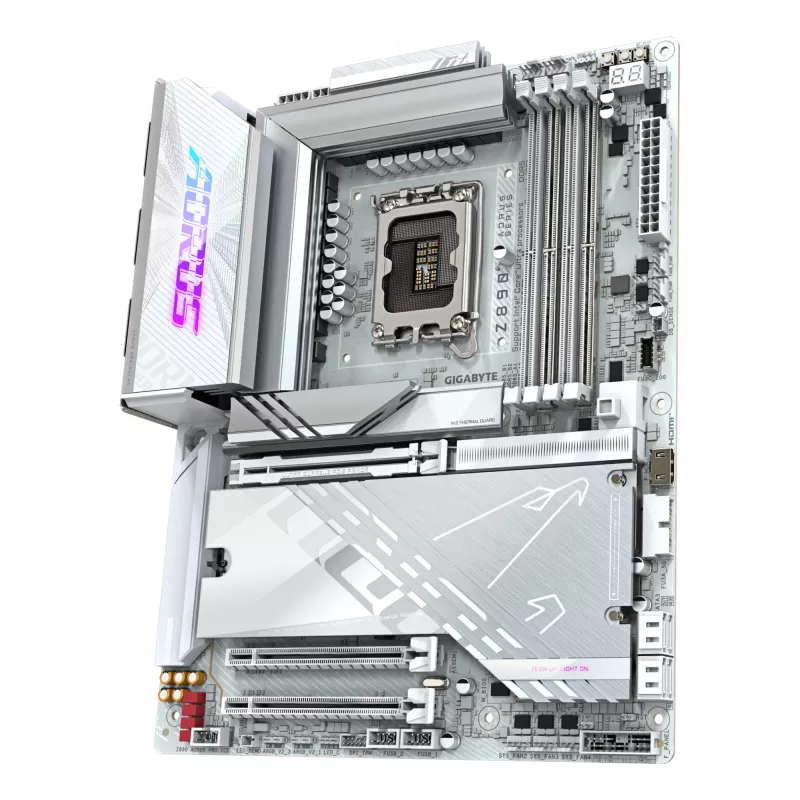

Emolevy GIGABYTE Z890 AORUS PRO ICE — Intel Z890, LGA 1851, ATX, DDR5, 4x DIMM, 4x M.2, 2.5Gb LAN, Wi‑Fi

The GIGABYTE Z890 AORUS PRO ICE is an ATX motherboard built for Intel Core Ultra (Series 2) processors on the LGA 1851 (Socket V1). It uses the Intel Z890 chipset and offers support for DDR5 memory up to 9500 MHz (OC). Designed for high-performance desktop systems, the board includes a robust 16+1+2 phase VRM, multiple PCIe slots, modern networking and high-speed connectivity to meet demanding computing tasks.

Advantages

This motherboard provides a strong power delivery design for overclocking and stable operation, flexible memory support up to 256 GB across four DDR5 slots, and a mix of expansion options including 1x PCIe 5.0 and 4x PCIe 4.0 slots. Integrated Wi‑Fi 7 and 5GbE LAN deliver high-speed network connectivity while Thunderbolt 4 support and multiple M.2/SATA III storage interfaces ensure fast external and internal data transfer. The ATX form factor and mature GIGABYTE engineering make it suitable for gaming, content creation, and professional workstation builds.

Suitable for

• High-performance gaming PCs
• Content creation rigs (video/photo editing, 3D work)
• Professional workstations requiring fast networking and storage
• Overclocking-focused builds

Key specifications

• Form factor: ATX
• Chipset: Intel Z890
• Processor socket: LGA 1851 (Socket V1)
• Memory: 4 × DDR5 slots, up to 256 GB, up to 9500 MHz (OC)
• VRM: 16+1+2 phases
• Expansion: 1× PCIe 5.0, 4× PCIe 4.0
• Networking: Wi‑Fi 7, 5GbE LAN
• Connectivity: Thunderbolt 4 support
• Storage: M.2 and SATA III interfaces
• Weight: 2.27 kg

How to use

Install the motherboard into an ATX-compatible case, mount an LGA 1851 processor and appropriate CPU cooler, and populate the memory slots with DDR5 modules up to the supported capacity and speeds. Connect power from a compatible PSU to the 24‑pin ATX and CPU power headers. Install graphics and other expansion cards into the PCIe slots as required, and attach storage devices to the M.2 or SATA III connectors. Configure BIOS/UEFI settings for memory profiles, storage modes and Thunderbolt or network features, and update firmware to the latest version for stability and compatibility.

Recommendations

To ensure stable operation and to fully utilize performance features, use a high-quality power supply, install adequate cooling for VRM and CPU, and update the BIOS/UEFI and drivers. When overclocking, increase frequencies and voltages incrementally and monitor temperatures and system stability.
