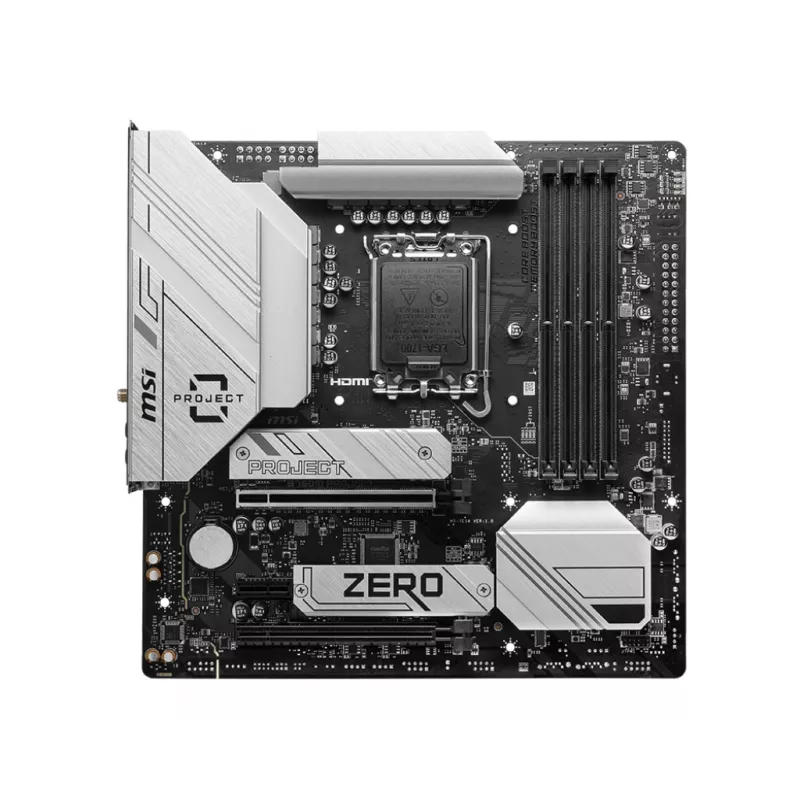

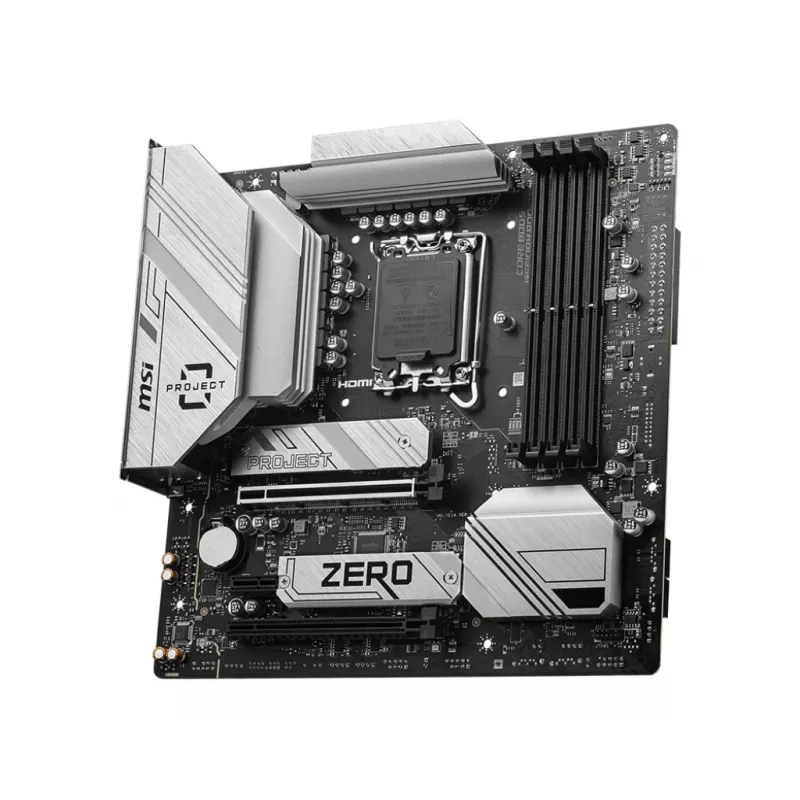

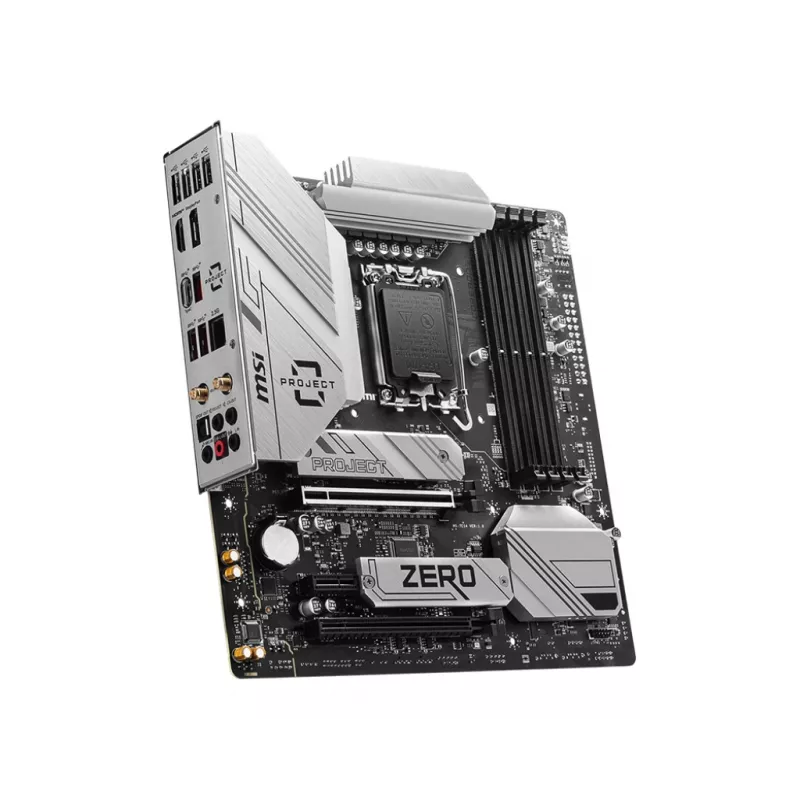

Emolevy MSI B760M Project Zero Intel B760 LGA 1700 micro ATX

B760M PROJECT ZERO relocates power connectors, fan headers and other pin headers to the back of the motherboard for a cleaner front view that highlights the motherboard, liquid cooler and graphics card design. The board features an extended heatsink for improved heat dissipation, M.2 Shield Frozr to protect and prevent thermal throttling of M.2 SSDs, a heavy plated VRM heatsink covering the upper MOS, high-quality 7W/mK MOSFET thermal pads plus additional choke pads for stable high performance, and Lightning Gen 5 PCI-E for increased bandwidth.

Advantages

The rear-mounted connectors create an uncluttered front appearance and better showcase cooling and GPU aesthetics. Enlarged heatsinks and heavy VRM plating improve thermal management for high-end processors. M.2 Shield Frozr prevents SSD throttling and extends drive reliability. Quality thermal pads and choke pads support sustained performance under load. Lightning Gen 5 PCI-E offers significantly higher bandwidth for modern graphics cards and expansion devices.

Key specifications

• Form factor: micro-ATX (B760M)
• Rear-mounted power and fan connectors
• Extended heatsink for CPU area
• M.2 Shield Frozr for M.2 SSD protection and thermal control
• Heavy plated VRM heatsink covering upper MOS components
• 7W/mK MOSFET thermal pads and additional choke pads
• PCI-E Lightning Gen 5 x16 interface (up to 128 GB/s bandwidth)

How to use

Install the motherboard into a compatible micro-ATX case following the manufacturer’s mounting points and standoffs. Connect the relocated power and fan headers from the rear of the board according to the case and PSU layout. Mount CPU, cooler and memory per standard assembly instructions, ensuring thermal pads and heatsinks make proper contact. Insert M.2 SSDs beneath the M.2 Shield Frozr and secure them to prevent movement. Install the graphics card into the Gen 5 PCI-E x16 slot and fasten it to the chassis. After assembly, update BIOS and drivers to ensure full compatibility and performance.

Recommendations

Use a case and PSU layout that accommodate rear-mounted connectors for optimal cable routing. Ensure adequate case airflow to complement the extended heatsinks and VRM cooling. When installing high-performance M.2 SSDs, verify heatsink contact and monitor temperatures during initial use.
