Emolevysarja Creality 3D Ender-3 V3 SE (MPN 4002020066)

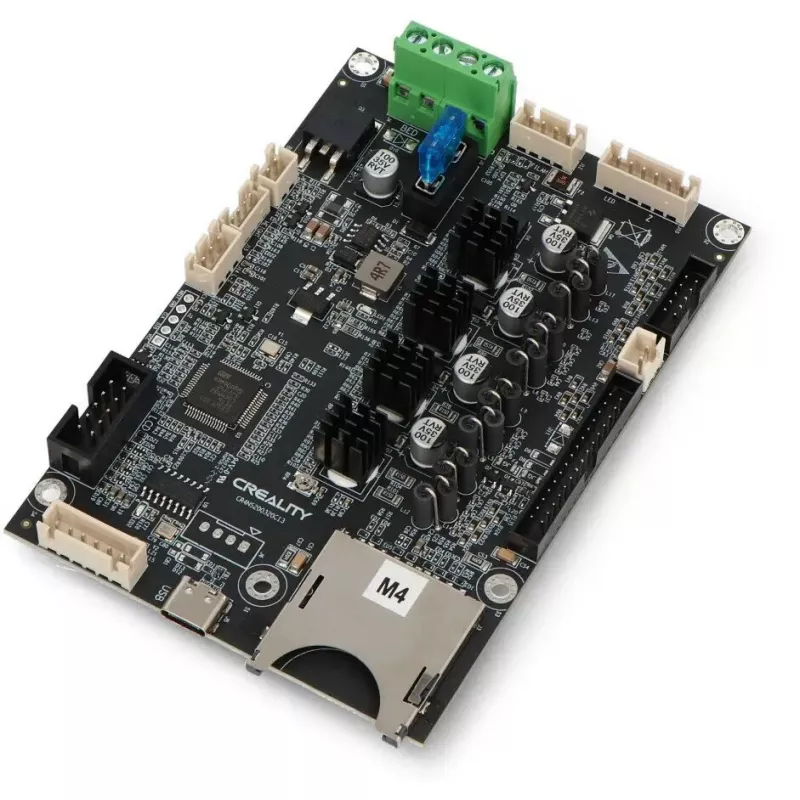

The Mainboard Kit Creality 3D Ender-3 V3 SE is a replacement mainboard designed specifically for the Ender-3 V3 SE printer. It serves as the primary control board that manages stepper motors, heaters, endstops, sensors and other printer electronics to restore or upgrade the printer's core functionality. The kit is intended to match the physical and electrical interfaces of the Ender-3 V3 SE, allowing compatibility with the printer’s connectors and components.

Advantages

This mainboard kit offers direct compatibility with the Ender-3 V3 SE platform, enabling straightforward replacement of a faulty or aged controller board. It supports standard printer control functions and maintains the printer’s original wiring layout to simplify installation. Using a model-specific board reduces the need for wiring modifications and helps ensure reliable communication between motors, sensors and firmware. The board can be used to restore full printer operation after electronic failures or as part of routine maintenance.

Suitable for

• Repairing an Ender-3 V3 SE with a failed or malfunctioning mainboard
• Replacing a worn or damaged control board during maintenance
• Restoring printer functionality after electrical faults
• Workshops and service centers performing component-level repairs

Key specifications

• Form factor and connector layout matched to the Ender-3 V3 SE
• Interfaces for stepper motors, endstops, thermistors, heaters and fans
• Standard digital and power inputs/outputs used in consumer FDM printers
• Designed for direct replacement without major wiring changes

How to use

Power off and disconnect the printer before starting the replacement procedure. Remove the printer covers or panels necessary to access the existing mainboard, note connector positions or take reference photos, and carefully disconnect cables from the old board. Install the replacement mainboard in the same orientation, reconnect all cables to the matching connectors and secure the board with the original mounting hardware. After reassembly, power on the printer and verify basic functions such as axis movement, endstop triggers and temperature readings before performing a test print. If the printer requires firmware updates, follow the manufacturer’s firmware installation instructions compatible with the Ender-3 V3 SE.

Recommendations

Ensure static-safe handling during installation and avoid forcing connectors. Verify wiring and sensor polarity before powering the printer. Use the original or manufacturer-recommended firmware and perform initial checks for endstop operation, motor direction and temperature sensor readings prior to printing.
