EnGenius Cloud Managed AP Wall-Plate 11ax Wi-Fi 6 400+867 Mbps 2T2R GbE PoE.af 2x4 & 2x 5dBi ia

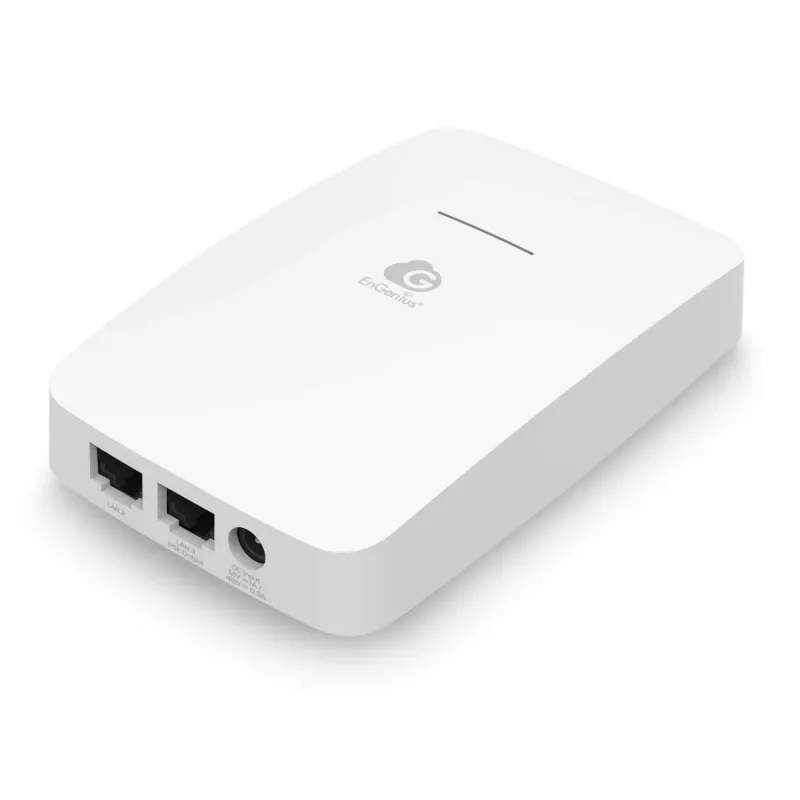

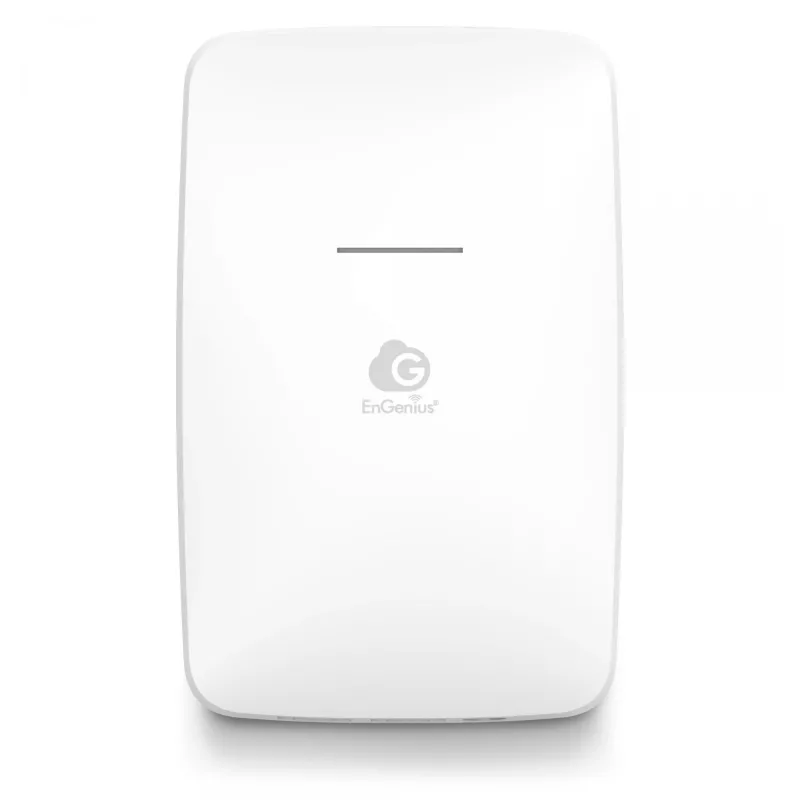

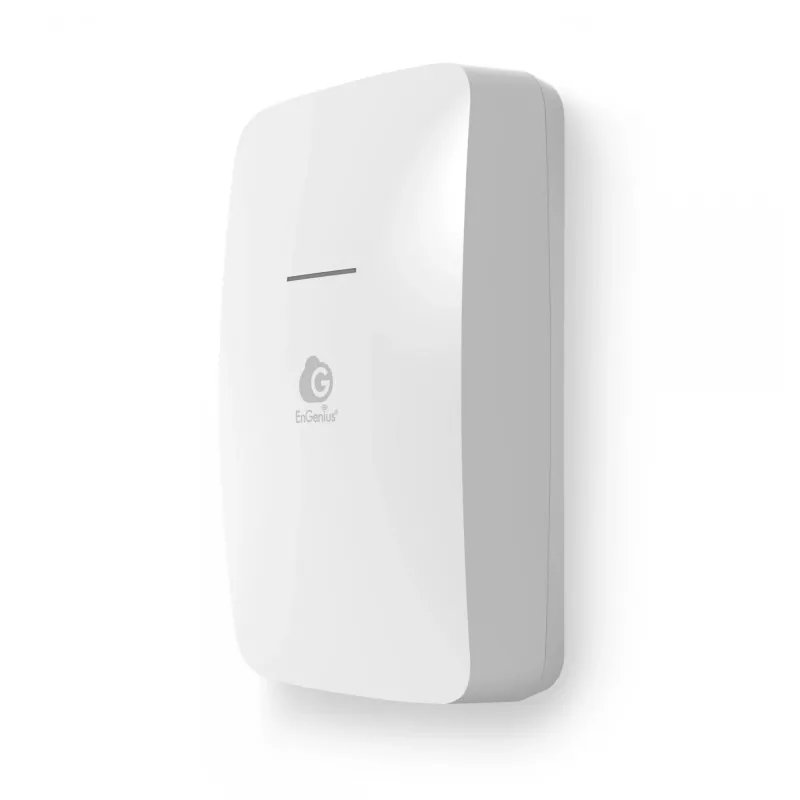

The EnGenius Cloud Managed Wi‑Fi 6 Wall‑Plate Access Point ECW215 provides dual‑band wireless connectivity with throughput speeds up to 1,200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Designed for ceiling or wall mounting in hospitality, offices or education facilities, the unit includes two Gigabit Ethernet ports, supports 802.3af/at PoE‑in and accepts 12/48V DC input. Managed remotely via EnGenius Cloud and the EnGenius Cloud App, the ECW215 supports quick‑scan device registration and mesh wireless for simplified deployment and improved signal coverage.

Advantages

The ECW215 combines Wi‑Fi 6 performance with centralized cloud management to enable scalable deployment and remote monitoring. Built‑in Gigabit Ethernet ports and PoE‑in support reduce cabling needs while maintaining high throughput. Mesh Wireless support optimizes signal paths automatically, and compatibility with WPA2/WPA3 security ensures protected client connections. The compact white wall‑plate form factor integrates with interior environments while offering enterprise‑grade networking standards.

Suitable for

• Small and medium offices
• Hotel rooms and corridors
• Classrooms and training centres
• Retail stores and customer areas

Key specifications

• Model: ECW215 (EnGenius Cloud6 2×2 Wallplate)
• Wireless: Dual‑band Wi‑Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Maximum data rate: 1,200 Mbps (5 GHz); 574 Mbps (2.4 GHz)

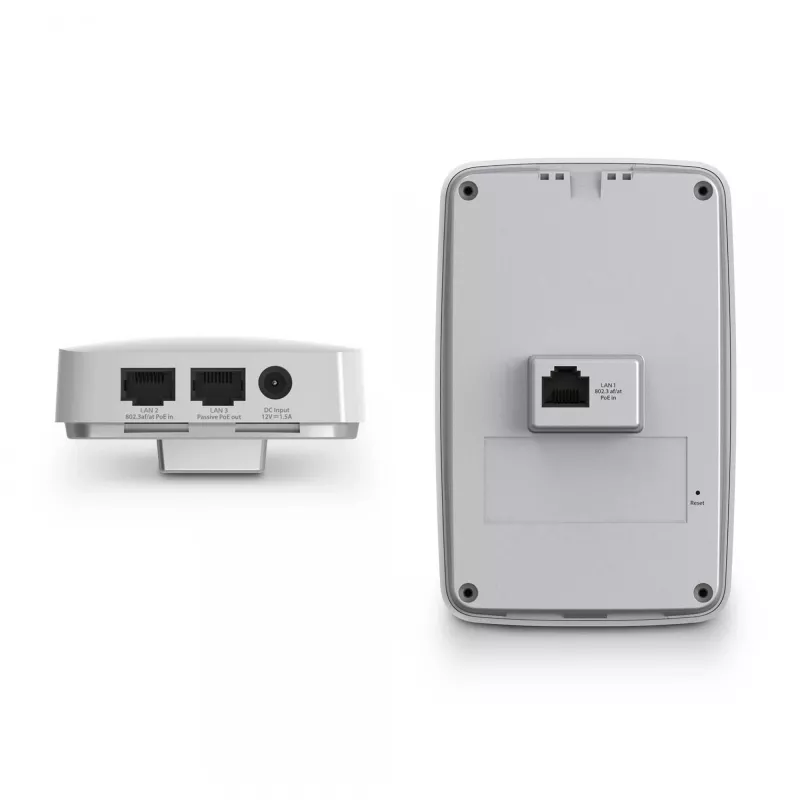

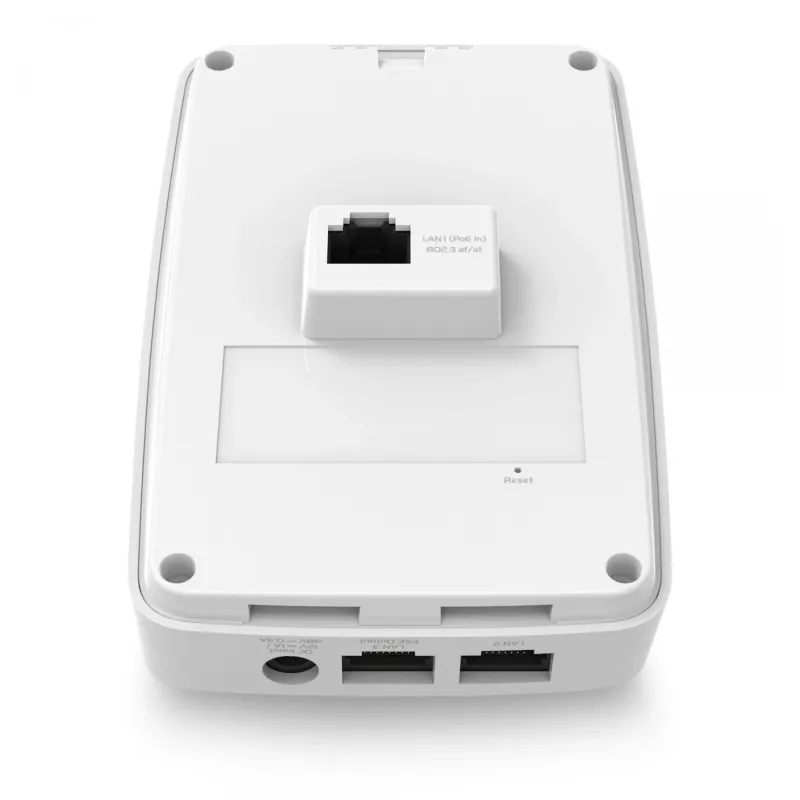

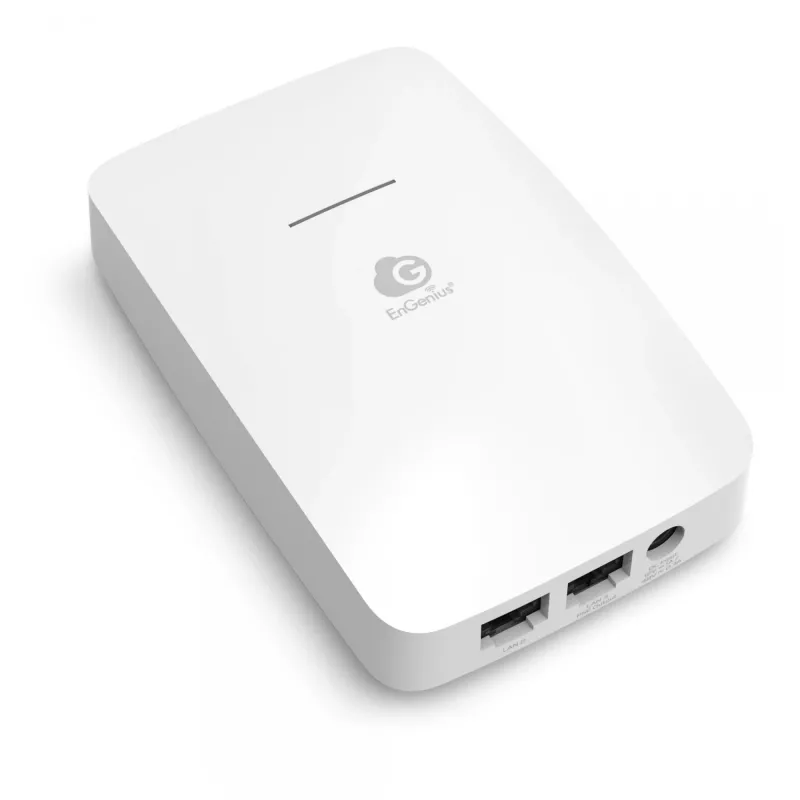

• Ethernet ports: 3 RJ‑45 (including 2 Gigabit PoE‑capable ports)
• PoE: Supports 802.3af/at PoE‑in
• Power input: 12 / 48 V DC
• Security: WPA2, WPA3
• Colour: White
• Weight: 0.363 kg
• Maximum power consumption: 14.2 W

How to use

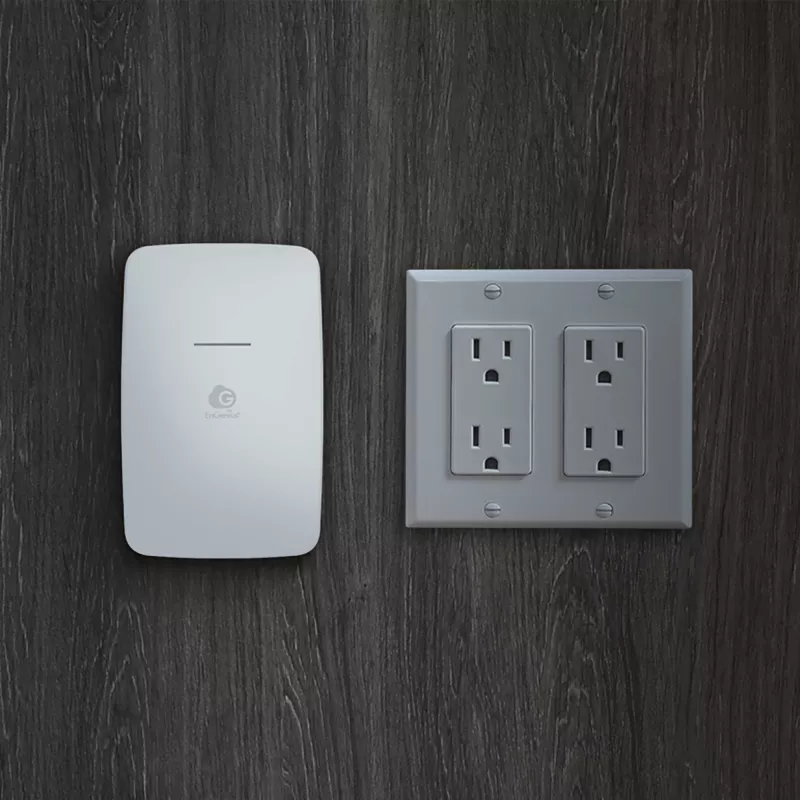

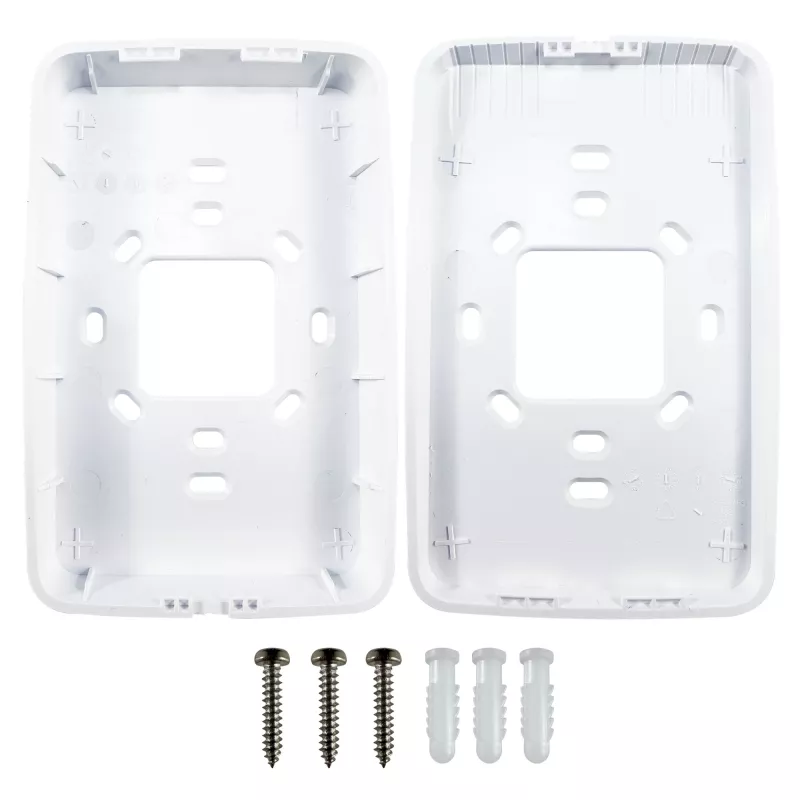

Install the ECW215 into a standard wall‑plate opening and connect Ethernet to the LAN port; power can be provided via 802.3af/at PoE‑in or 12/48V DC. Use the EnGenius Cloud App for quick‑scan registration and add the device to your cloud account for remote configuration. Configure SSIDs, security settings (WPA2/WPA3) and network policies from the cloud portal, and enable Mesh Wireless if additional APs are present to extend coverage automatically.

Recommendations

Place the wall‑plate AP in a central position within the coverage area, avoid locating it behind large metal objects, and ensure PoE or DC power capacity meets the device's 14.2 W maximum consumption. For multi‑room deployments, enable mesh and manage channel settings in EnGenius Cloud to minimise interference and maintain consistent performance.
