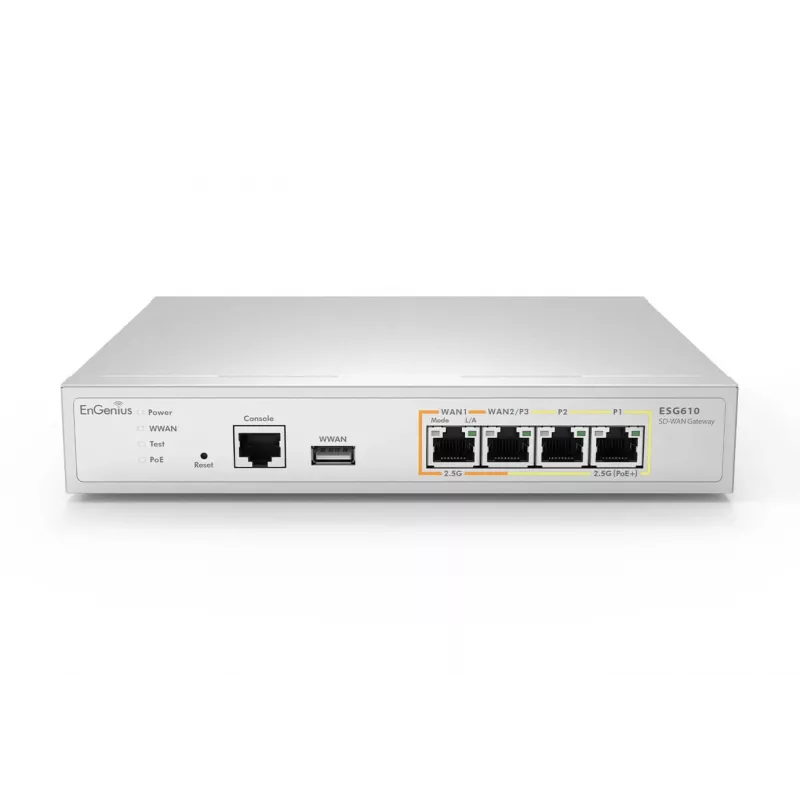

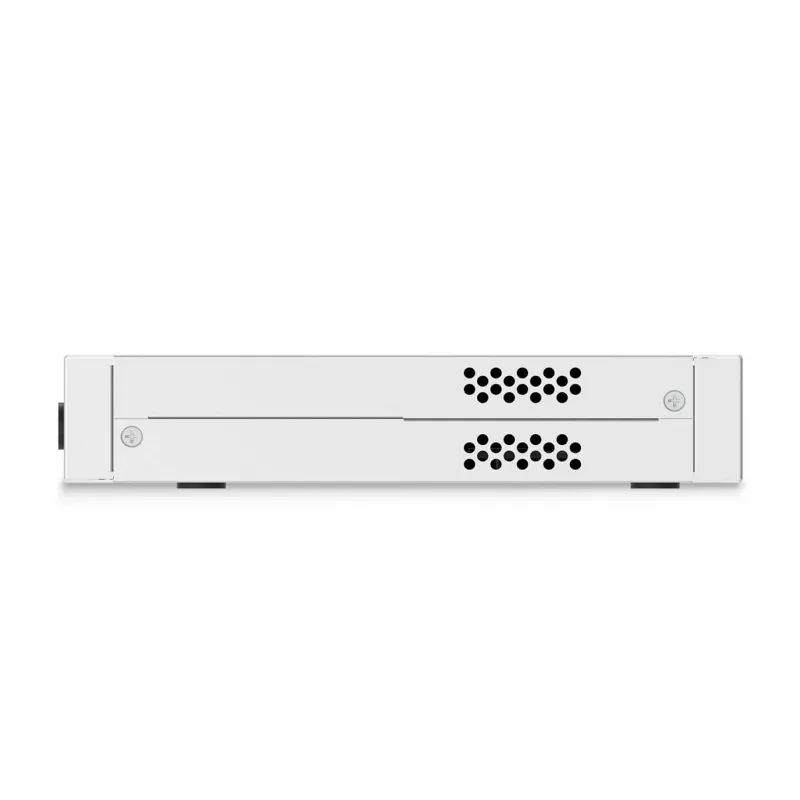

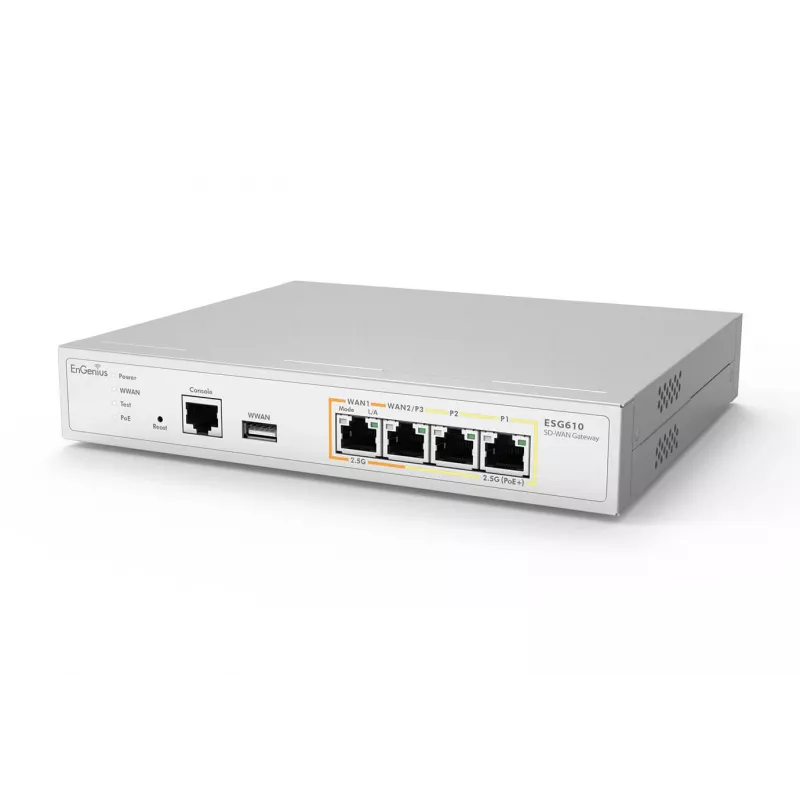

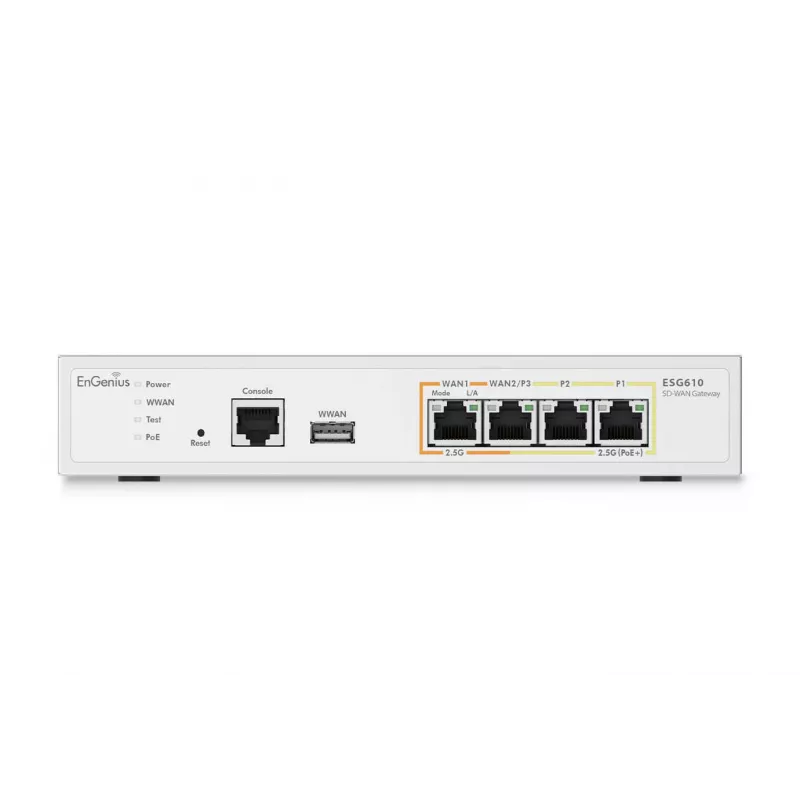

EnGenius Cloud Managed Security Gateway 2 x 2.5 GbE LAN & 2 x 2.5 GbE WAN

The EnGenius ESG610 Gateway6 4mG is a SD-WAN gateway built for reliable wired networking with a 2200 MHz processor and 8192 MB of internal memory. It delivers up to 2500 Mbit/s Ethernet LAN throughput and integrates dual-WAN, load balancing and site-to-site VPN capabilities. Unified management via EnGenius Cloud simplifies configuration and monitoring from remote locations, providing an end-to-end solution for improving network performance and security.

Advantages

The device combines a high-frequency 2200 MHz CPU and 8 GB memory to support concurrent connections and intensive processing tasks. Dual-WAN and load balancing increase link availability and optimize bandwidth usage, while site-to-site VPN and strong firewall algorithms provide layered security. Cloud-based centralized management allows administrators to deploy, configure and monitor the gateway remotely.

Suitable for

• Small and medium-sized business networks requiring SD-WAN features
• Offices or branch sites needing site-to-site VPN connectivity
• Environments that require high LAN throughput up to 2500 Mbit/s
• Setups where centralized management via EnGenius Cloud is preferred

Key specifications

• Model: EnGenius ESG610 (Gateway6 4mG)
• Processor: 2200 MHz
• Internal memory: 8192 MB
• Ethernet LAN data rate: up to 2500 Mbit/s
• Features: SD-WAN gateway, dual-WAN, load balancing, site-to-site VPN
• Management: EnGenius Cloud unified management
• Security: firewall throughput and multiple authentication methods supported
• Colour: White
• MPN: ESG610
• EAN: 4713361936012

How to use

Install the EnGenius ESG610 in a central network location and connect WAN interfaces to your internet links. Use the EnGenius Cloud portal to perform initial configuration, including WAN settings, load balancing rules and VPN site-to-site tunnels. Apply firewall policies and authentication methods according to your security requirements. Monitor connection status and performance through the cloud dashboard and adjust policies as traffic patterns change.

Recommendations

For best results, configure dual-WAN failover and load balancing for redundancy, keep firmware up to date through EnGenius Cloud, and define firewall and authentication settings that follow your organisation's security policy. Place the gateway in a ventilated area and ensure proper cable management to maintain stable performance.
