ENGO Controls EPC11 pumppusäädin lämmitys- ja käyttövesikierrolle

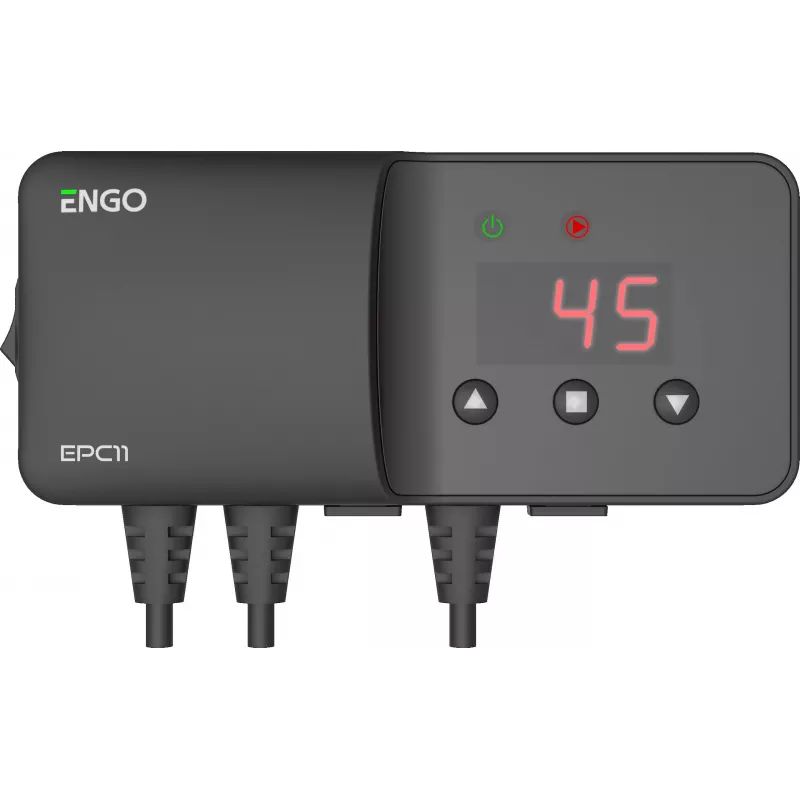

The ENGO Controls EPC11 is a dedicated controller designed for managing central heating (CO) and domestic hot water (CWU) circulation pumps. It provides precise temperature regulation and essential protective functions to ensure efficient and reliable pump operation.

Advantages

Equipped with a digital LED display and NTC temperature sensor, the EPC11 offers accurate temperature control with a hysteresis of 2°C. Built-in anti-stop and anti-freeze functions protect the pump from seizing and freezing, extending its lifespan. The wall-mounted design and simple interface make installation and operation straightforward.

Suitable for

• Central heating circulation pumps
• Domestic hot water circulation pumps
• Residential and light commercial heating systems

Key specifications

• Power Supply: 230V AC, 50Hz
• Max Output Load: 1A (approx. 230W)
• Temperature Measurement Range: 0 - 99 °C
• Temperature Control Range: 5 - 80 °C
• Hysteresis: 2 °C
• Sensor Type: NTC temperature sensor
• Sensor Cable Length: 1.2 m
• Display Type: Digital LED
• Control Functions: Anti-stop, Anti-freeze
• Anti-Stop Activation: Activates pump for 15 seconds every 10 days
• Anti-Freeze Activation: Activates pump below 5 °C
• Operating Temperature: -10 to 50 °C
• Protection Class: IP20
• Mounting Type: Wall-mounted (surface)
• Power Consumption (Controller): < 2 W
• Temperature Accuracy: ±1 °C
• Output Type: Switched 230V AC
• Alarm Features: Sensor failure alarm
• Housing Material: ABS Plastic

Recommendations

For optimal performance, install the controller in a dry, indoor location and ensure the temperature sensor is properly attached to the pipe. Regularly check for sensor faults and test the anti-stop function periodically.
