Equip 3-osainen saksalainen virranjakoyksikkö, 10 tuumaa

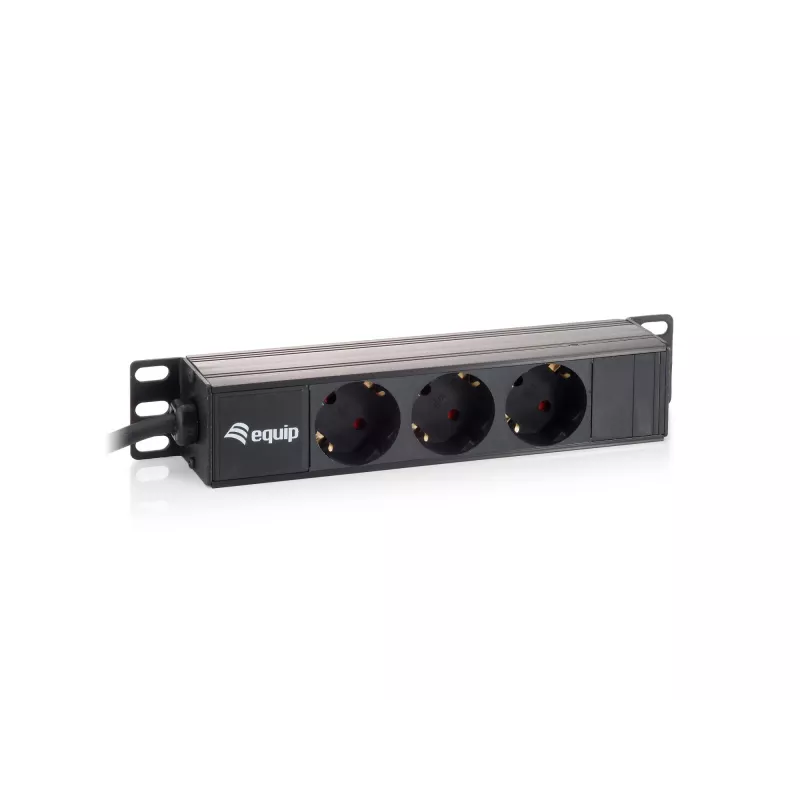

The equip® Power Distribution Unit Equip 3-Outlet 10" is a compact 1U rack-mounted power distribution unit designed to provide reliable AC power to devices in a 10" cabinet. The unit features three AC outlets, a 1.5 m fixed cable and a durable plastic housing with a black finish. It is tested for functionality and reliability and supports a nominal input voltage of 250 V and a maximum current of 16 A.

Advantages

The unit’s compact 1U form factor and three AC outlets allow efficient power management in small rack installations. The 1.5 m attached cable and simple mechanical design make installation straightforward. A sturdy plastic housing keeps the unit lightweight (0.6 kg) while providing protection for internal components.

Suitable for

• 10" network or server cabinets
• Small rack-mounted audio/video setups
• Workstations and network closets requiring a few AC outlets

Key specifications

• AC outlets quantity: 3 AC outlet(s)
• Cable length: 1.5 m
• Nominal input voltage: 250 V
• Maximum current: 16 A
• Product colour: Black
• Weight: 0.6 kg
• Rack size: 1U, for 10" cabinets

How to use

Mount the unit into a 10" cabinet at a suitable 1U position. Connect the fixed 1.5 m cable to a compatible mains socket rated for 250 V and up to 16 A. Plug your equipment into the three AC outlets, making sure not to exceed the unit’s maximum current rating. Ensure the cabinet and installed devices have adequate ventilation and secure cabling to prevent strain on the unit’s cord and outlets.

Recommendations

Do not exceed the maximum current of 16 A and avoid daisy-chaining multiple power distribution units. Use the product indoors in a dry, ventilated environment and periodically inspect the cable and housing for damage.
