Equip 37"-80" täysin liikkuva TV-seinäteline

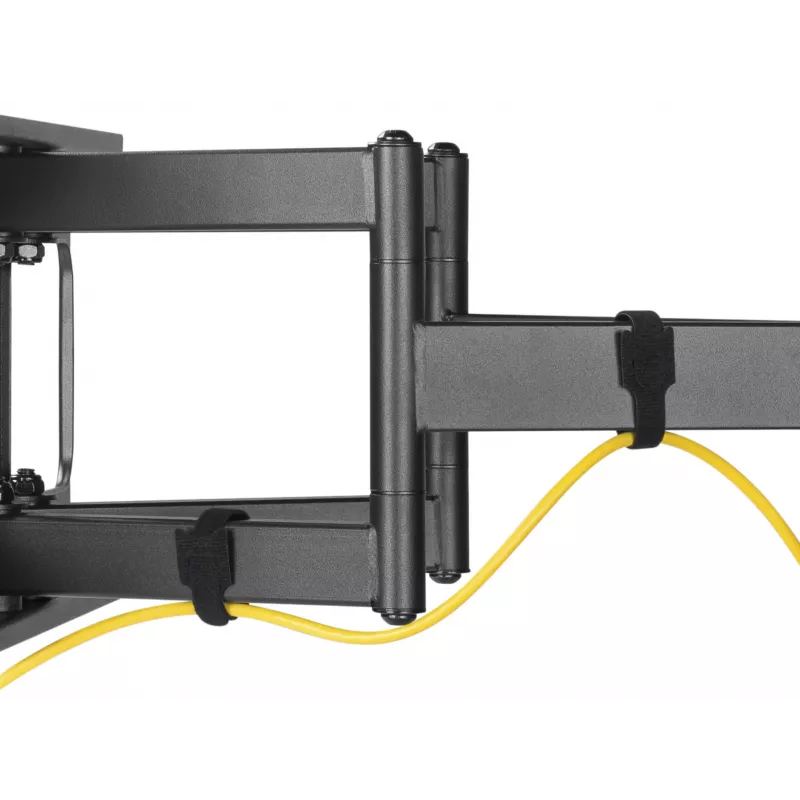

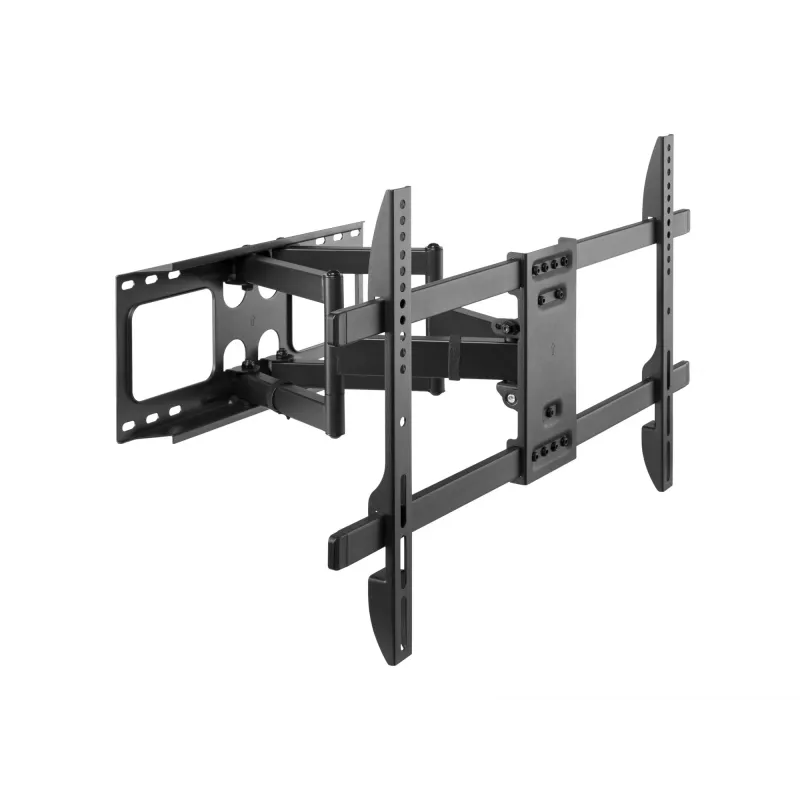

The equip® Full Motion TV Wall Mount Bracket (model 650335) is a compact, sturdy mount designed to support LCD and LED TVs from 37" to 80". It accepts VESA patterns from 200 x 200 mm up to 600 x 400 mm and holds screens up to 60 kg. The bracket is finished in black and allows adjustable extension from the wall between 5.8 cm and 40.2 cm, giving flexibility for positioning and cable access.

Advantages

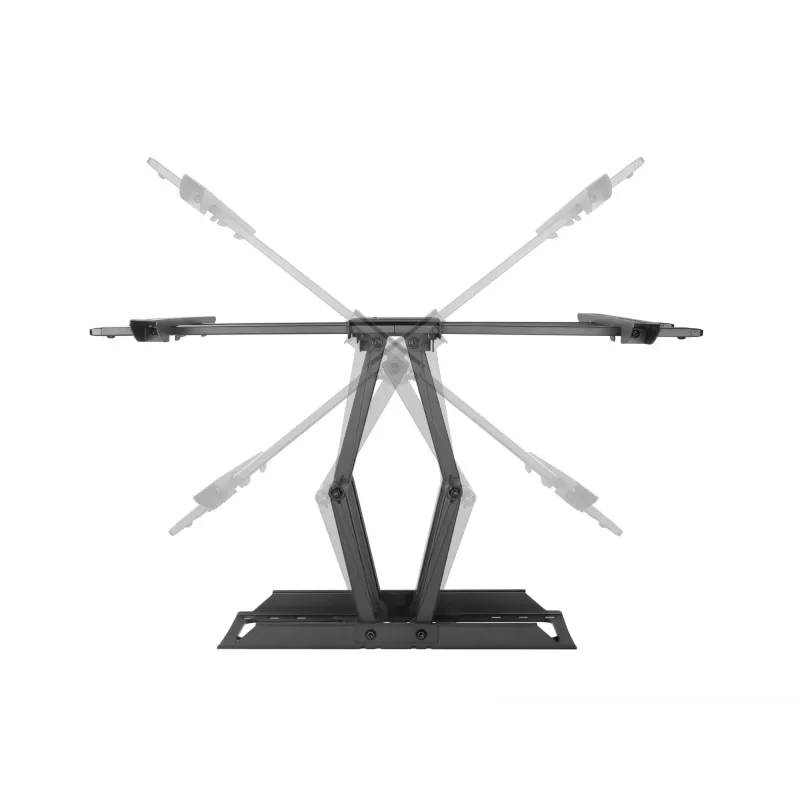

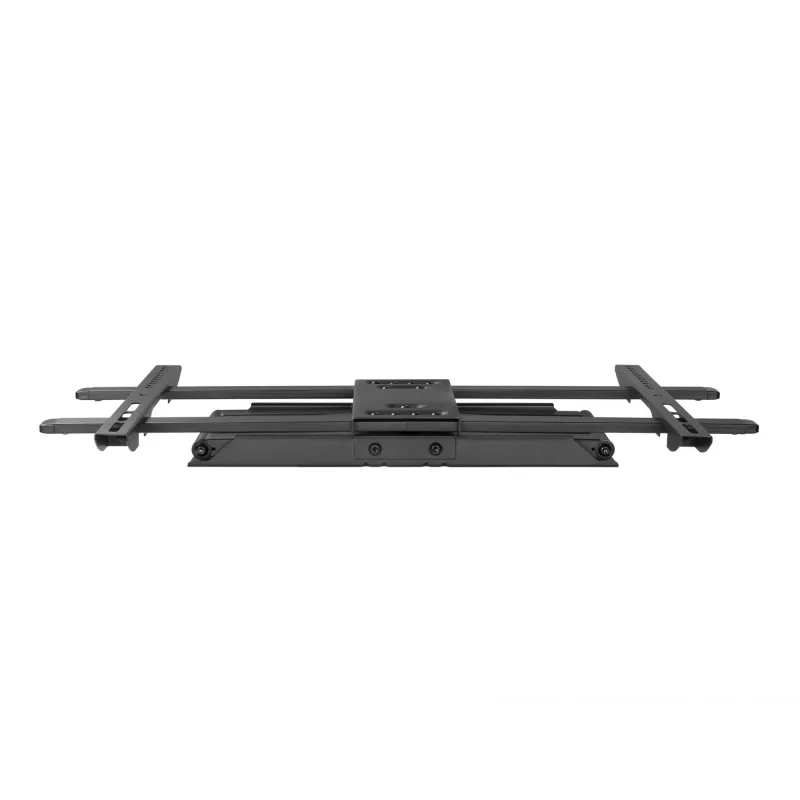

The full motion mechanism provides tilt and swivel adjustments with a tilt range of -15° to 5°, enabling improved viewing angles. Its compact design and 5.2 kg unit weight make it easy to handle during installation. The bracket is compatible with common wall materials such as brick, concrete and wood and includes a graphic guide to assist with do-it-yourself mounting.

Suitable for

• Mounting 37"–80" LCD or LED TVs

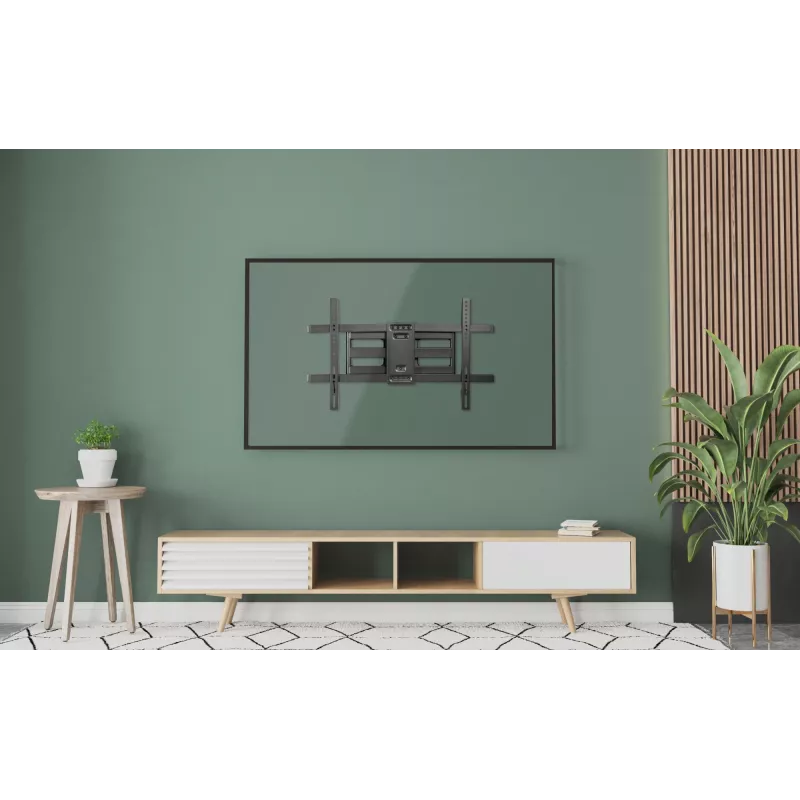

• Rooms where adjustable viewing angle is needed (living rooms, bedrooms, conference rooms)
• Installations on brick, concrete or wooden walls

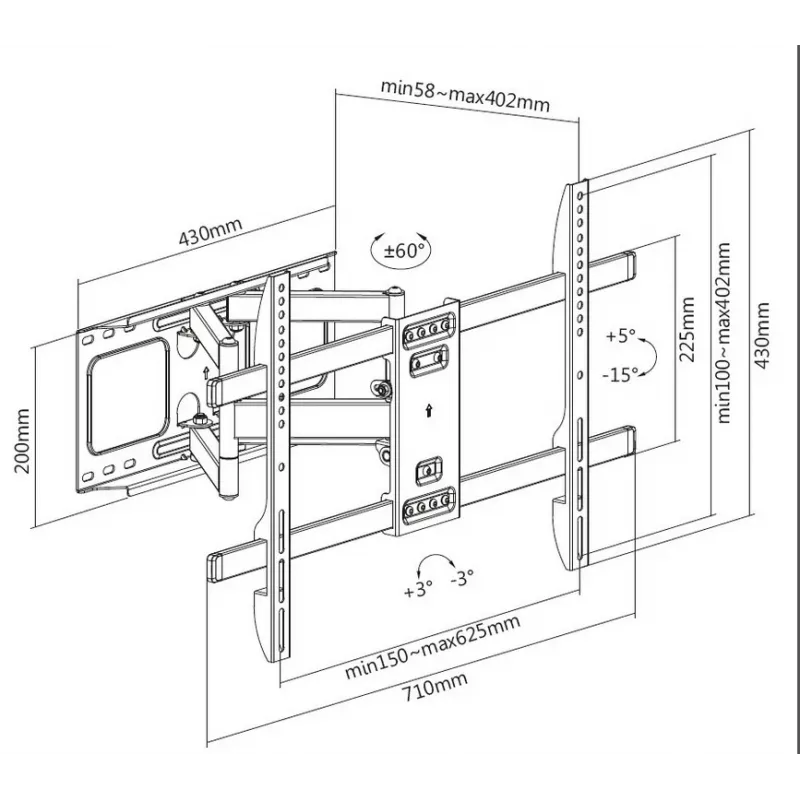

Key specifications

• Supported screen sizes: 37"–80"
• Maximum weight capacity: 60 kg
• Unit weight: 5.2 kg
• VESA compatibility: 200 x 200 mm up to 600 x 400 mm

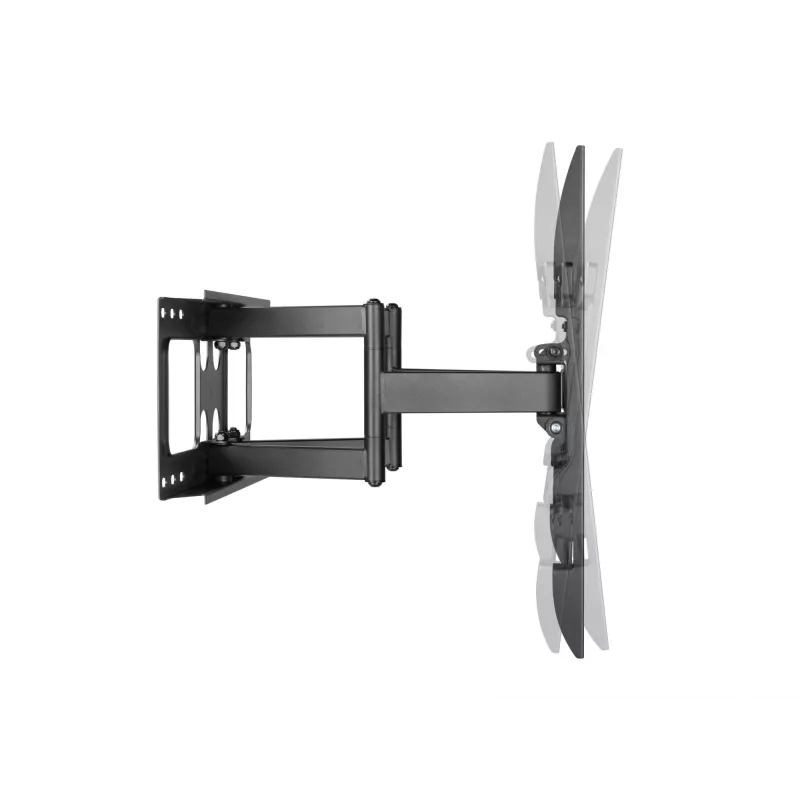

• Tilt range: -15° to 5°

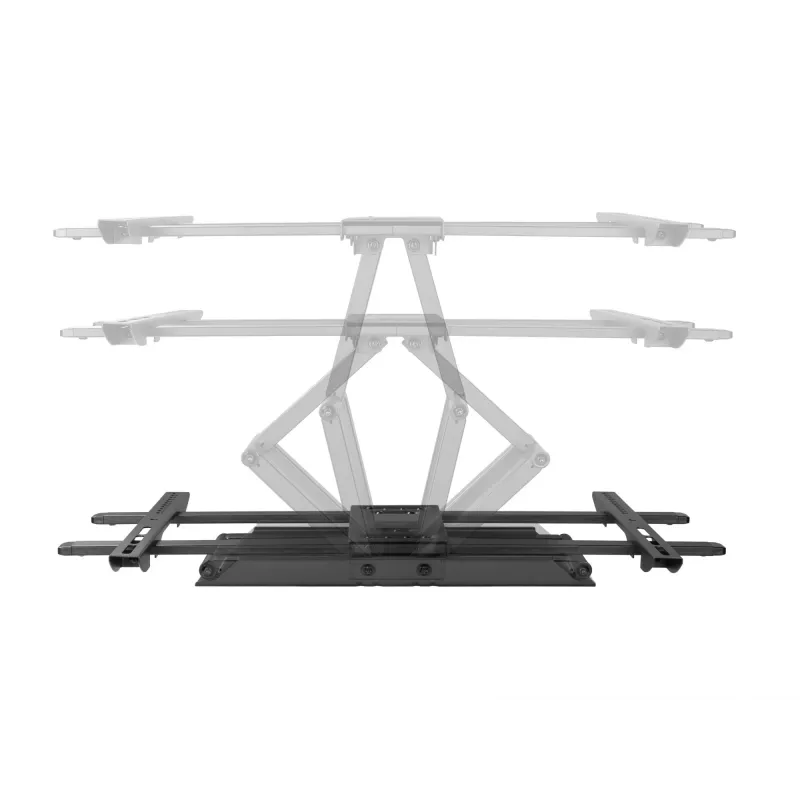

• Distance from wall (adjustable): 5.8 cm–40.2 cm
• Colour: Black

How to use

Consult the included graphic guide before beginning installation. Mark and drill holes into a suitable wall (brick, concrete or wood) following the VESA and mounting template. Fix the wall plate securely with appropriate anchors and attach the TV mounting arms to the TV using screws that match the TV's VESA pattern. Hang the TV on the wall plate, secure all locking screws, then adjust tilt and extension to the preferred viewing position.

Recommendations

Ensure the wall and mounting hardware can support the TV weight (up to 60 kg). Use appropriate anchors for the wall material and verify VESA compatibility before installation. If unsure, seek professional assistance.
