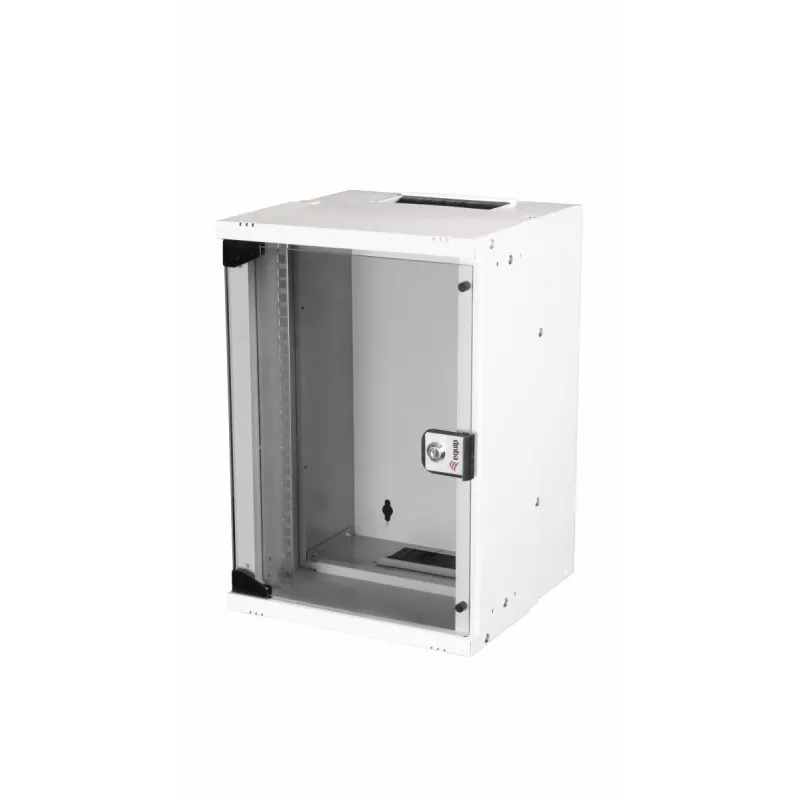

Equip Eco Mount 10'' kaappi, 09U, 300X300MM, RAL7035 harmaa

The Equip Eco Mount Wall mounted rack EWM-09-3030-G is a 10" (9U) wall cabinet designed for compact and secure installation of network equipment. Constructed from 1.5 mm steel, the cabinet is lightweight (5.93 kg) yet sturdy, with a key lock for physical protection and integrated top ventilation slots. The cabinet is finished in light grey (RAL 7035) and provides removable plastic covers for cable entry both at the top and bottom. The door can be reoriented from right to left to suit installation requirements. Note: the cabinet is shipped unassembled; an instructional video is provided for straightforward assembly.

Advantages

The EWM-09-3030-G combines a compact 9U capacity with durable 1.5 mm steel construction to offer a reliable wall-mounted solution for small installations. Its removable cable entry covers and built-in ventilation slots support orderly cable routing and basic airflow management. A right/left reversible door and a keyed lock increase installation flexibility and equipment security while the light weight simplifies mounting.

Suitable for

• Small network closets and telecommunications points
• Office wall-mounted switches, patch panels and small servers
• Home lab or SOHO network installations
• Environments requiring a locked, compact 9U wall cabinet

Key specifications

• Rack capacity: 9U (10" format)
• Dimensions (H×W×D): 463 × 153 × 300 mm
• Maximum mounting depth: 270 mm
• Material thickness: 1.5 mm steel
• Weight: 5.93 kg
• Colour: Light grey (RAL 7035)

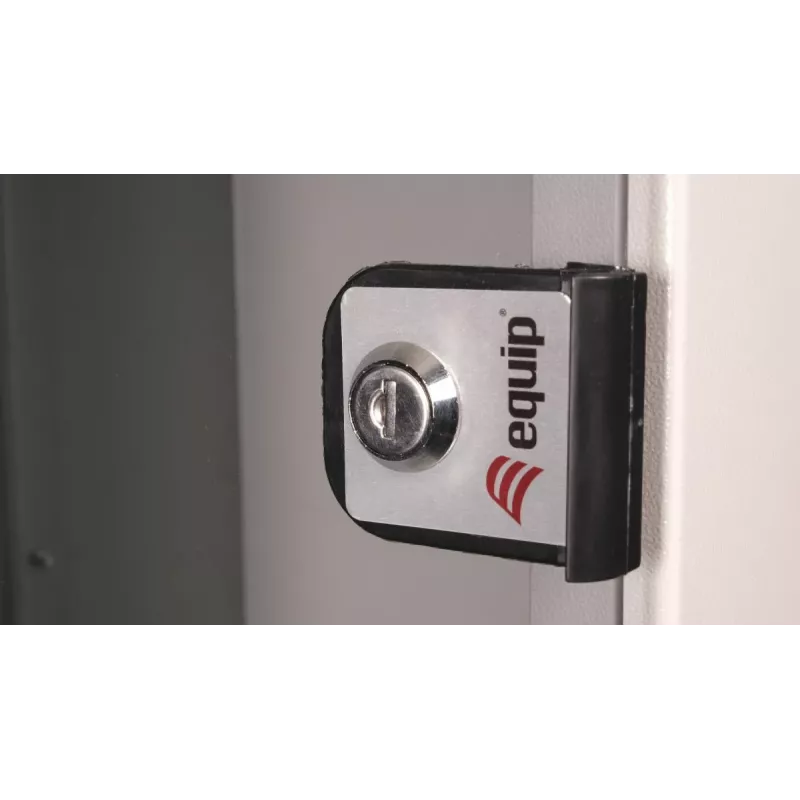

• Lock: Keyed door lock
• Cable entry: Top and bottom with removable plastic covers

How to use

Mount the cabinet securely to a suitable wall surface using appropriate fixings for the wall type and the cabinet weight. Configure the door orientation (right or left) before final mounting if required. Route cables through the removable top or bottom covers and secure them using available cable management accessories. Install 10" network equipment up to the specified mounting depth and fasten to the internal mounting rails. Follow the supplied assembly instructions and video for step-by-step guidance.

Recommendations

For optimal performance, ensure the cabinet is mounted on a load-bearing wall, maintain clearances for ventilation, and use compatible 10" accessories such as patch panels and cable organizers. Verify that installed devices do not exceed the 270 mm maximum mounting depth.
