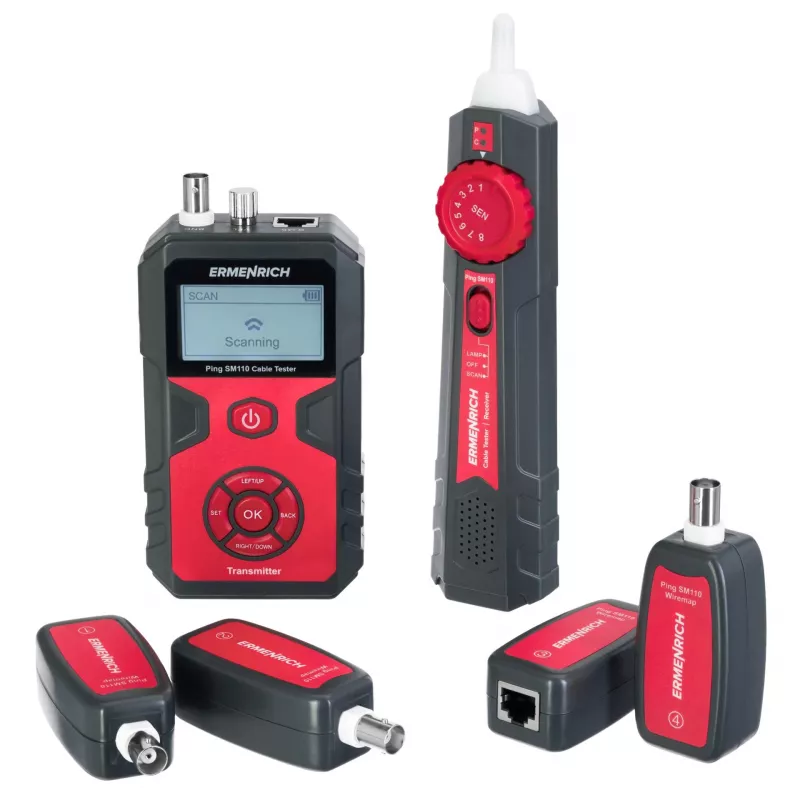

Ermenrich Ping SM110 kaapelitesteri

The Ermenrich Ping SM110 Cable Tester is a professional-grade network testing tool designed for technicians and IT professionals. It supports multiple cable types including RJ45, RJ11, BNC, and USB (Type A to Type B), making it versatile for various networking environments. With both auto-scan and manual scan modes, it efficiently detects opens, shorts, cross connections, split pairs, reverse connections, and continuity issues up to 300 meters (1000 feet). The tester features clear LED indicators and a low battery indicator for reliable operation.

Advantages

Comprehensive testing capabilities for multiple cable types, long test length, and easy-to-read LED display. The included remote unit and adapters enhance functionality, while the storage case keeps everything organized.

Suitable for

• Network technicians and installers
• IT professionals troubleshooting cabling
• Data center maintenance
• Home network setup and repair

Key specifications

• Supported Cable Types: RJ45, RJ11, BNC, USB (Type A to Type B)
• Testing Functions: Open, Short, Cross, Split Pair, Reverse Connection, Continuity
• Maximum Test Length: 300 m (1000 ft)
• Display Type: LED indicators
• Power Source: 1x 9V battery (not included)
• Low Battery Indicator: Yes
• Scan Modes: Auto-scan, Manual scan
• Main Unit Ports: RJ45, RJ11, BNC, USB Type A, USB Type B
• Remote Unit Ports: RJ45, RJ11, BNC, USB Type A, USB Type B
• Included Accessories: Remote unit, BNC-RJ45 adapter, RJ11-RJ45 adapter, Storage case
• Housing Material: ABS plastic
• Operating Temperature Range: 0°C to +40°C (32°F to 104°F)
• Storage Temperature Range: -10°C to +50°C (14°F to 122°F)
• Main Unit Dimensions (L x W x H): 105 x 67 x 28 mm
• Remote Unit Dimensions (L x W x H): 105 x 38 x 28 mm
• Weight (Main Unit): 120 g
• Weight (Remote Unit): 40 g

Recommendations

For best results, use a fresh 9V battery. The tester is ideal for both field and lab use. Always store in the provided case when not in use.
