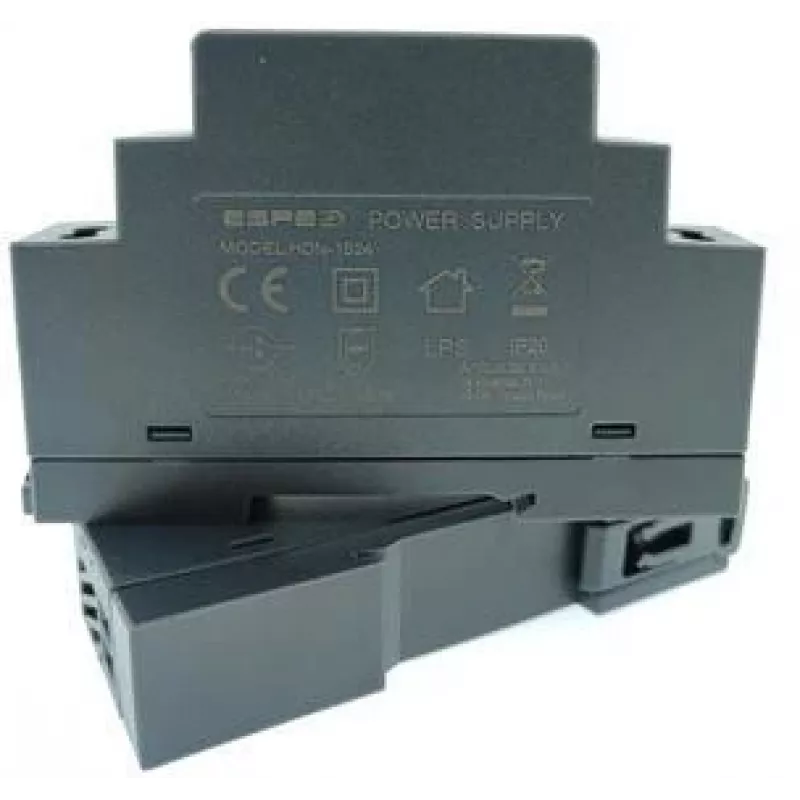

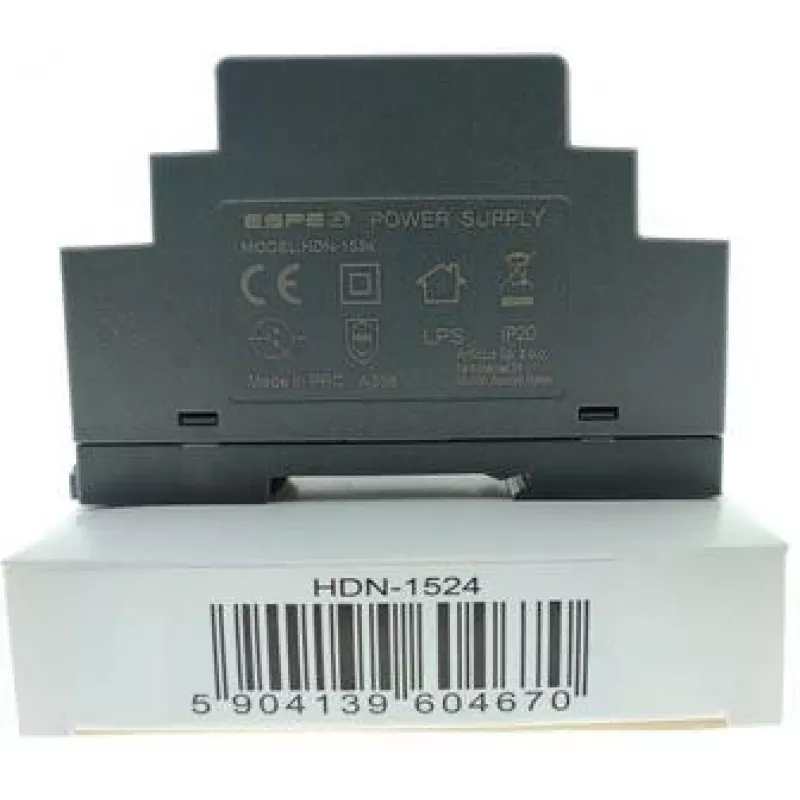

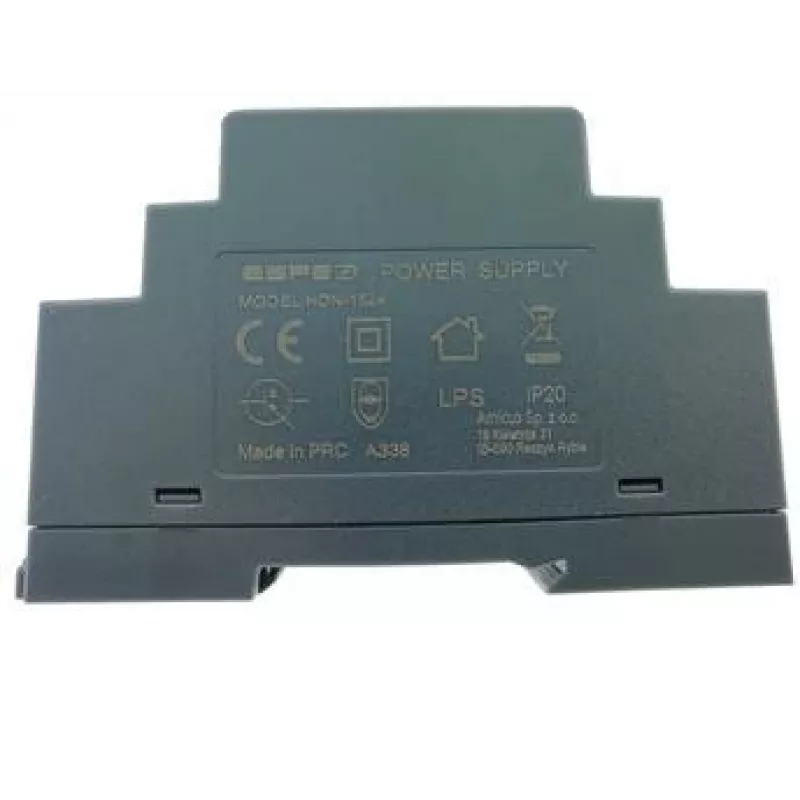

ESPE HDN-1524 DIN-kiskovirtalähde 24V/15W/0,63A

The ESPE HDN-1524 is a high-efficiency DIN rail power supply delivering a stable 24V DC output with 15W power and 0.63A current. Designed for industrial automation, control cabinets, and building management systems, this compact 1-module unit offers reliable performance in a space-saving plastic housing.

Advantages

Wide input voltage range (85-264 VAC / 120-370 VDC) ensures global compatibility. High efficiency (>83%) reduces energy loss and heat generation. Comprehensive protections (short circuit, overload, over voltage) safeguard connected equipment. Green LED indicator for power status. Free air convection cooling enables silent operation without fans.

Suitable for

• Industrial control panels
• Building automation systems
• PLC and sensor power supply
• Security and access control systems
• Telecommunication equipment

Key specifications

• Input: 85-264 VAC / 120-370 VDC, 47-63 Hz
• Output: 24 VDC, 0.63 A, 15 W
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Efficiency: >83%
• Protections: SCP, OLP, OVP
• Ripple & Noise: <120 mVp-p
• Isolation: 3 kVAC input-output
• Operating Temperature: -20°C to +50°C
• Housing: Plastic, 1 module (17.5 mm width)
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation and do not exceed rated output. Suitable for use in dry, indoor environments. Pair with ESPE DIN rail accessories for secure mounting.
