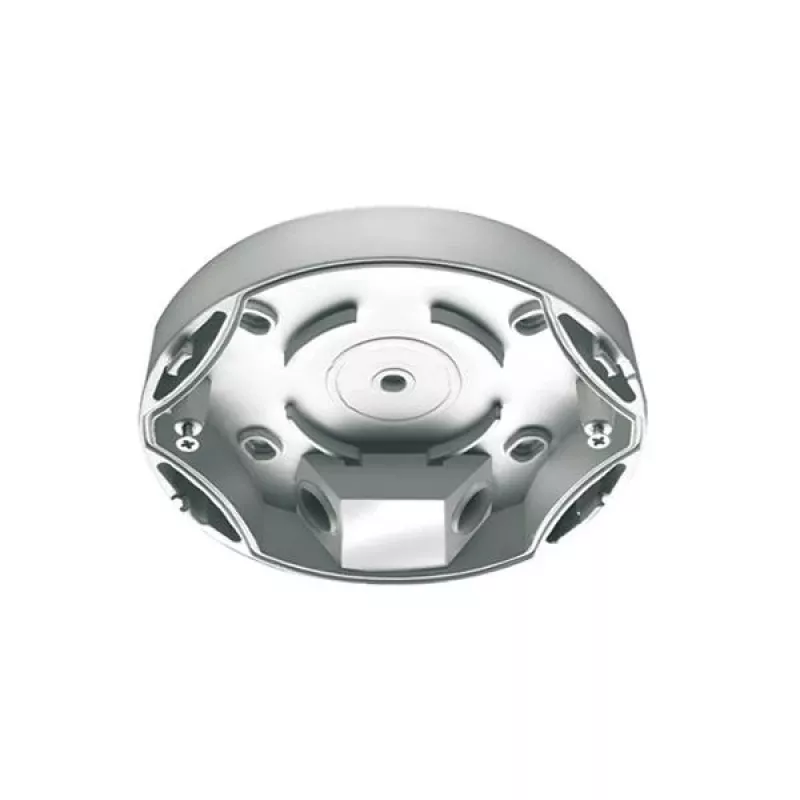

ESYLUX EM10425400 pinta-asennettava jakorasia IP54 valkoinen 400V 24A

The ESYLUX EM10425400 is a high-quality surface-mounted junction box designed for reliable electrical installations. With an IP54 rating, it offers protection against dust and water splashes, making it suitable for indoor and outdoor use. The box is made from durable thermoplastic and features a white finish, blending seamlessly with various environments.

Advantages

This junction box provides easy installation with its screw-fastened lid and knock-out cable entries. It is halogen-free, ensuring safety in case of fire, and has an impact resistance of IK07 for added durability. The box is sealable, allowing for secure connections.

Suitable for

• Electrical installations in residential and commercial buildings
• Surface-mounted wiring systems
• Applications requiring IP54 protection

Key specifications

• Product Type: Surface-mounted Junction Box
• Ingress Protection: IP54
• Material: Thermoplastic
• Colour: White
• Rated Insulation Voltage: 400 V
• Rated Current: 24 A
• Number of Cable Entries: 8
• Mounting Type: Surface-mounted
• Lid Fastening: Screwed
• Halogen-free: Yes
• Operating Temperature Range: -25 to +40 °C
• Max. Conductor Cross-section: 2.5 mm²
• Impact Resistance: IK07
• Glow-wire Test Temperature: 750 °C
• Sealable: Yes
• Cable Entry Design: Knock-out entries

Recommendations

For optimal performance, ensure proper sealing of unused cable entries. This product is ideal for use with ESYLUX accessories and compatible wiring systems.
