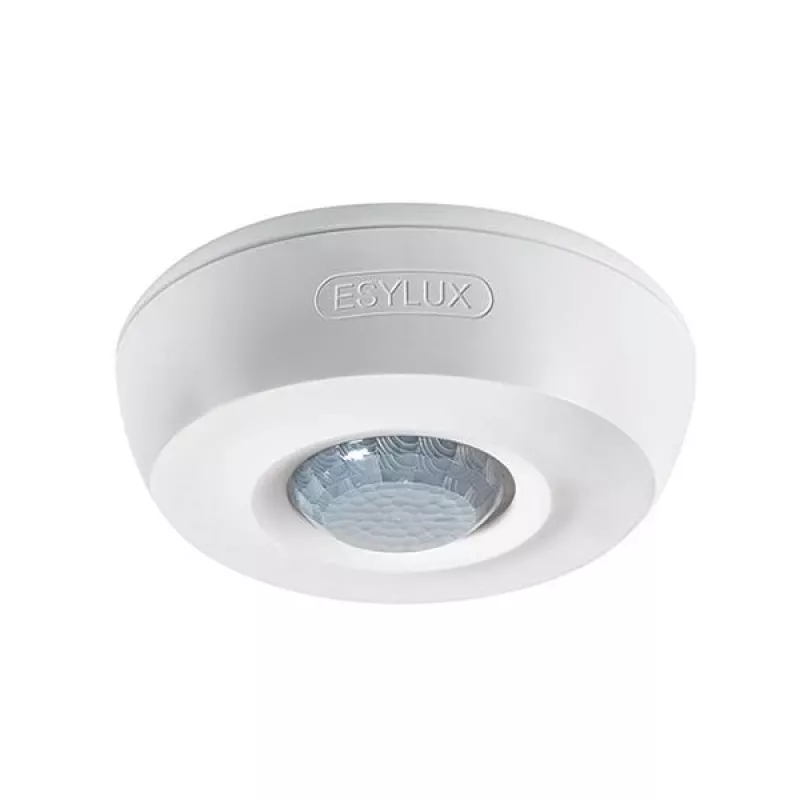

Esylux MD 360/8 Basic kattoliiketunnistin pinta-asennus 360° valkoinen 8 m kantama

The Esylux MD 360/8 Basic is a passive infrared (PIR) ceiling motion detector designed for surface mounting. It provides a 360° detection angle with an 8-meter diameter range at 2.5 m mounting height, making it ideal for indoor lighting control in residential and commercial spaces.

Advantages

Energy-efficient automatic lighting control with adjustable time delay (10 s to 30 min) and brightness threshold (5-2000 lux). Standby power consumption less than 0.5 W. Manual override and test mode for easy commissioning.

Suitable for

• Indoor ceiling mounting in corridors, stairwells, offices, and storage rooms
• Automatic lighting control in areas with moderate foot traffic
• Replacing conventional light switches for energy savings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m (at 2.5 m mounting height)
• Mounting type: Ceiling, surface-mounted
• Recommended mounting height: 2.0 - 4.0 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 600 W (600 VA)
• Max. switching capacity (fluorescent): 1150 VA (parallel compensated)
• Standby power: < 0.5 W
• Time setting range: 10 s - 30 min
• Brightness threshold range: 5 - 2000 Lux
• Protection class: II
• IP rating: IP40
• Ambient temperature: -25 °C to +50 °C
• Colour: White
• Material: UV-stabilised polycarbonate
• Output: 1x Light (Relay)
• Functions: Manual override, test mode

Recommendations

For optimal performance, mount at the recommended height and avoid obstructions. Suitable for indoor use only. Ensure proper wiring by a qualified electrician.
