ESYLUX MD-C360i/24 kattoläsnäolotunnistin, 360°, 24 m kantama, valkoinen

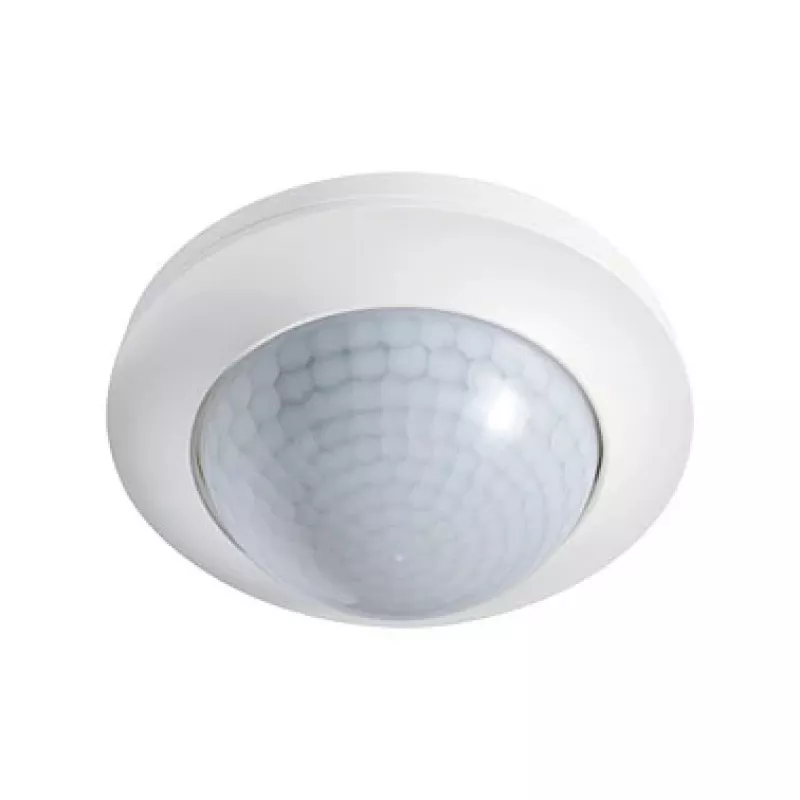

The ESYLUX MD-C360i/24 is a high-performance ceiling-mount presence detector designed for professional lighting control in commercial and industrial environments. With a 360° detection angle and a maximum range of 24 meters (at 3 m mounting height), it provides reliable presence detection for large areas. The integrated light sensor measures ambient brightness from 5 to 2000 lux, enabling automatic daylight-dependent control. Adjustable time delay (60 sec to 30 min) and switching capacity up to 2300 W (incandescent) make it versatile for various lighting loads.

Advantages

Energy-efficient presence detection with standby power < 0.5 W. Easy flush-mount installation (68 mm cut-out). UV-stabilised polycarbonate housing ensures long-lasting durability. Suitable for open-plan offices, classrooms, warehouses, and corridors.

Suitable for

• Ceiling-mount presence detection in rooms up to 24 m diameter
• Automatic lighting control based on occupancy and daylight
• Energy-saving applications in commercial buildings

Key specifications

• Detection angle: 360°
• Detection range: 24 m (diameter at 3 m height)
• Recommended mounting height: 2.5 - 3.5 m
• Light sensor range: 5 - 2000 lux
• Time delay: 60 sec - 30 min
• Switching capacity: 2300 W (incandescent), 1150 VA (fluorescent uncompensated)
• Operating voltage: 230 V AC, 50 Hz
• IP rating: IP20
• Colour: White
• Material: UV-stabilised polycarbonate
• Standby power: < 0.5 W
• Temperature range: 0°C to +50°C
• Installation diameter: 68 mm
• Control output: 1x Light (Relay)

Recommendations

For optimal performance, mount at 3 m height. Ensure unobstructed detection area. Pair with ESYLUX lighting controls for advanced automation.
