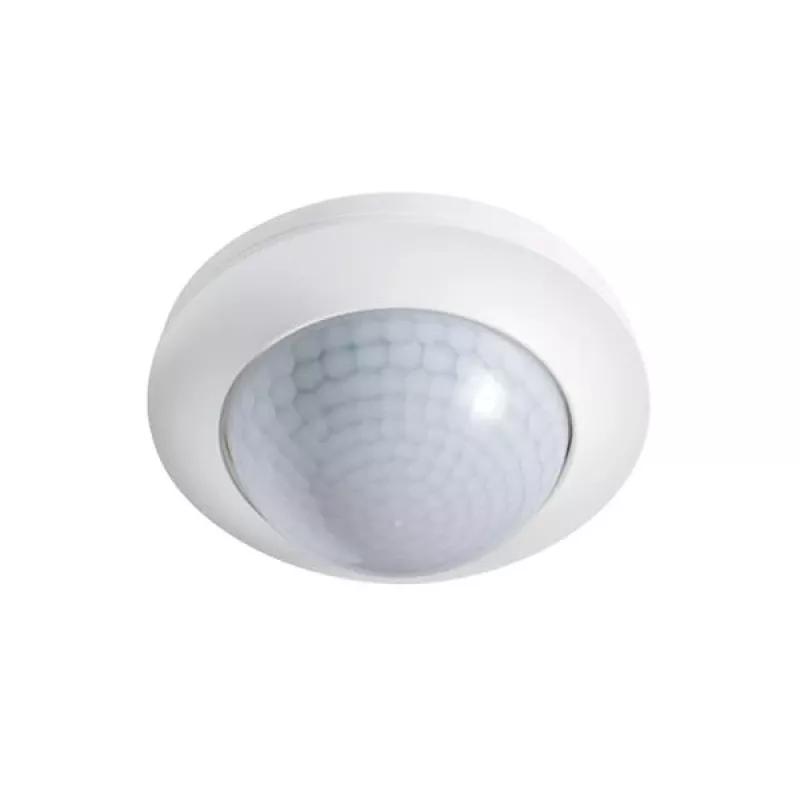

ESYLUX PD-C 360i/24 kattoläsnäolotunnistin uppoasennus 360°

The ESYLUX PD-C 360i/24 is a high-quality ceiling-mounted presence detector designed for flush-mounted installation. Featuring passive infrared (PIR) technology with a 360° detection angle and a range of up to 24 meters, it is ideal for automatic lighting control in offices, meeting rooms, and commercial spaces. The detector combines presence detection with brightness measurement, ensuring energy-efficient operation.

Advantages

Energy savings through demand-based lighting control; simple flush-mounted installation; adjustable time delay and light threshold; reliable detection even in large rooms.

Suitable for

• Office buildings
• Meeting and conference rooms
• Classrooms
• Open-plan areas
• Corridors and stairwells

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: up to 24 m diameter (at 3 m mounting height)
• Mounting type: Ceiling flush-mounted
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W (resistive), 1150 VA (fluorescent/LED)
• Light sensor range: 5 - 2000 Lux
• Time delay: 60 sec - 30 min adjustable
• Protection class: IP20
• Colour: Traffic white (RAL 9010)
• Material: UV-stabilised polycarbonate
• Operating temperature: -25 °C to +50 °C
• Power consumption: < 0.5 W
• Installation cut-out: Ø 68 mm
• Visible diameter: Ø 82 mm
• Visible height: 28 mm
• Installation depth: 65 mm

Recommendations

For optimal performance, mount at a height of 2.5 - 3.5 m. Ensure the sensor has a clear view of the area to be monitored. Suitable for use with ESYLUX control units and compatible lighting systems.
