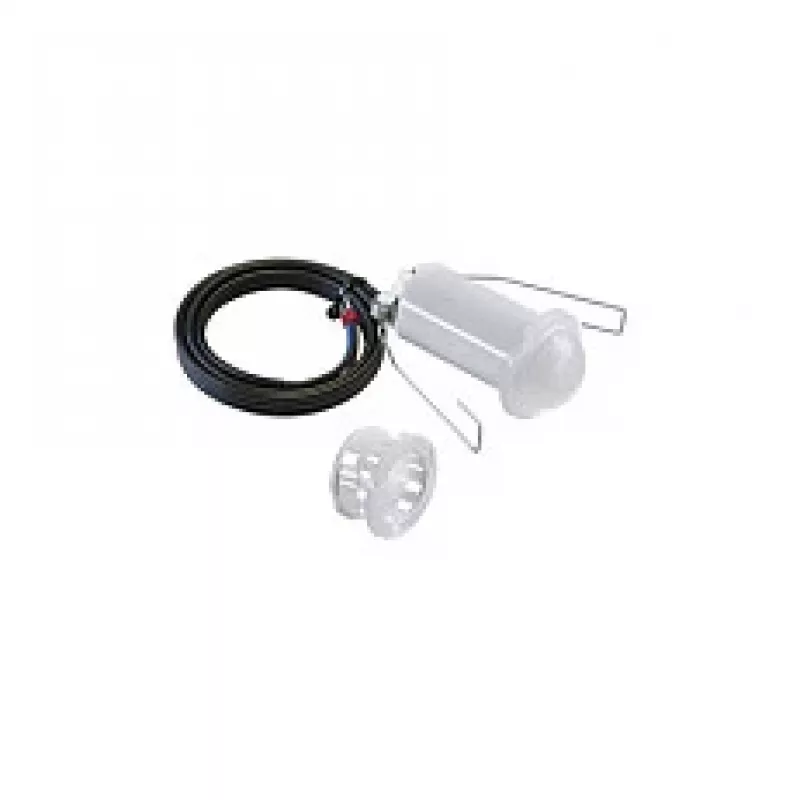

ESYLUX PD-C 360i/8 mini mikroaaltokattoanturi, 8 m, valkoinen

The ESYLUX PD-C 360i/8 mini is a compact microwave (HF) ceiling sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and a range of up to 8 meters, it reliably detects movement and switches lighting on and off, contributing to energy efficiency and convenience.

Advantages

Energy-saving automatic lighting control; compact, discreet design for flush ceiling mounting; easy installation with low installation depth; adjustable time and light value settings for customized operation.

Suitable for

• Corridors and hallways
• Stairwells
• Bathrooms and toilets
• Storage rooms and cellars
• Small offices and meeting rooms

Key specifications

• Sensor technology: Microwave (HF)
• Detection angle: 360°
• Detection range (diameter): up to 8 m (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Recommended mounting height: 2.5 - 3 m
• Control output: Switching (relay)
• Max. switching power (resistive): 2300 W
• Time setting: 30 sec - 30 min
• Light value setting: 5 - 2000 lux
• Protection class: IP20
• Operating voltage: 230 V AC, 50 Hz
• Standby power consumption: < 0.5 W
• Colour: White
• Material: UV-stabilised polycarbonate
• Operating temperature: -25 °C to +50 °C
• Installation depth: 24 mm
• Visible diameter: 33 mm
• Visible height: 12 mm
• Number of channels: 1 (Light)

Recommendations

For optimal performance, mount the sensor at the recommended height of 2.5 to 3 meters. Ensure the detection area is free from obstructions. This sensor is ideal for replacing traditional light switches in areas where automatic control is desired.
