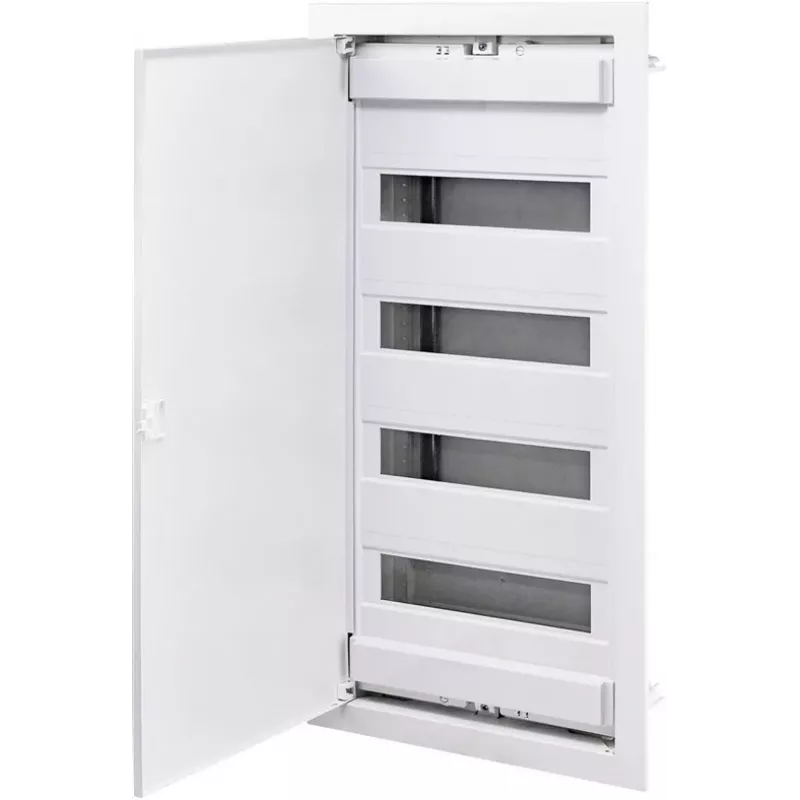

ETI BOARD DISTRIB FLUSH IECG56 P40 48+8 MOD

The ETI BOARD DISTRIB FLUSH IECG56 P40 48+8 MOD is a high-quality flush-mounted distribution board designed for efficient and safe electrical distribution in residential and commercial installations. With a capacity of 48 modules plus 8 auxiliary module spaces, this board offers ample room for circuit breakers, RCDs, and other DIN rail components. Its IP40 and IK07 ratings ensure protection against dust and mechanical impacts, while the transparent hinged door allows easy monitoring.

Advantages

This distribution board provides a robust and reliable solution for electrical distribution. The flush-mount design integrates seamlessly into walls, saving space and providing a clean finish. The included N and PE terminal blocks simplify wiring, and the pre-punched knockouts allow flexible cable entry. The ABS plastic enclosure and polycarbonate door offer durability and long service life.

Suitable for

• Residential electrical distribution systems
• Commercial building installations
• Industrial control panels requiring modular DIN rail components

Key specifications

• Mounting Type: Flush-mounted (Under Plaster)
• Number of Modules: 48 (4x12) + 8 auxiliary module spaces
• Number of Rows: 4
• Ingress Protection: IP40
• Impact Protection: IK07
• Enclosure Material: ABS Plastic
• Door Material: Polycarbonate (PC), Transparent, Hinged
• Terminal Blocks: N and PE included
• Rated Insulation Voltage: 500 V AC
• Rated Operational Voltage: 230/400 V AC
• Glow Wire Test Temperature: 650 °C
• Standards: EN 60670-1, EN 60670-24, EN 62208
• Color: White (RAL 9010)
• Operating Temperature: -25 to +60 °C
• DIN Rail: 35mm Standard
• Cable Entry: Pre-punched knockouts
• Max. Terminal Capacity (N/PE): 25 mm²

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections are tightened to the manufacturer's specifications. Use appropriate cable glands for cable entry to maintain IP rating.
