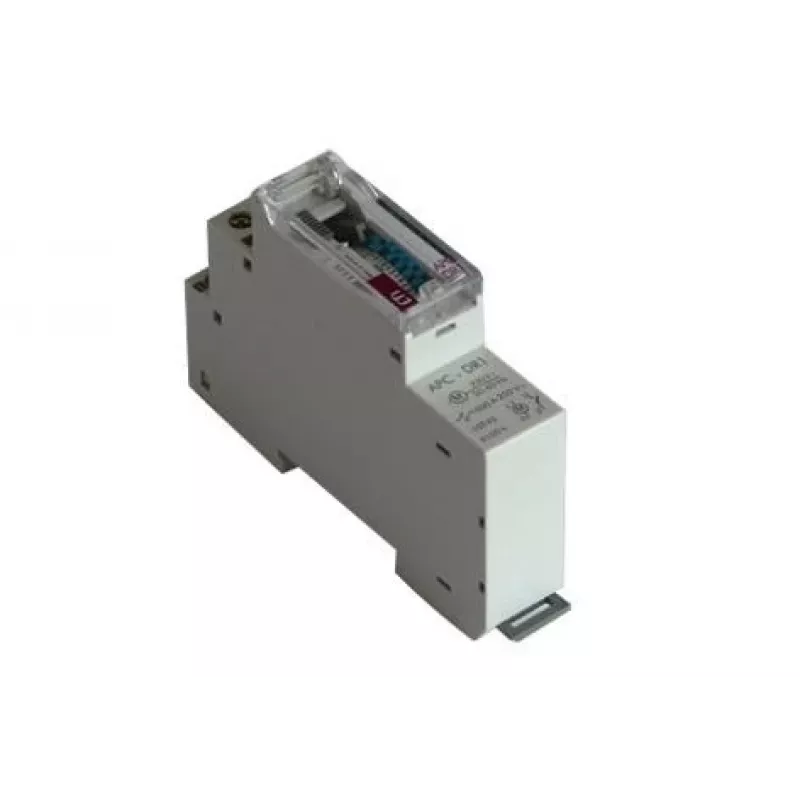

ETI TIME SWITCH MODULAR MECHAN APC-D1 1P 16A

The ETI TIME SWITCH MODULAR MECHAN APC-D1 1P 16A is a reliable mechanical time switch designed for DIN rail mounting. It offers precise daily scheduling for lighting, heating, and other electrical loads in commercial and industrial applications.

Advantages

This time switch features a robust mechanical design with a 24-hour operating cycle, allowing up to 96 ON/OFF operations per day with a minimum switching interval of 15 minutes. The manual override function (ON/AUTO/OFF) provides flexibility for temporary adjustments. Its compact 1 DIN module size saves space in distribution boards.

Suitable for

• Automatic control of lighting in offices, schools, and public buildings
• Time-based control of heating, ventilation, and air conditioning systems
• Industrial automation for periodic processes
• Energy-saving applications by scheduling loads during off-peak hours

Key specifications

• Switch Type: Mechanical Time Switch
• Operating Cycle: Daily (24h)
• Mounting Type: DIN Rail (Modular)
• Number of Poles: 1-Pole (1P)
• Rated Current: 16 A
• Rated Voltage: 230V AC
• Frequency: 50/60 Hz
• Minimum Switching Interval: 15 minutes
• Number of Switching Segments: 96
• Max. ON/OFF Operations per Day: 96
• Manual Override: Yes (ON/AUTO/OFF)
• Power Consumption: < 0.5 W
• Degree of Protection (Front): IP40
• Degree of Protection (Terminals): IP20
• Operating Temperature: -10°C to +50°C
• Number of Modules: 1 DIN Module
• Terminal Type: Screw Terminals
• Housing Material: Self-extinguishing thermoplastic

Recommendations

For optimal performance, ensure the time switch is installed in a clean, dry environment within the specified temperature range. Use appropriate circuit protection and follow local electrical codes. The manual override allows temporary changes without reprogramming.
