EUROLITE LED PR-100/32 Pixel DMX Rail 32x SMD 5050 RGB LED -pikselipalkki 51928609

32 individually controllable RGB pixels on a single rail, each powered by a 0.5W SMD 5050 LED, deliver precise pixel-mapped effects for stage, club, and architectural lighting. With a 120° beam angle and convection cooling, this EUROLITE Pixel Rail runs silently and blends seamlessly into any rig.

Overview

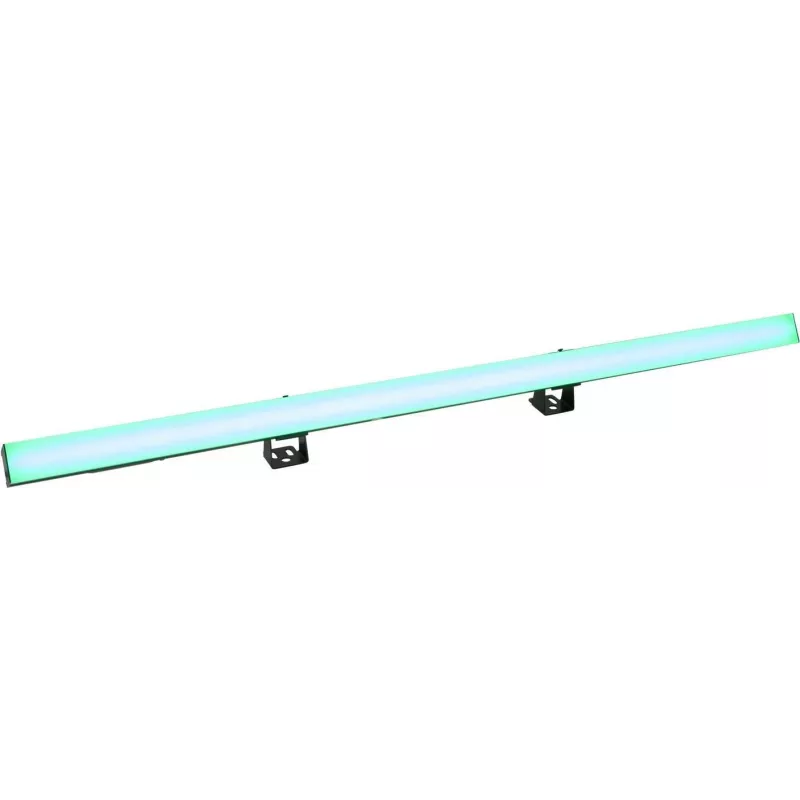

The EUROLITE LED PR-100/32 Pixel DMX Rail is a professional pixel-mapping LED bar featuring 32 RGB LEDs arranged in a linear format. Each LED can be controlled independently, enabling dynamic chases, gradients, and video-like effects. The rail is housed in a robust aluminum profile and includes mounting brackets for easy installation. A 4-digit LED display and control buttons allow quick configuration of DMX addressing and operating modes.

What stands out

• 32 individually addressable RGB pixels for creative pixel-mapping effects
• Selectable DMX channel modes: 3, 5, 8, 96, or 99 channels for flexible control
• Multiple operating modes: DMX, stand-alone, master/slave, and sound-activated
• Fanless convection cooling for silent operation, ideal for noise-sensitive environments
• Wide 120° beam angle for even illumination across surfaces
• Power and DMX loop-through via IEC and 3-pin XLR connectors for easy daisy-chaining

Technical details

• Light source: 32x SMD 5050 RGB LEDs, 0.5W each
• Pixel configuration: 32 individually controllable pixels
• Colour mixing: RGB
• Control protocol: DMX512
• DMX channels: 3, 5, 8, 96, 99 selectable
• Operating modes: DMX, stand-alone, master/slave, sound-controlled
• Power input: 100-240 V AC, 50/60 Hz
• Power consumption: 20 W
• Power connection: IEC input/output
• DMX connection: 3-pin XLR input/output
• Housing material: aluminum
• Display: 4-digit LED display
• Mounting: mounting brackets included
• Protection rating: IP20 (indoor use)
• Cooling: convection (fanless)
• Beam angle: approx. 120°

Our verdict

For lighting designers who need precise pixel control in a compact, durable rail, the EUROLITE LED PR-100/32 delivers exceptional flexibility and silent performance. Its multiple DMX modes and sound-active option make it a versatile tool for any production.
