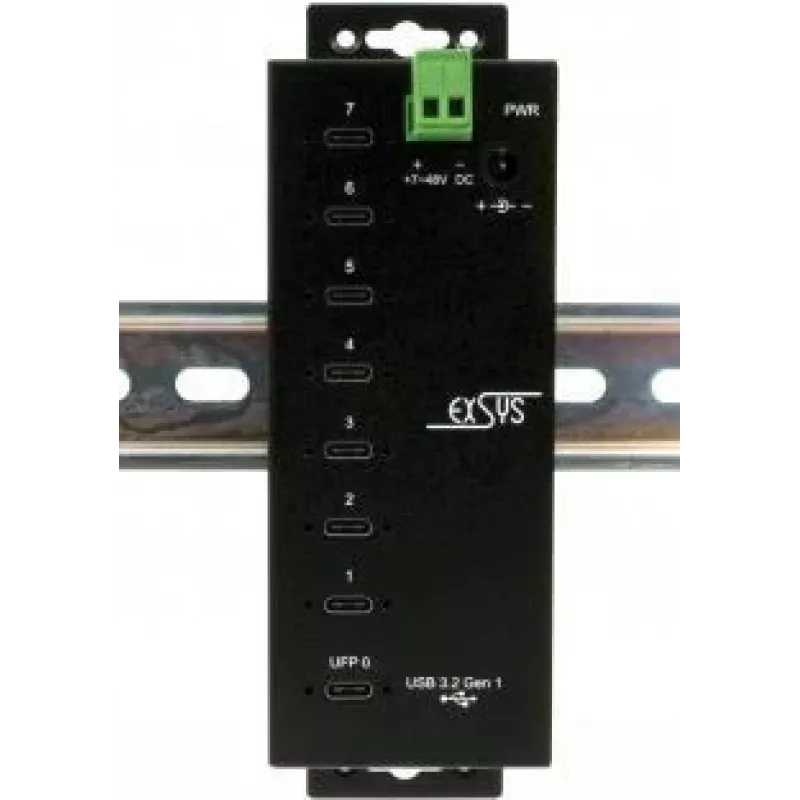

EXSYS EX-1147HMVS USB-C-keskitin, USB 3.2 Gen 1, musta

The EXSYS EX-1147HMVS is a USB 3.2 Gen 1 metal hub with seven C-downstream ports. It features 15KV ESD overvoltage protection for each output and can be powered via terminal block or DC jack from +7V to +48V DC, or alternatively via USB bus power at +5V.

Key features

• USB 3.2 Gen 1 metal hub with seven C-downstream ports
• 15KV ESD overvoltage protection for each output
• Power supply +7V to +48V DC via terminal block or DC jack
• Power supply optionally via USB bus +5V (bus power)
• Simple installation with integrated DIN-rail mounting
• Compact industrial design
• Automatic detection of data transfer rate for connected peripherals
• 900mA power on all 7 ports
• Automatic detection of input polarity on power terminal block
• Supports Multi Transaction Translator (TT) per hub
• Rugged metal housing
• 1 x LED voltage indicator

Specifications

• Brand: Exsys
• MPN: EX-1147HMVS
• Product colour: Black
• USB version: USB 3.2 Gen 1
• Number of downstream ports: 7 (C-downstream)
• ESD protection: 15KV per output
• Power input: +7V to +48V DC via terminal block or DC jack; +5V via USB bus
• Power output: 900mA on all 7 ports
• Mounting: DIN-rail
• Housing material: Metal
• LED indicators: 1 x voltage
• Country of origin: Taiwan
