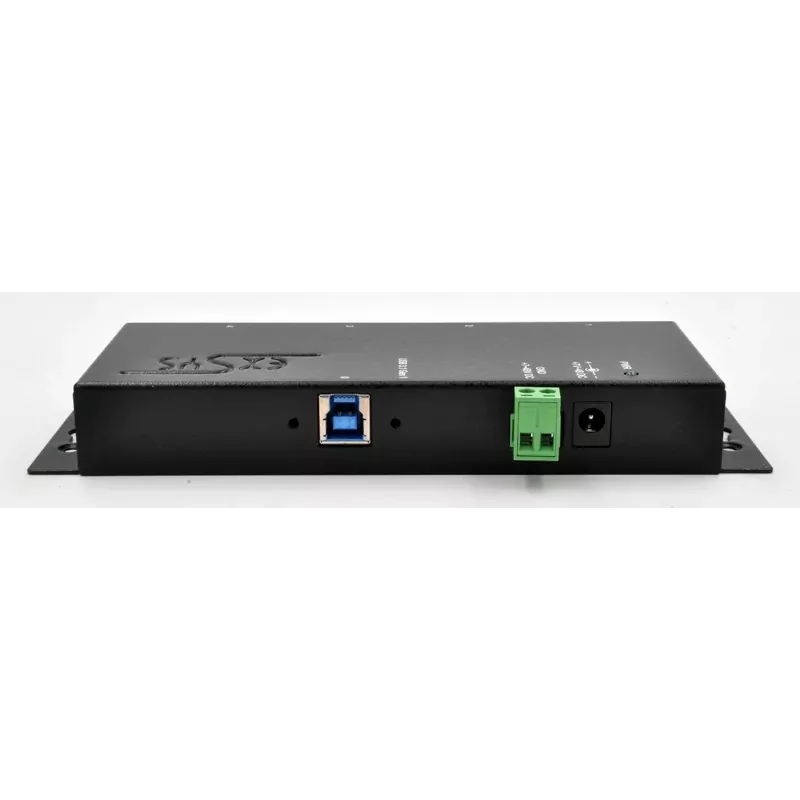

EXSYS EX-1183HMVS-2 USB-keskitin 3.2 Gen 1 Type-B 5000 Mbit/s musta

The EXSYS EX-1183HMVS-2 is a compact USB 3.2 Gen 1 hub with a Type-B host interface and four screw-able Type-A downstream ports. It supports data transfer rates up to 5000 Mbit/s, offers 15 kV ESD surge protection on each output and supplies up to 1.5 A per port for charging mobile devices. Housed in a durable metal enclosure and powered by a wide-range DC input (7–48 V), the hub is suitable for desktop, notebook, server and rack-mounted installations where reliable USB connectivity is required.

Advantages

The hub provides four screw-secured USB 3.2 Gen 1 Type-A ports that maintain stable connections in industrial and mobile environments. Each port includes 15 kV ESD protection to reduce risk from electrostatic discharge. The device can deliver up to 1.5 A per port for charging smartphones and tablets while still supporting full 5 Gbit/s data transfer. The supplied 1.5 m Type-B host cable attaches with finger screws, allowing tool-free installation. The metal housing permits mounting on a wall, under a desk or in a 19-inch cabinet (optionally with EX-6099).

Suitable for

• Connecting up to four USB peripherals to one USB 3.2 Gen 1 Type-B host port
• Charging and syncing smartphones, tablets and other mobile devices (up to 1.5 A per port)
• Industrial automation and factory-floor USB expansion
• Office workstations, servers and 19-inch rack installations

Key specifications

• Ports: 4 screw-able USB Type-A downstream ports
• Host interface: USB 3.2 Gen 1 (3.1/3.0 Gen1) Type-B
• Data rate: up to 5000 Mbit/s (5 Gbit/s)
• ESD protection: 15 kV per output
• Power per port: up to 1.5 A
• Power input: DC 7–48 V
• Housing: metal, black
• Included cable: EX-K1571V Type-B host cable, 1.5 m (finger-screw attachment)

How to use

Attach the supplied EX-K1571V Type-B cable to the hub using the finger screws and connect the other end to a USB 3.2 Gen 1 Type-B host port on a notebook, desktop or server. Connect up to four USB Type-A devices to the downstream ports; tighten the screws on each downstream connector if a secure connection is required. Provide appropriate DC power within the 7–48 V input range before using the hub to enable charging and full data transfer functionality. Mount the hub on a wall, under a desk or in a rack if fixed installation is needed.

Recommendations

For reliable operation keep cable runs short and use shielded USB cables where possible. When mounting in a 19-inch cabinet, use the recommended EX-6099 adapter for secure rack installation. Ensure the DC supply meets the device voltage range and current requirements to support multiple charging ports simultaneously.
