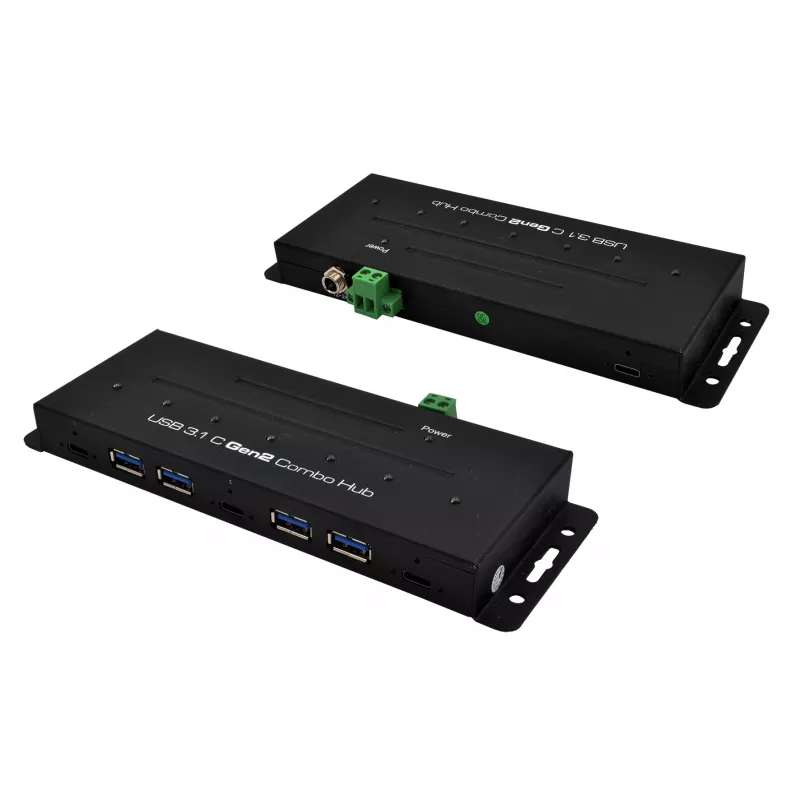

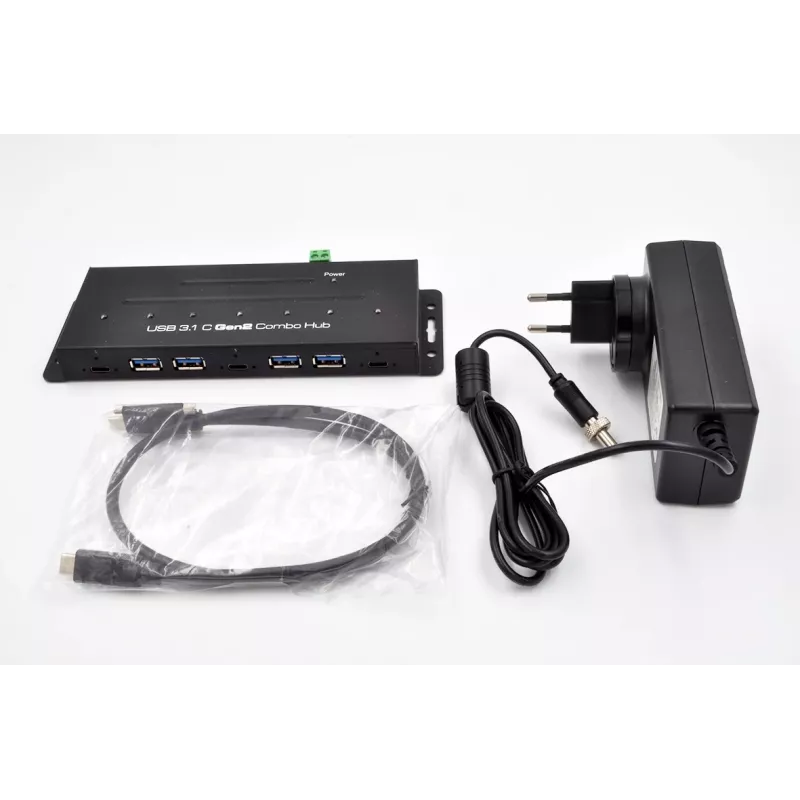

EXSYS EX-1247HMVS 7-porttinen USB 3.2 Gen 2 teollisuuskeskitin DIN-kiskokiinnityksellä

10 Gbps data throughput across seven USB Type-A ports, powered by an external 12V/3A adapter and housed in a rugged metal case. The EXSYS EX-1247HMVS is built for industrial USB expansion, supporting desktop, wall, and DIN-rail mounting.

Overview

The EX-1247HMVS is a self-powered USB 3.2 Gen 2 hub that adds seven downstream USB Type-A ports to a host system via a single USB Type-B upstream connection. It delivers full 10 Gbps SuperSpeed USB data rates, with backward compatibility to USB 3.0, 2.0, and 1.1 devices. The hub uses the GL3590 controller and includes per-port overcurrent protection and ESD protection (15KV air, 8KV contact).

What stands out

• Seven USB 3.2 Gen 2 ports with 10 Gbps total bandwidth
• Metal housing for durability in industrial environments
• Flexible mounting: desktop, wall-mount, or DIN-rail
• Self-powered via included external 12V/3A power adapter
• Plug-and-play with Windows, macOS, and Linux

Technical details

• USB Standard: USB 3.2 Gen 2 (SuperSpeed USB 10Gbps)

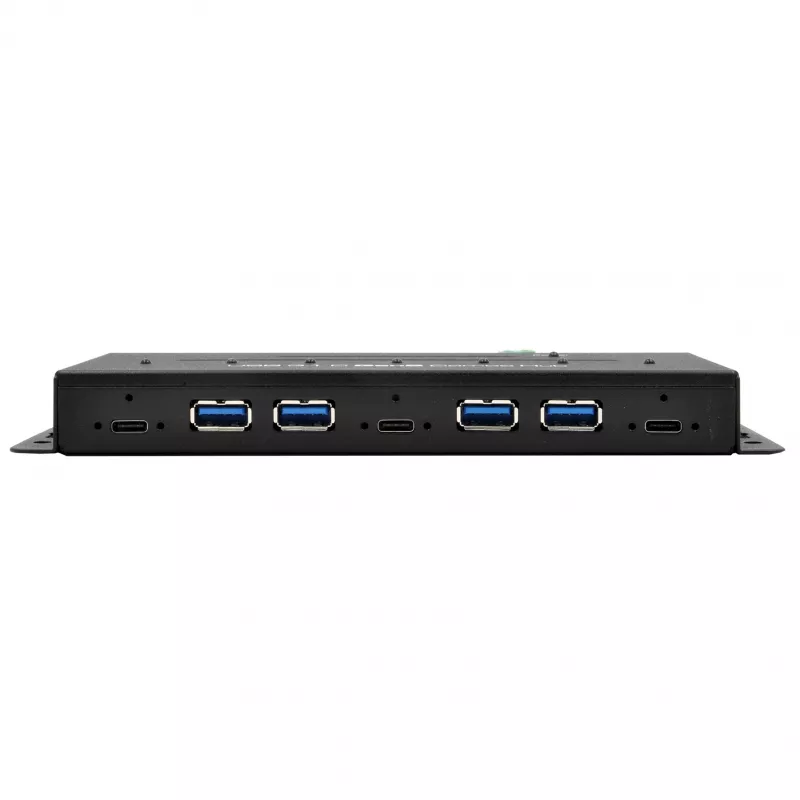

• Downstream Ports: 7 x USB Type-A (Female)

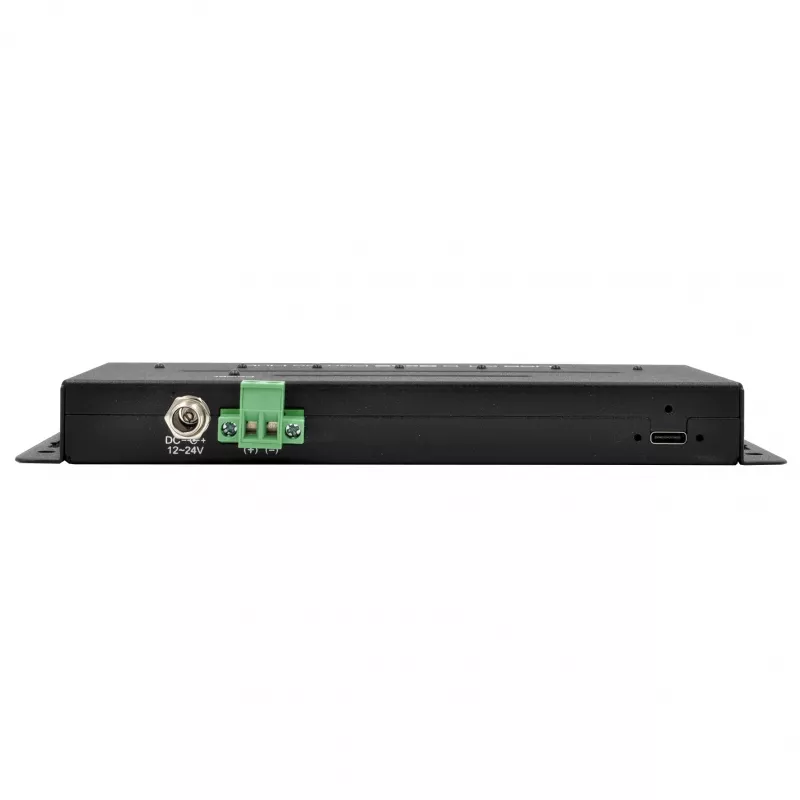

• Upstream Port: 1 x USB Type-B (Female)
• Max Data Transfer Rate: 10 Gbps
• Power Mode: Self-powered (External Power Adapter, DC 12V, 3A)
• Housing Material: Metal
• Chipset: GL3590
• OS Compatibility: Windows 7/8/10/11, macOS, Linux
• Plug & Play: Yes
• Hot-Swap Support: Yes
• Overcurrent Protection: Yes (per port)
• ESD Protection: 15KV Air, 8KV Contact
• Operating Temperature: 0°C to 55°C
• LED Indicators: Power, Port Status

Our verdict

A robust industrial USB hub with high-speed 10 Gbps performance and versatile mounting options, ideal for demanding workstation or factory-floor setups.
