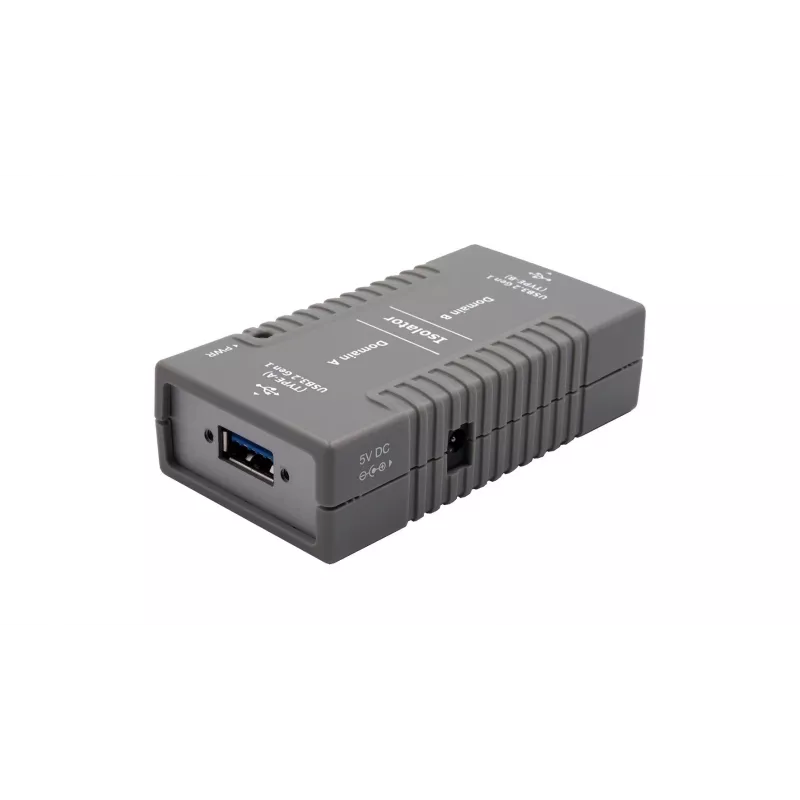

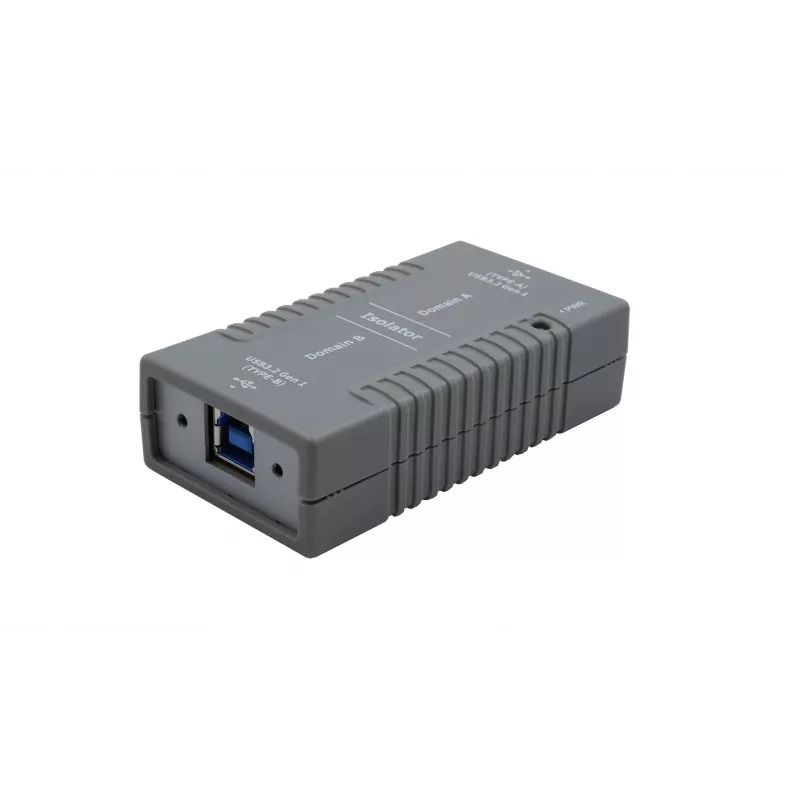

EXSYS EX-1452IS USB 3.2 Gen1 eristysadapteri 3KV optisella eristyksellä

Electrical noise and ground loops can corrupt data or damage equipment when USB devices share a power domain with industrial machinery. The EX-1452IS breaks that galvanic connection with 3000 VDC optical isolation, allowing safe, reliable USB 3.2 Gen 1 communication in harsh electrical environments.

Who is it for

Engineers and technicians integrating USB peripherals into industrial PCs, medical devices, or test systems where ground potential differences or transient voltages are a concern. It is driverless and works with Windows, macOS, and Linux.

Main features

• 3000 VDC optical isolation between USB host and device
• USB 3.2 Gen 1 (SuperSpeed) data rates up to 5 Gbps
• USB Type-B female input, USB Type-A female output
• Bus-powered – no external supply needed
• ESD protection: 15 kV air, 8 kV contact
• Metal housing, wall mountable
• LED indicators for power and link/activity

Specifications

• USB Standard: USB 3.2 Gen 1 (compatible with USB 3.0 / 3.1 Gen 1)
• Isolation Type: Optical (galvanic)
• Isolation Voltage: 3000 VDC
• Input Connector: 1x USB 3.2 Gen 1 Type-B female
• Output Connector: 1x USB 3.2 Gen 1 Type-A female
• Power Source: USB bus-powered
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -20°C to 85°C
• Supported Operating Systems: Windows, macOS, Linux (driverless)
• Housing Material: Metal
• Mounting: Wall mountable

Tips

Place the isolator close to the USB device to minimize the length of unisolated cable. For best performance, use high-quality shielded USB cables on both sides.
