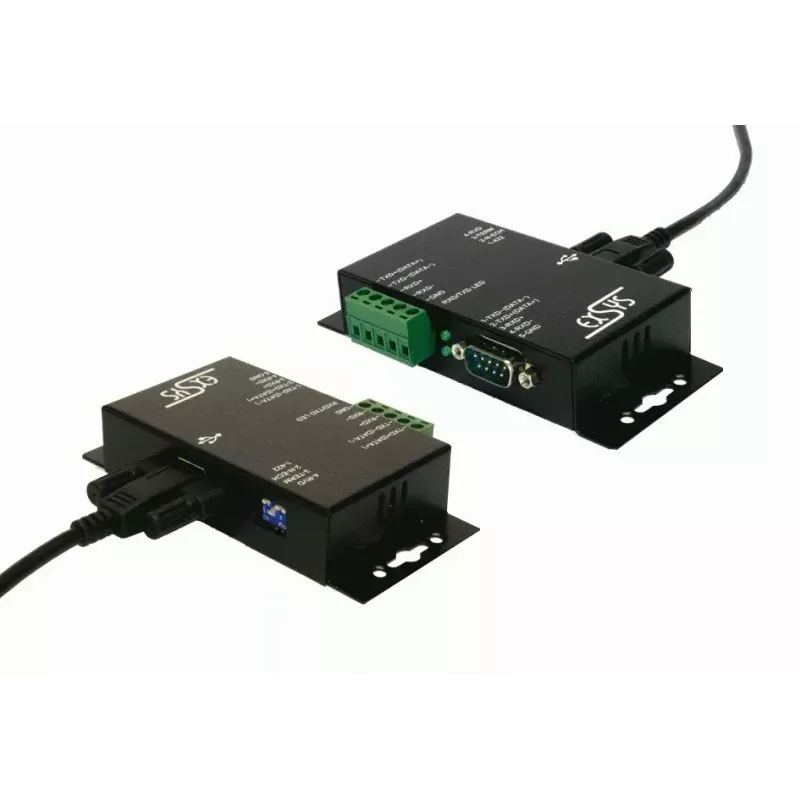

USB 2.0 - 1S sarja RS-422/485 sovitin EXSYS EX-1335HMV

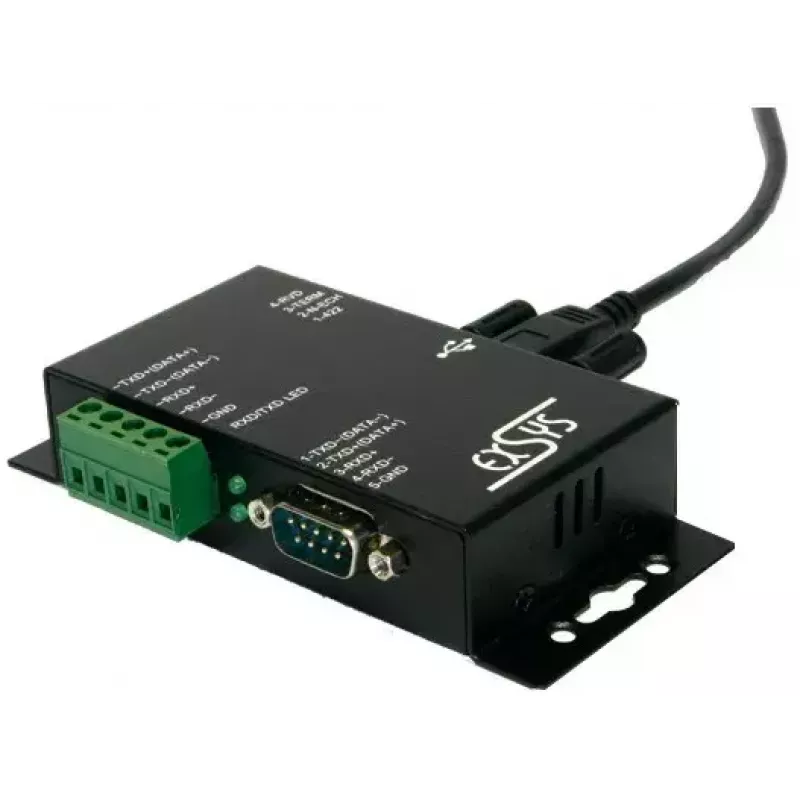

The EXSYS EX-1335HMV USB 2.0 to 1S Serial RS-422/485 adapter provides a single high-performance 16C550-type UART compatible RS-422/485 serial port in a compact metal enclosure. It offers 15 kV surge (ESD) protection and 2.5 kV optical isolation to protect connected equipment, supports USB 1.1 and 2.0 hosts, and includes a USB A‑male to B‑male cable (EX-K1552) that can be secured with screws to prevent accidental disconnection. The adapter is powered by an FTDI chipset and is certified CE, FCC, RoHS and WHQL. Dimensions: 92.8 mm x 40 mm x 23.1 mm.

Advantages

The EX-1335HMV combines industrial-grade protection and a standard UART-compatible interface for reliable serial communication over USB without opening the host PC. It supports easy plug-and-play installation on PCs, thin clients or servers, provides hardware-level surge and optical isolation for safety, and comes with a screw-lockable USB cable for secure connections. Certification (CE/FCC/RoHS/WHQL) and compact metal housing make it suitable for industrial deployments.

Suitable for

• Connecting RS-422 or RS-485 serial devices to PCs, thin clients or servers
• Industrial control and automation equipment integration
• Serial device management, monitoring and data logging
• Environments that require ESD protection and optical isolation

Key specifications

• Interface: 1 × RS-422/485 serial port (9‑pin or terminal block option)
• Protection: 15 kV ESD surge protection; 2.5 kV optical isolation
• UART: 16C550-type with 16‑byte FIFO buffer
• USB: Compatible with USB 1.1 and USB 2.0 hosts; includes EX-K1552 USB A‑male to B‑male cable (2 m) with screw lock
• Chipset: FTDI
• Certifications: CE, FCC, RoHS, WHQL
• Dimensions: 92.8 × 40 × 23.1 mm

How to use

Install the adapter by connecting it to an available USB port on the host using the supplied EX-K1552 cable and secure the B‑connector with its screws. The device is recognized as a COM port by the operating system; I/O addresses and interrupts are managed by the OS and system BIOS (interrupt sharing supported). Attach the RS-422/485 device to the 9‑pin connector or terminal block as required and configure serial parameters (data bits, stop bits, parity) in the host software.

Recommendations

For reliable operation, mount the adapter in a stable location and use shielded cabling where possible. When deploying in racks, use the optional EX-6099 DIN-rail kit or appropriate rack-mount hardware. Configure matching serial parameters (7/8 data bits, 1/1.5/2 stop bits, none/even/odd parity) between the host and connected device before starting communication.
