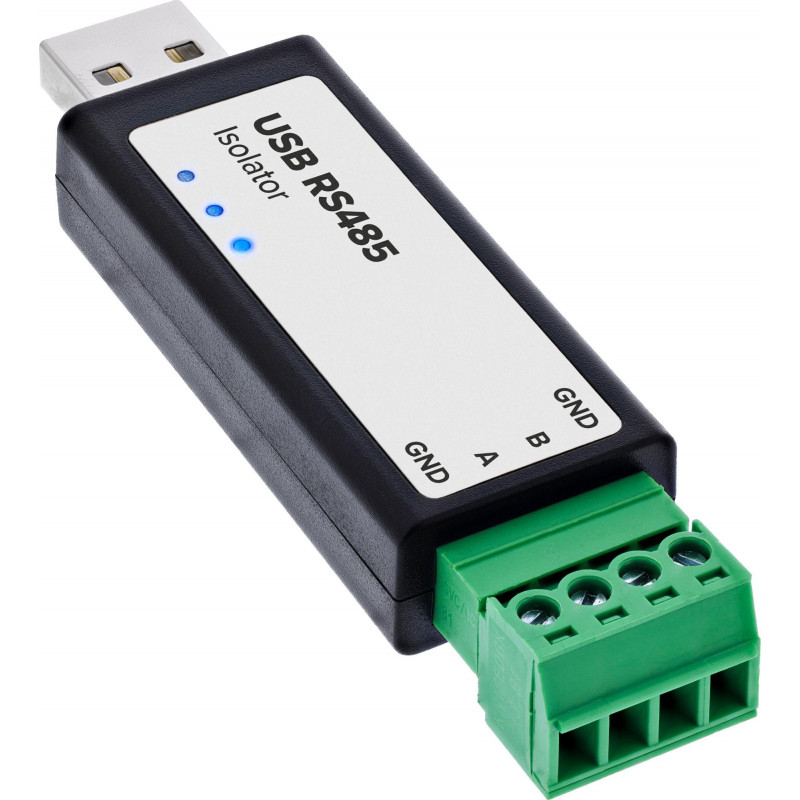

InLine® USB-sarjaportti RS485-muunnin erottimella, USB-A - 4-pin-liitin

The InLine® USB to Serial RS485 Converter with isolator connects a computer's USB-A port to RS485 devices and Modbus networks via a virtual COM port. It features galvanic isolation up to 2.5 kV, surge, lightning and ESD protection, and an integrated 120 Ω terminating resistor for reliable data transmission.

Key features

• Galvanic isolation up to 2.5 kV reduces potential differences and ground loops
• Surge, lightning and ESD protection guard against electrical interference
• Automatic direction switching in half-duplex mode, no software settings required
• FTDI FT232RNL chipset supports baud rates from 300 to 512,000 bps
• Integrated 120 Ω terminating resistor reduces signal reflections
• Supports Windows XP to Windows 11, Linux, macOS and Android
• Screw terminal ensures secure wiring; two GND terminals for ground connections or cable shielding

Specifications

• Brand: InLine
• MPN: 33307D
• Product type: USB to Serial Adapter
• Serial interface type: RS-485
• Chipset: FTDI FT232RNL
• Host connection: USB-A
• Device connection: RS485 screw terminal
• Pin configuration: GND, A, B, GND
• Baud rate: 300 to 512,000 bps
• Transmission mode: half-duplex with automatic direction switching
• Maximum RS485 cable length: up to approx. 1.2 km
• Maximum USB cable length: up to approx. 5 m
• Bus participants: up to 32 devices per bus segment
• Termination resistance: integrated 120 Ω
• Isolation voltage: up to 2.5 kV
• Lightning protection: 600 W surge and lightning protection
• ESD protection: up to 15 kV
• USB protection: 200 mA PTC fuse, ESD protection
• RS485 protection: TVS diode, protective diodes, overvoltage protection
• Status indicators: PWR, TXD, RXD
• Supported operating systems: Windows XP / 7 / 8 / 8.1 / 10 / 11, Linux, macOS, Android
• Operating temperature: -40 °C to +85 °C
• Humidity: 5 % to 95 % RH, non-condensing
• Side B: USB-A male
• Country of origin: China
