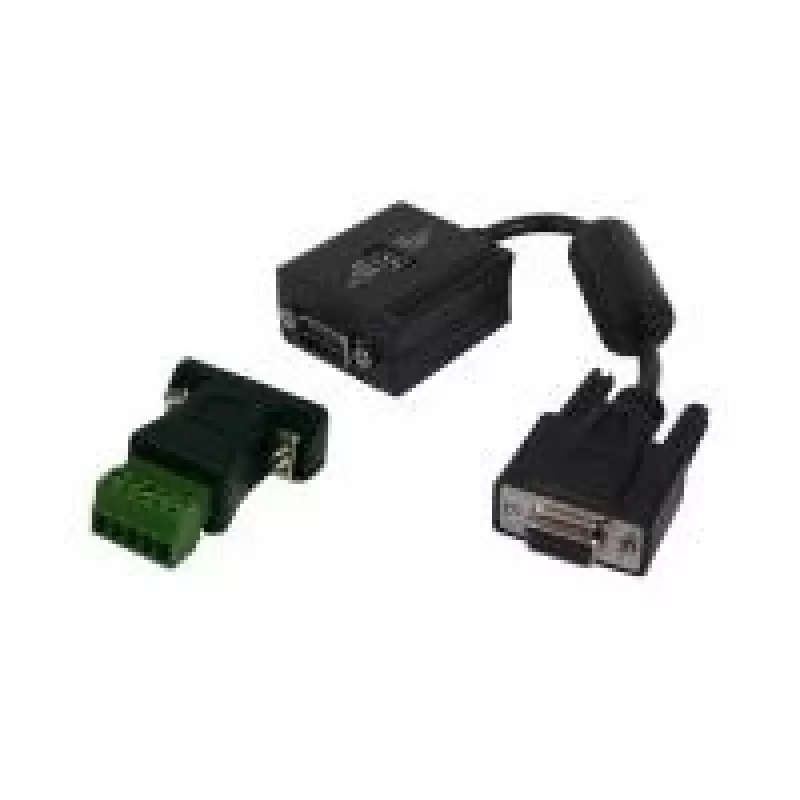

EXSYS EX-47900IS RS-232 – RS-422/RS-485 sarjamuunnin 2,5kV eristyksellä

Convert RS-232 signals to RS-422 or RS-485 with 2.5kV optical isolation, 15kV ESD protection, and 600W surge protection for reliable industrial communication.

Overview

The EXSYS EX-47900IS is a hardware-based serial converter that bridges RS-232 to RS-422 or RS-485 interfaces. It supports both 2-wire half-duplex and 4-wire full-duplex RS-485 modes, as well as RS-422 full-duplex. Automatic Data Direction Control (ADDC) eliminates the need for software handshaking.

What stands out

• 2.5kV optical isolation protects against ground loops and voltage spikes.
• 15kV ESD and 600W surge protection ensure robust operation.
• Supports data rates up to 115.2 Kbps and distances up to 1.2 km.
• DB9 female RS-232 connector and 5-pin terminal block for RS-422/485.
• LED indicators for power, transmit, and receive status.
• SECC metal housing with wall mount option; DIN-rail kit available separately.

Technical details

• Input interface: RS-232 (DB9 female)
• Output interface: RS-422, RS-485 (5-pin terminal block)
• Data modes: 2-wire RS-485 half-duplex, 4-wire RS-485 full-duplex, RS-422 full-duplex
• Data rate: up to 115.2 Kbps
• Isolation: 2.5 kV optical
• ESD protection: 15 kV
• Surge protection: 600W
• Automatic Data Direction Control (ADDC): Yes
• Transmission distance: up to 1.2 km (4000 ft)
• Power input: 9-12V DC (terminal block or DC jack)
• Power consumption: < 1W
• Operating temperature: -20°C to 70°C
• Housing material: SECC metal
• Mounting options: wall mount, optional DIN-rail kit
• LED indicators: power, transmit (Tx), receive (Rx)
• OS compatibility: OS independent (hardware converter)
• Certifications: CE, FCC, RoHS

Our verdict

A rugged and reliable serial converter for industrial environments, offering strong isolation and protection in a compact metal housing.
