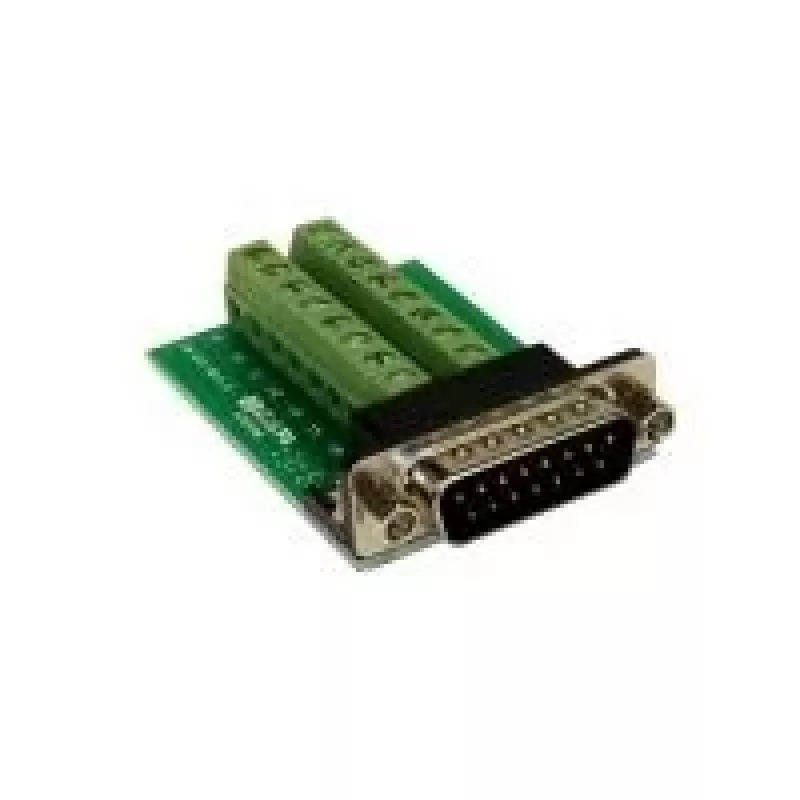

EXSYS EX-49010 15-pin D-SUB -liitin 16-pin ruuviliitinrimaan -adapteri, vihreä/hopea

The EXSYS EX-49010 is a practical adapter that converts a 15-pin D-SUB female connector into a 16-pin screw terminal block, making it easy to connect field wiring to legacy D-SUB interfaces without soldering. Its 1:1 pinout and generous terminal spacing suit industrial control, data acquisition, and prototyping tasks where quick, reliable connections are needed.

Highlights

• Direct 1:1 pin mapping between D-SUB and terminal block
• Supports wire gauges from 12 to 24 AWG
• Rated for up to 300 V and 10 A per pin
• Nickel-plated steel D-SUB shell with green ABS terminal housing
• Panel-mount holes for secure installation

In daily use

This adapter simplifies wiring changes and troubleshooting. The screw terminals accept a wide range of wire sizes, and the panel-mount option lets you fix the adapter in place for permanent installations. The green terminal block contrasts clearly with the silver D-SUB shell, aiding identification in dense control panels.

Full specifications

• Connector 1: D-SUB, 15-pin, female
• Connector 2: Screw terminal block, 16-pin
• Pinout: 1:1 direct connection
• Wire gauge: 12–24 AWG
• Max. voltage: 300 V
• Max. current: 10 A per pin
• Mounting: Panel-mount holes, free-standing
• Housing material: ABS plastic
• Terminal block colour: Green
• D-SUB shell material: Nickel-plated steel
• Operating temperature: -20°C to 85°C

Final note

The EX-49010 is a straightforward, durable solution for adapting D-SUB connections to screw terminals in industrial and prototyping environments.
