EXSYS EX-49052 DisplayPort-liitin 20-pin ruuviliitinrimaan sovitin

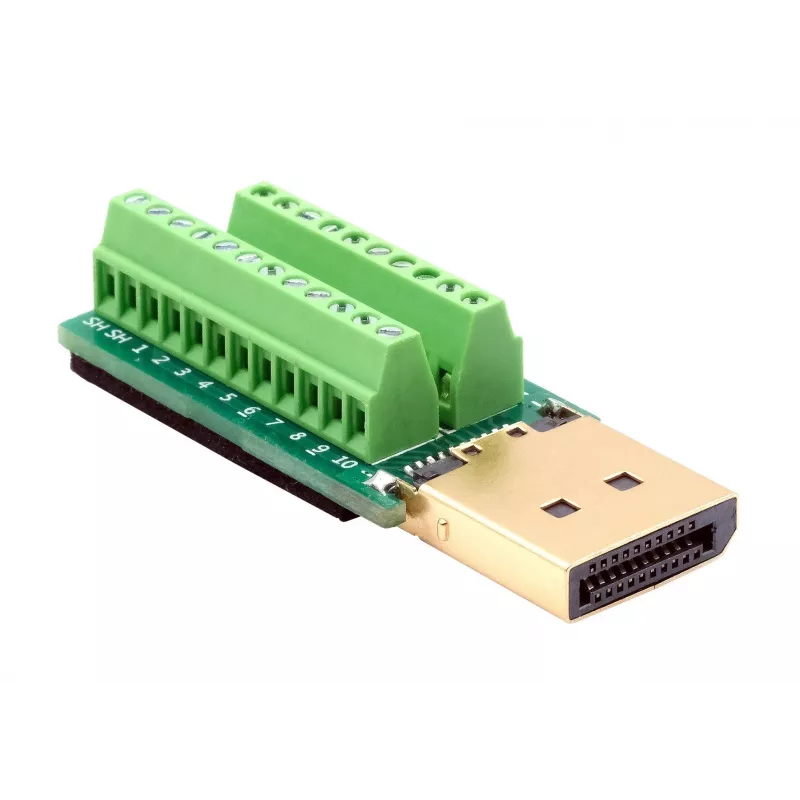

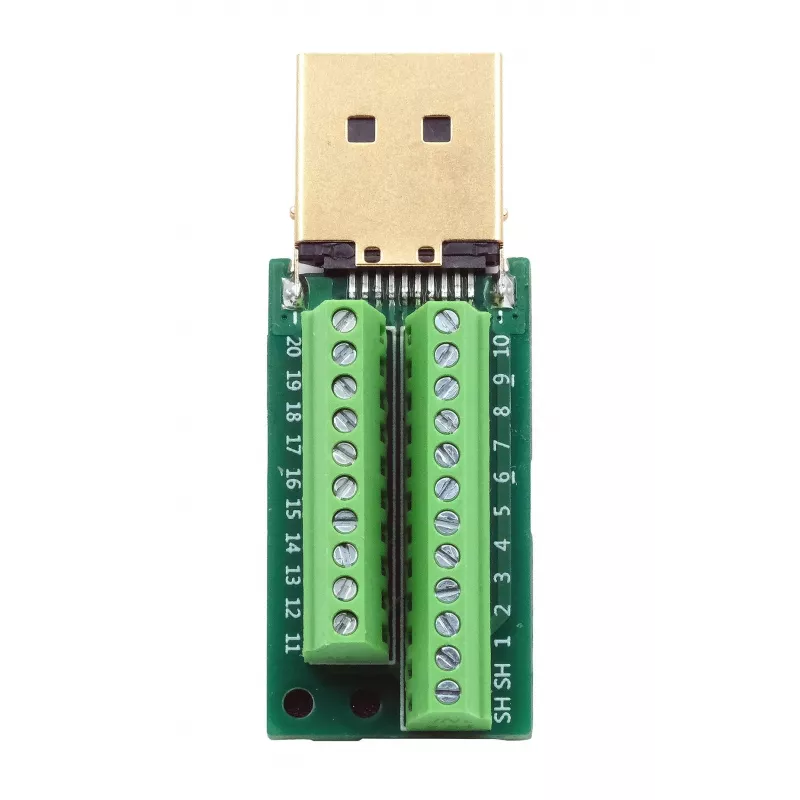

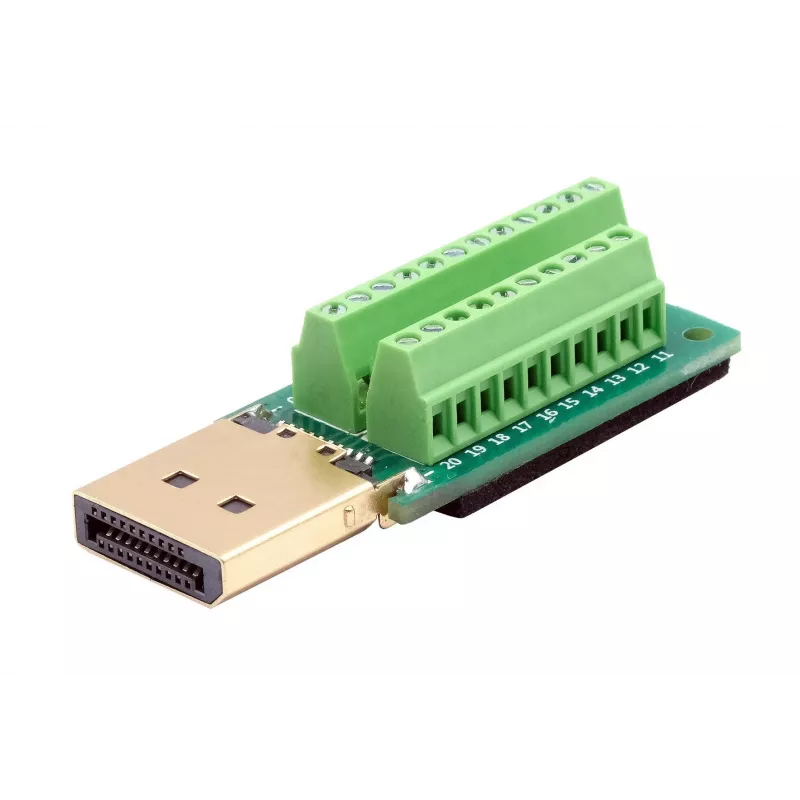

Signal breakout adapter that converts a 20-pin DisplayPort male connector to a 20-pin screw terminal block, giving direct access to every DisplayPort pin for custom wiring, prototyping, and industrial applications.

Advantages

All 20 DisplayPort pins are brought out to clearly labelled screw-down terminals, allowing secure, solderless connections. The free-hanging design fits easily into test setups and permanent installations where a standard DisplayPort cable is not practical.

Suitable for

• Industrial signal integration and control systems
• Prototyping and custom cable assembly
• Repair and diagnostic work on DisplayPort links
• Educational labs and electronics workbenches

Key specifications

• Connector 1: DisplayPort male, 20-pin
• Connector 2: Screw terminal block, 20-pin
• Housing material: Plastic
• Colour: Black
• Mounting: Free-hanging

Recommendations

Use this adapter when you need to break out DisplayPort signals to individual wires for testing, custom equipment, or non-standard installations. Ensure all screw terminals are properly tightened to avoid signal loss.
