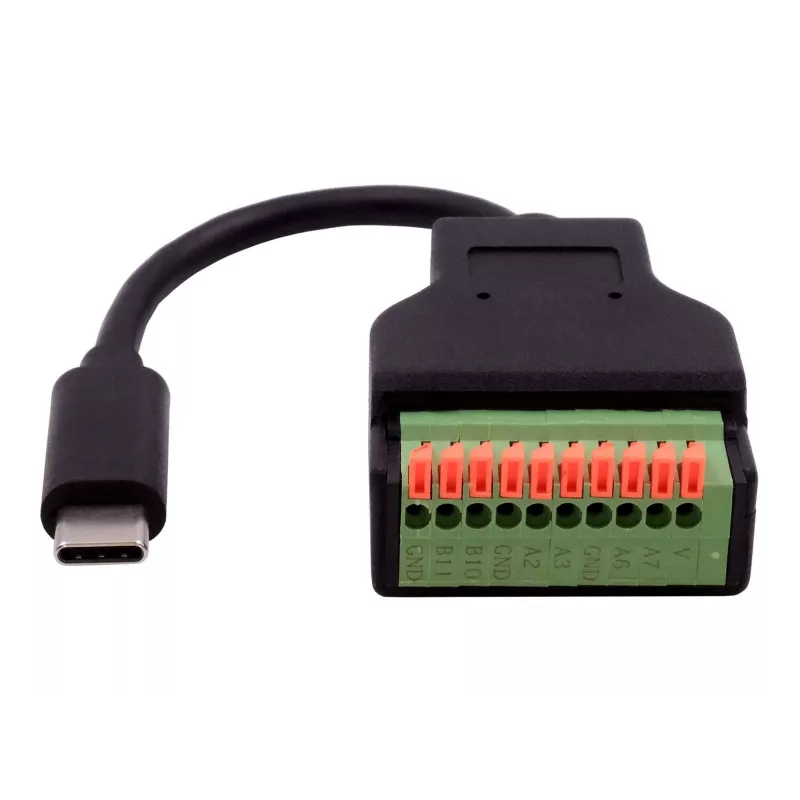

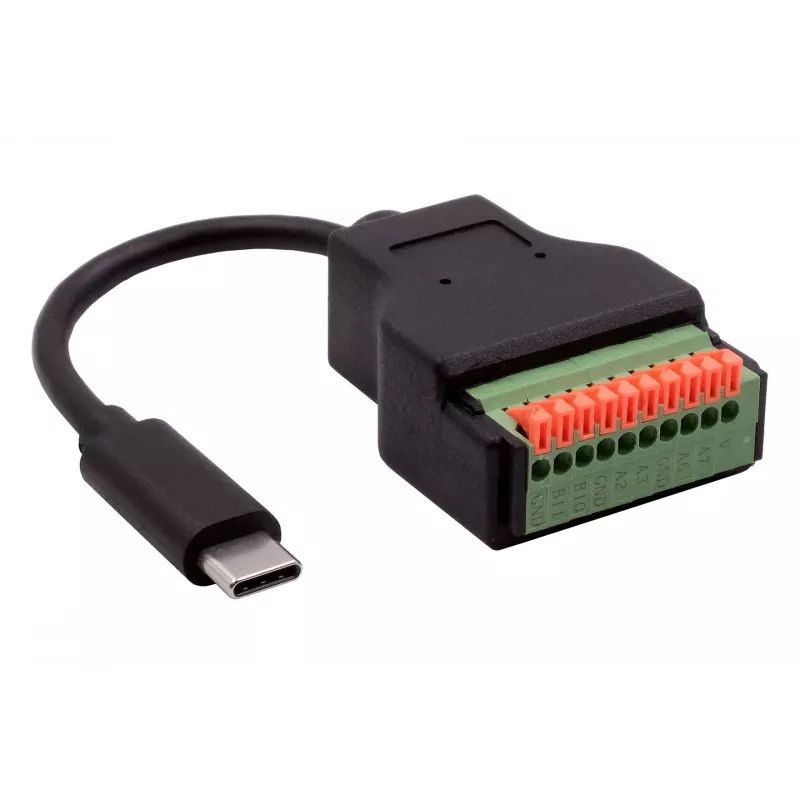

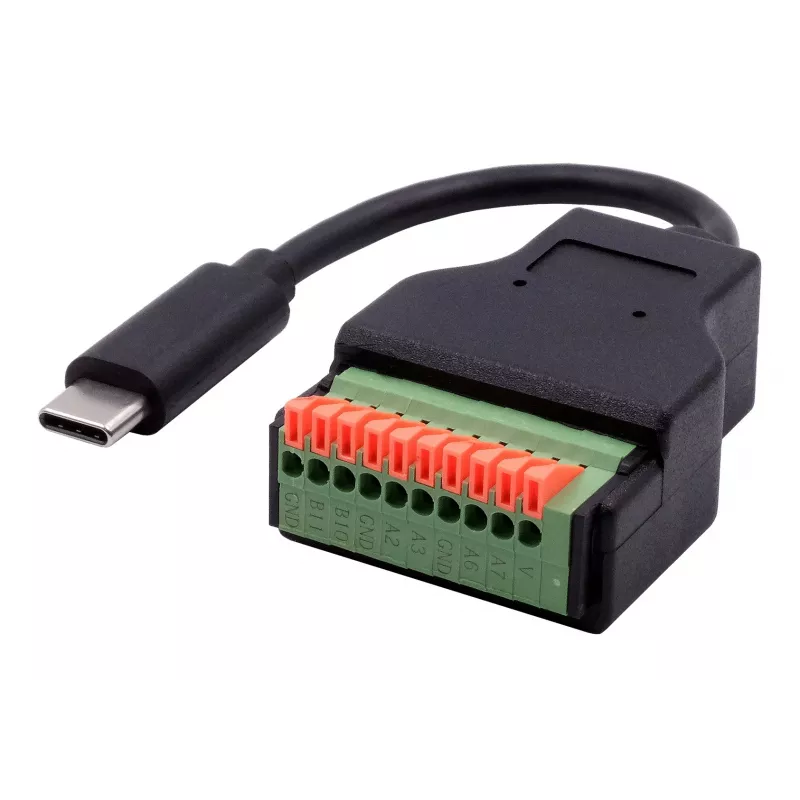

EXSYS EX-49125 USB-C-pistoke 10-pin riviliitin -adapterikaapeli painonapilla, 15 cm, USB 3.2 Gen 1

Industrial and prototyping environments often need a reliable way to connect USB-C devices to custom wiring, sensors, or embedded systems. The EXSYS EX-49125 adapter cable solves this by converting a USB-C male connector to a 10-pin screw terminal block, enabling direct wire termination without soldering. An integrated push button adds simple control or reset functionality directly on the cable.

Who is it for

Engineers, technicians, and makers working on industrial automation, prototyping, or custom device connectivity who require a robust, screw-terminal interface for USB signals and power.

Main features

• USB-C male to 10-pin screw terminal block
• Supports USB 3.2 Gen 1 data rates up to 5 Gbps
• Integrated push button for control or reset
• 15 cm cable length for flexible placement
• Nickel-plated connectors and ABS terminal housing

Specifications

• Connector 1: USB-C Male
• Connector 2: 10-pin Screw Terminal Block
• USB Standard: USB 3.2 Gen 1
• Data Transfer Rate: Up to 5 Gbps
• Backward Compatibility: USB 3.0, USB 2.0, USB 1.1
• Cable Length: 15 cm
• Terminal Block Pin Count: 10
• Terminal Block Type: Screw Terminal
• Pinout: VBUS, GND, D+, D-, SS_TX+, SS_TX-, SS_RX+, SS_RX-, CC1, Button
• Power Delivery Support: Yes (via VBUS/GND pins)
• Connector Plating: Nickel-plated
• Housing Material: Plastic (ABS)
• Colour: Black
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -20°C to 80°C
• Operating Humidity: 5% to 95% RH (non-condensing)

Tips

Ensure proper torque on terminal screws to maintain reliable connections in high-vibration environments. The push button can be wired to a GPIO or reset line for convenient manual control.
