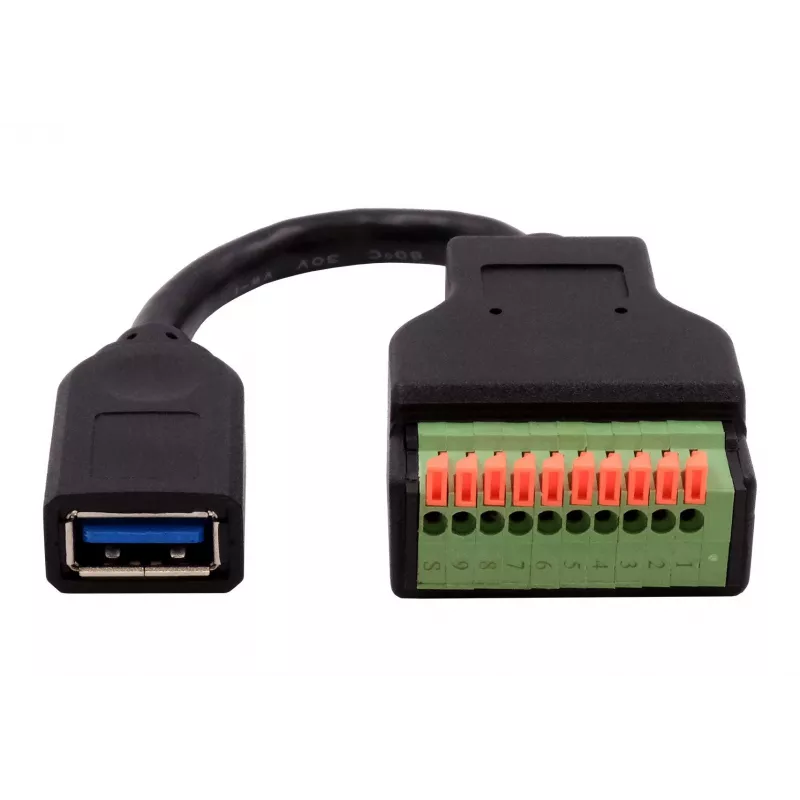

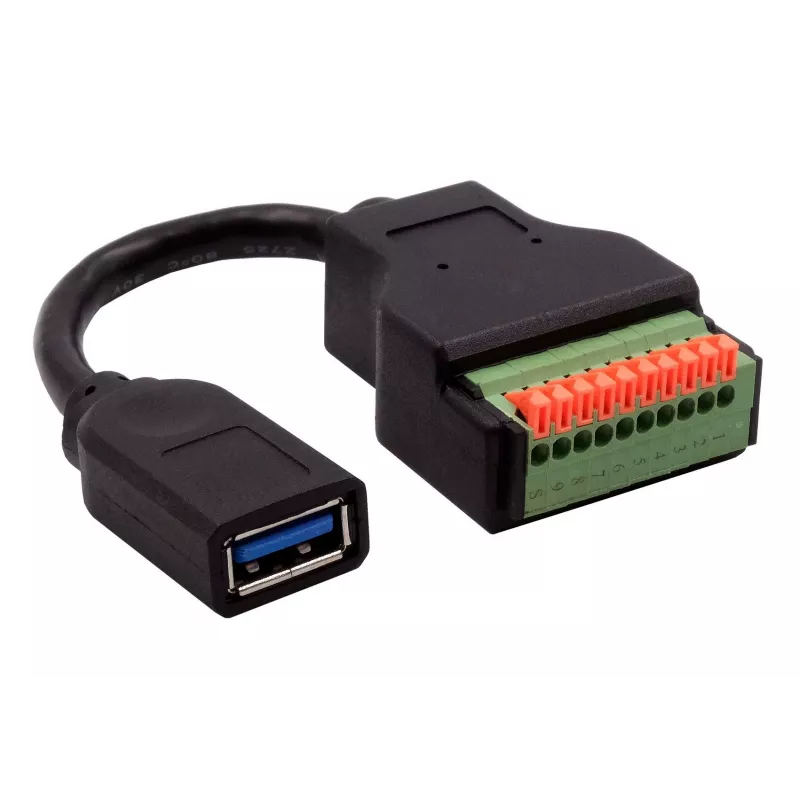

EXSYS EX-49126 USB-A naaras - 10-pin riviliitin sovitinkaapeli painonapilla, USB 3.2 Gen 1, 15 cm

Transfer data at up to 5 Gbps with this USB 3.2 Gen 1 adapter cable, featuring a USB-A female port on one end and a 10-pin screw terminal block on the other. The integrated push button allows manual control of the USB connection, making it suitable for industrial and embedded applications.

Overview

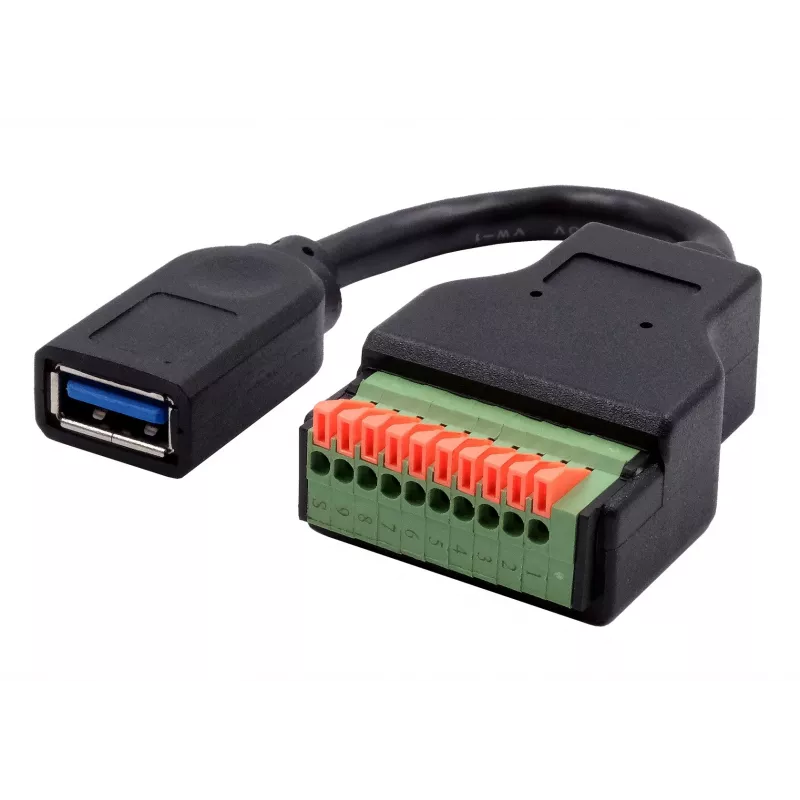

The EXSYS EX-49126 provides a simple way to connect custom USB wiring to a standard USB-A host. The 15 cm cable is terminated with a 10-pin terminal block, giving access to VBUS, D-, D+, GND, RX-, RX+, TX-, TX+, GND, and VBUS. The push button can be used to interrupt or toggle the data link as needed.

What stands out

• USB 3.2 Gen 1 support with SuperSpeed data rates up to 5 Gbps
• Integrated push button for manual connection control
• 10-pin screw terminal block for secure custom wiring
• Compact 15 cm length for tight installations

Technical details

• Connector 1: USB Type-A female
• Connector 2: 10-pin screw terminal block
• USB standard: USB 3.2 Gen 1 (USB 3.0 / USB 3.1 Gen 1)
• Data transfer rate: up to 5 Gbps
• Cable length: 15 cm
• Colour: black
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)

Our verdict

A practical adapter for prototyping and industrial use, with the added convenience of a push button for quick connection control.
