EXSYS EX-49166 D-tyypin USB-C-liitin pistokkeeseen -adapterikaapeli, USB 3.2 Gen 2, 20 cm, musta

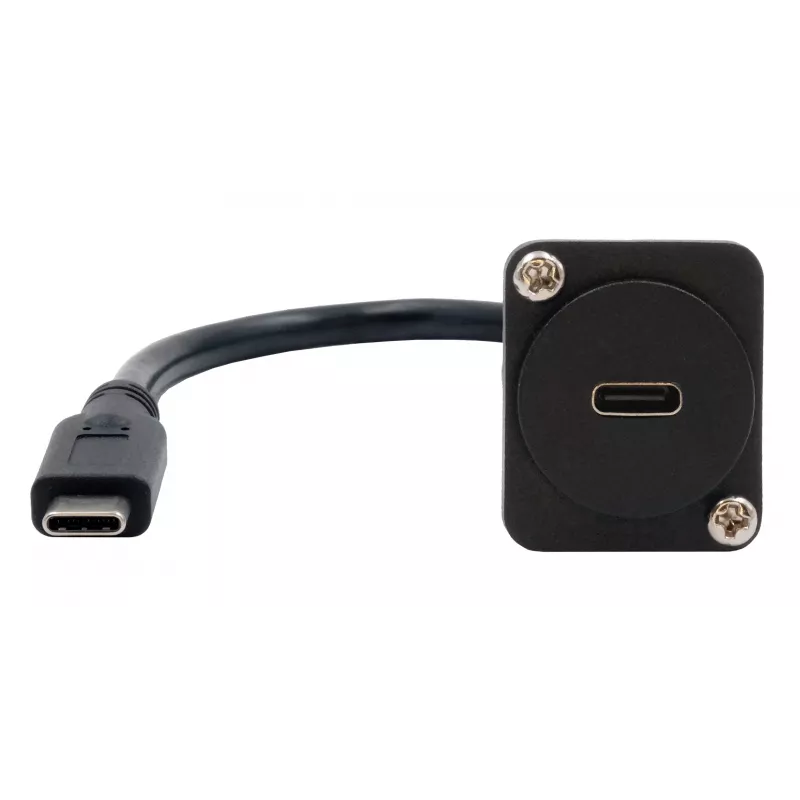

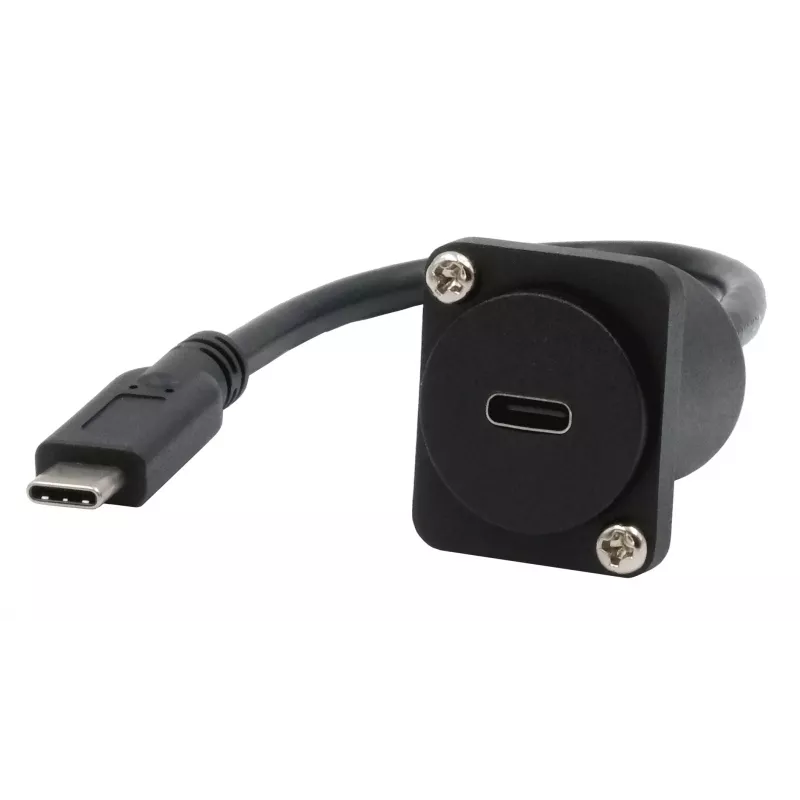

The EXSYS EX-49166 is a D-Type panel-mount USB-C adapter cable that converts a panel-mounted USB-C female port to a standard USB-C male connector, enabling easy access to USB 3.2 Gen 2 connectivity from a chassis or enclosure. With a compact 20 cm length, it is ideal for installations where a short, reliable link is required.

Highlights

• USB-C female (D-Type panel mount) to USB-C male
• Supports USB 3.2 Gen 2 data transfer up to 10 Gbps
• Power Delivery up to 100 W (20V/5A)
• DisplayPort Alternate Mode for video output
• Double shielded for signal integrity

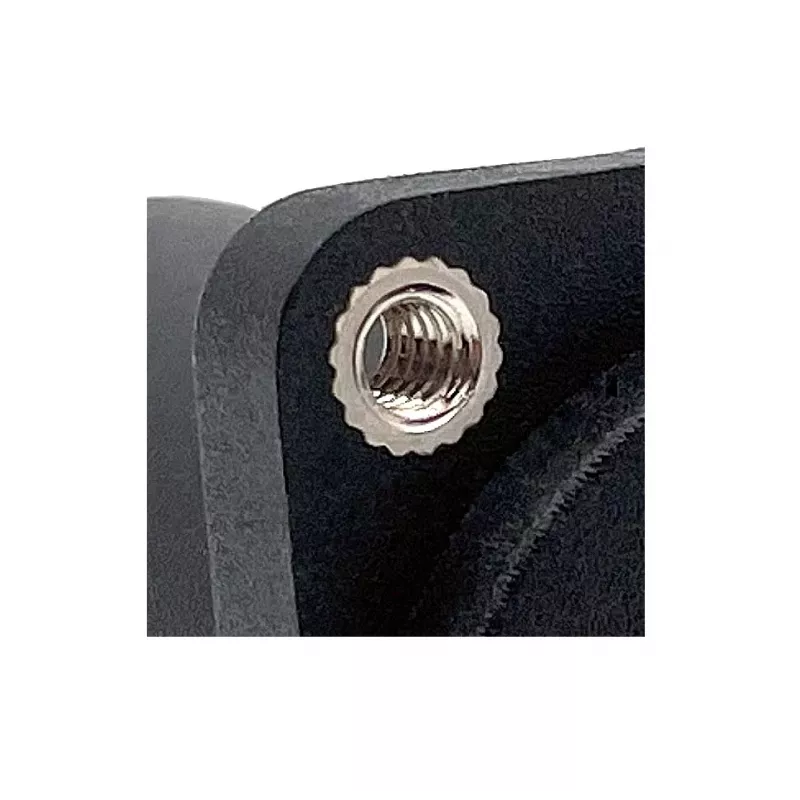

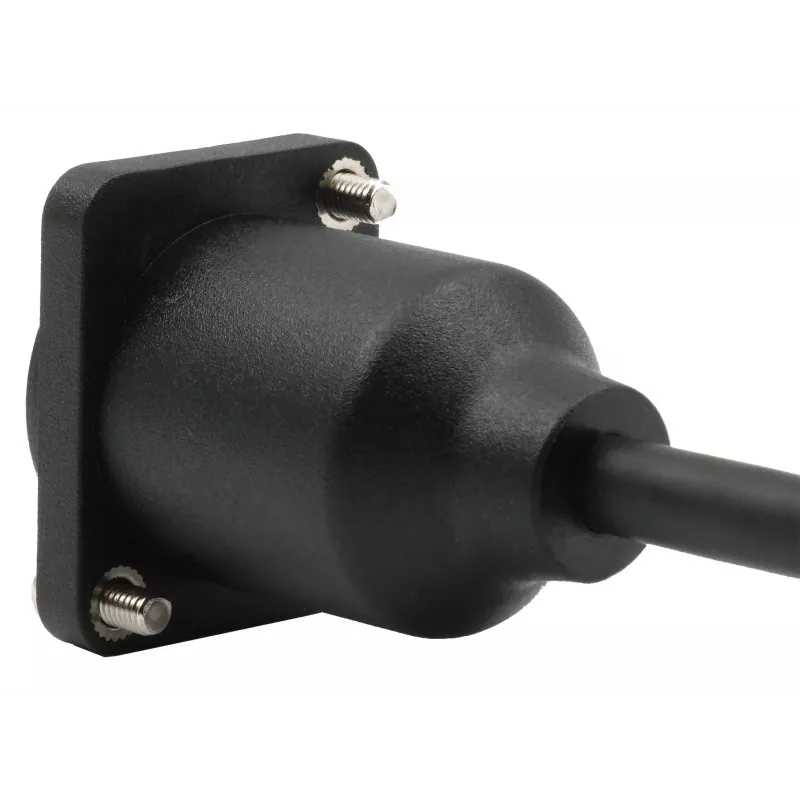

• Metal panel-mount housing with two mounting holes

In daily use

The EX-49166 allows you to extend a USB-C port from a device or panel to a more accessible location. The D-Type panel mount provides a secure, professional installation, while the 20 cm cable offers flexibility in positioning. Backward compatible with USB 3.1 Gen 1 and USB 2.0, it works with a wide range of devices.

Full specifications

• Connector 1: USB-C male
• Connector 2: USB-C female (D-Type panel mount)
• USB standard: USB 3.2 Gen 2
• Data transfer rate: 10 Gbps
• Cable length: 20 cm
• Power Delivery: up to 100 W (20V/5A)
• Video output: DisplayPort Alternate Mode
• Colour: Black
• Shielding: Double shielded
• Housing material (panel mount): Metal
• Cable jacket material: PVC
• Backward compatibility: USB 3.1 Gen 1, USB 2.0
• Plug & Play: Yes

Final note

Reliable and durable, the EXSYS EX-49166 is a practical solution for extending USB-C connectivity in professional and industrial settings.
